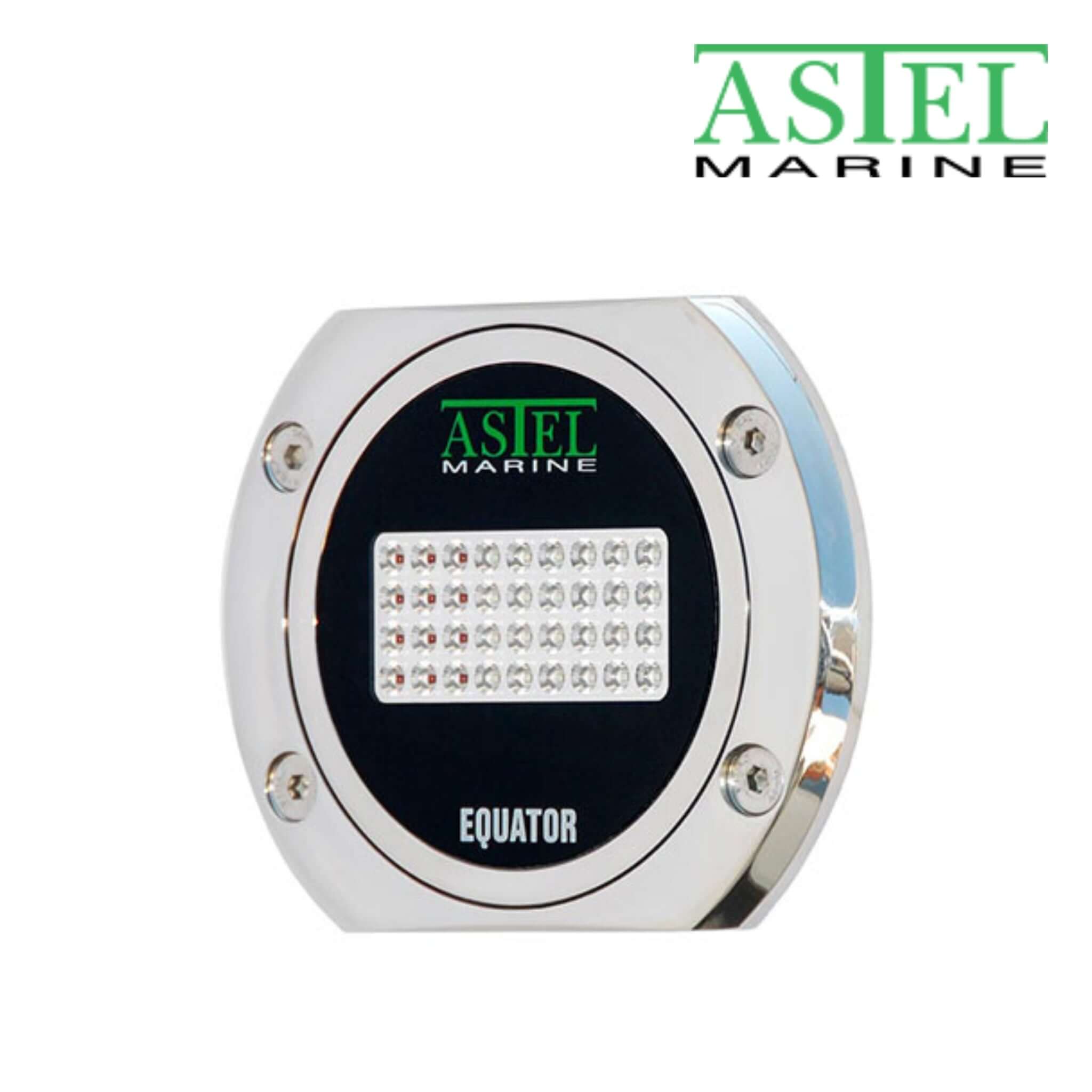

Astel Marine Equator Series Underwater LED Boat Lights

Astel Marine Equator Series Underwater LED Lights

The Astel Marine EQUATOR Series is an ultra-thin, surface-mount underwater LED lighting solution engineered for sleek performance and easy installation. Designed with a built-in driver and patented housing system, EQUATOR lights mount directly to the stern or hull sides below the waterline with minimal drilling required. At just 0.39 inches thick and requiring a maximum through-hull hole diameter of only 2/5 inch, these lights deliver powerful illumination without compromising hull integrity or aesthetics.

Compact, durable, and marine-ready, the EQUATOR Series is ideal for enhancing nighttime visibility, creating stunning underwater glow effects, and elevating your vessel’s overall appearance.

Ultra-Thin Surface-Mount Design

The EQUATOR Series features a low-profile body measuring only 0.39 inches thick. This streamlined design minimizes drag and preserves the clean lines of your hull. Installation is simplified with a small 2/5 inch maximum hole requirement, reducing structural impact and making retrofit applications easier.

Built-in driver technology eliminates the need for external components, providing a cleaner installation and improved long-term reliability.

Available Models

EQUATOR MSR0640

• Power Consumption: Max. 10W
• Luminous Flux: Up to 1,200 lumens (white)
• Dimensions: 3.9 × 2.72 × 0.39 inches
• Weight: 0.66 lbs
• Recommended Boat Length: Up to 25 ft

EQUATOR MSR1280

• Power Consumption: Max. 18W
• Luminous Flux: Up to 2,400 lumens (white)
• Dimensions: 4.69 × 3.5 × 0.39 inches
• Weight: 0.88 lbs
• Recommended Boat Length: Up to 40 ft

EQUATOR MSR36240

• Power Consumption: Max. 51.5W
• Luminous Flux: Up to 7,200 lumens (white)
• Dimensions: 5.47 × 4.29 × 0.39 inches
• Weight: 1.32 lbs
• Recommended Boat Length: 65 ft and over

Color Options

All EQUATOR models are available in:

• Single Color: White or Blue
• Multi-Color: RGB, WGB, or RGBW

This flexibility allows you to customize your vessel’s underwater lighting to match your style, event atmosphere, or navigation visibility needs.

Engineered for Marine Durability

The EQUATOR Series is built to withstand harsh marine environments, delivering reliable performance below the waterline. Its compact, robust construction ensures long-term operation while maintaining maximum brightness and efficiency.

Whether installed for functional illumination or dramatic nighttime aesthetics, Astel Marine EQUATOR underwater LED lights provide powerful output in an exceptionally slim and modern form factor.

Multi-Color Control & Rainbow Spectrum

The multi-color EQUATOR underwater LED lights allow manual or automatic color changes across the full rainbow spectrum. Easily adjust lighting with a simple momentary switch to create vibrant underwater effects for yachts, sport boats, and tenders.

Built-In Microprocessor & DMX512 Support

An integrated microprocessor enables synchronized control and dimming of multiple marine underwater lights. The system also supports DMX512 network control for advanced yacht lighting installations.

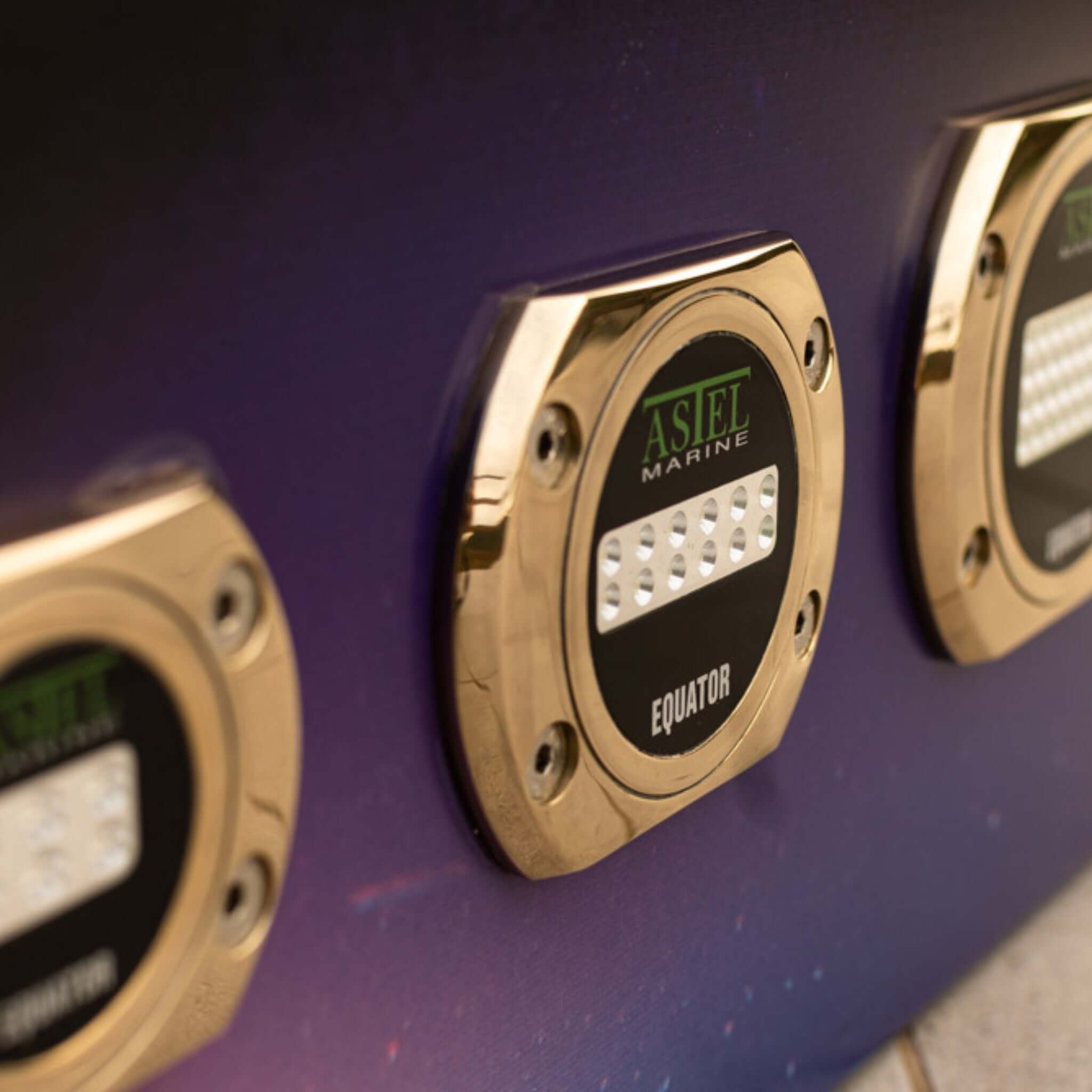

Marine-Grade Housing Options

Available in aluminium bronze AB2 or stainless steel casings, these underwater LED lights are built to withstand harsh saltwater environments while maintaining long-term durability below the waterline.

High-Efficiency Cree LED Technology

Powered by high-efficiency Cree LEDs and a polycarbonate optical window, the EQUATOR Series delivers strong luminous output with reduced power consumption, making it ideal for boats of all sizes.

Easy Surface-Mount Installation

Designed for quick installation, each light requires just four mounting screws and a small cable entry hole, minimizing hull drilling while preserving structural integrity.
