Ashland PS33W 1/3 HP Thermoplastic Submersible Sump Pump - Wide-Angle Float, 115V | PS33W1-10
Pickup, delivery and shipping times are estimates, not guarantees.
Couldn't load pickup availability
● 14 in stock30-day returns Secure checkout
Store Availability
Checking store stock…
Choose store pickup at checkout. Usually ready in 1–3 hours during store hours. Not at your store? We can transfer it there, usually in a couple of days.
Have a question about this part?
Ask about fit, specs or shipping and get an instant answer.
Goes with this part
CA P65 Warning: Cancer and reproductive harm. www.p65warnings.ca.gov

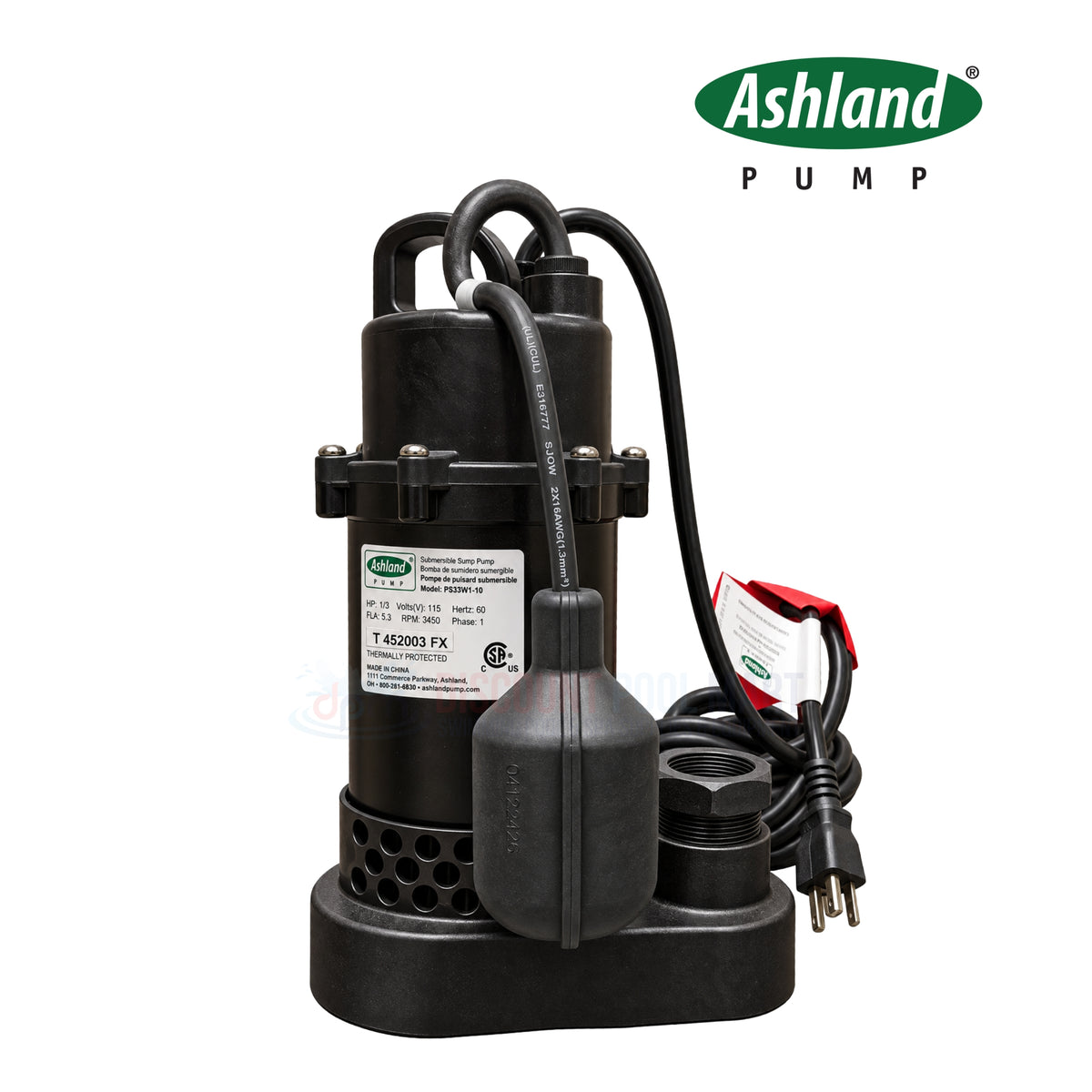

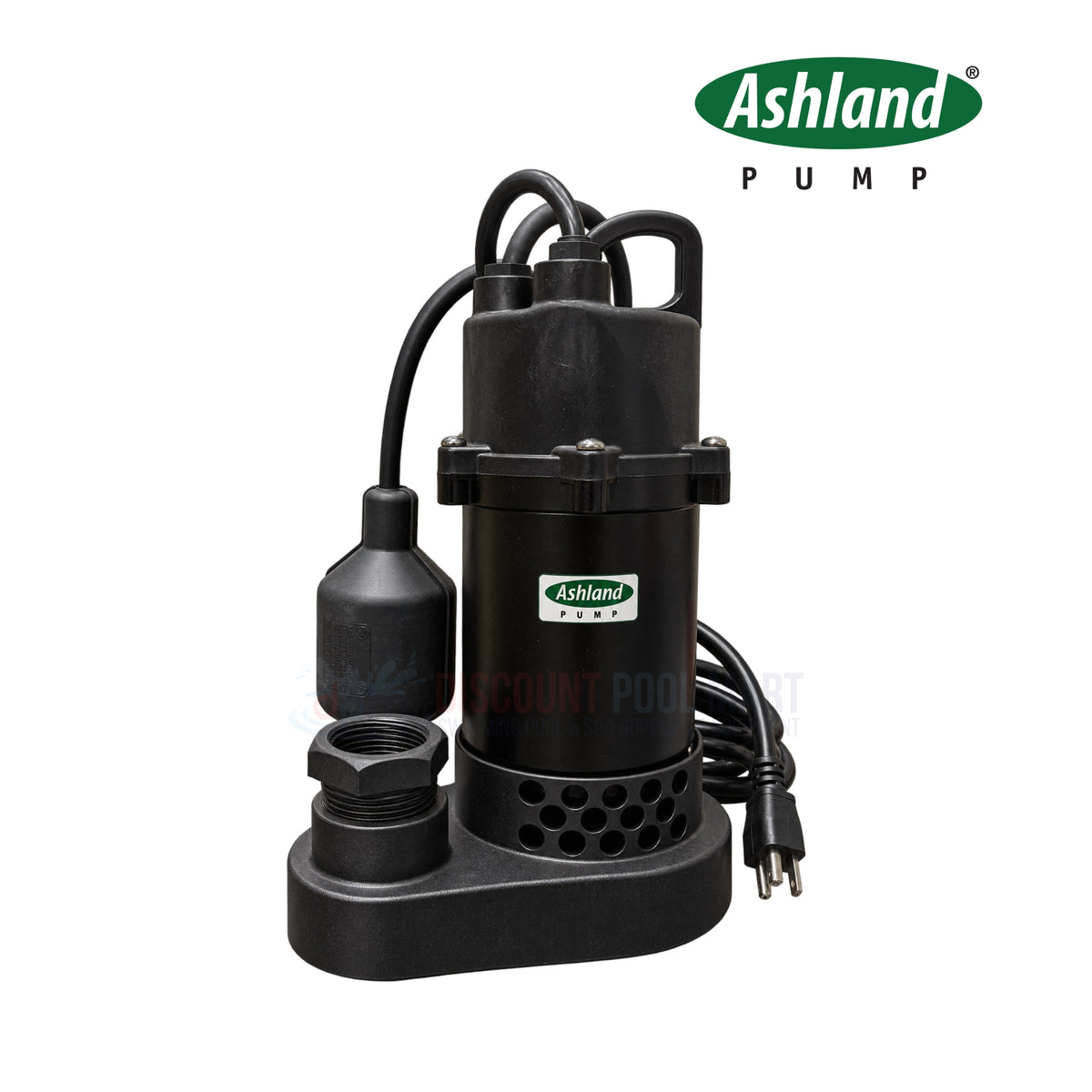

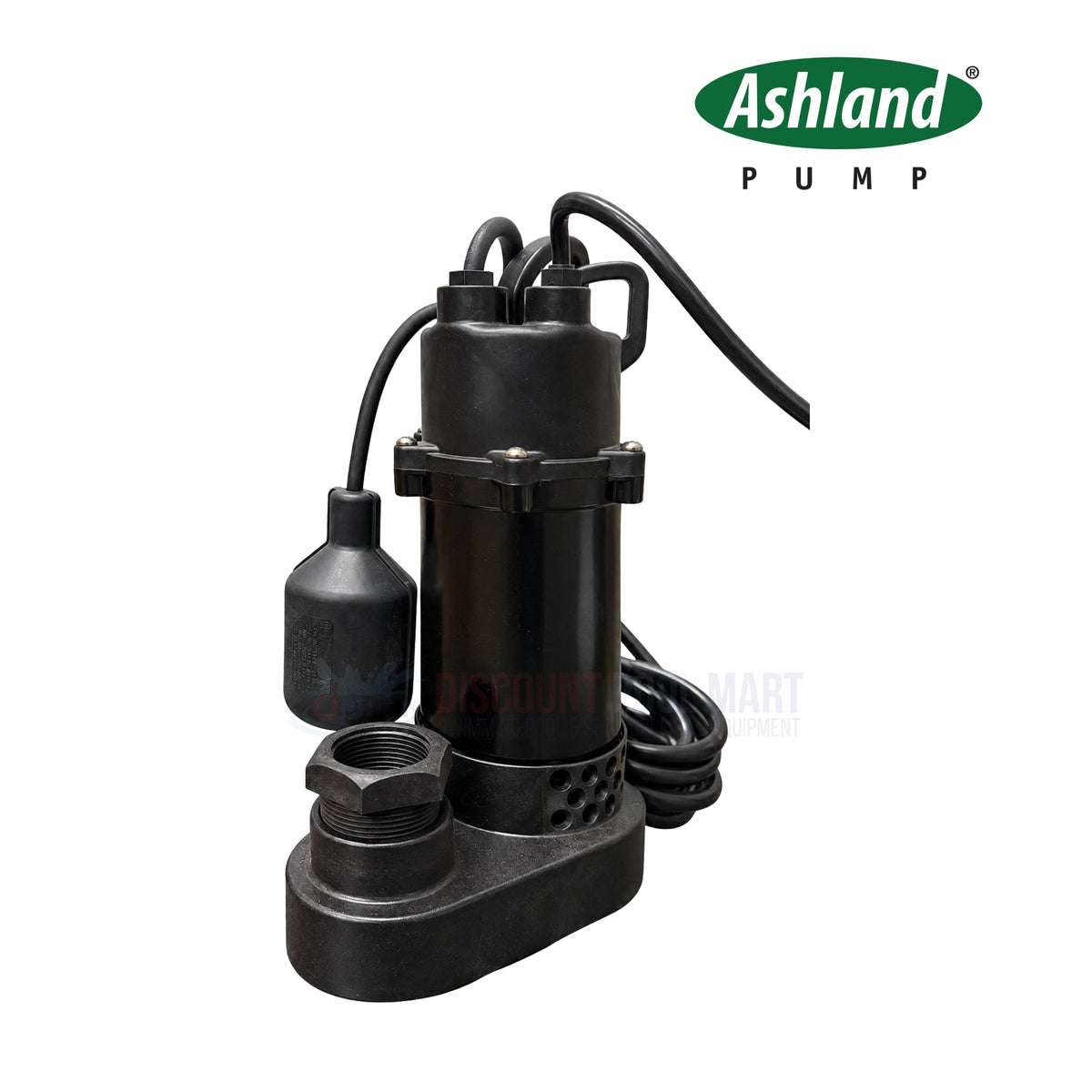

Automatic pumping with a wide-angle float. The Ashland PS33W (PS33W1-10) is a 1/3 HP thermoplastic submersible sump pump that uses a wide-angle tethered float switch - the float swings out and back around the pump to switch it on and off, which suits wider basins. Its piggyback plug lets you unplug the float and run the pump manually when you need to. Corrosion-resistant thermoplastic build with an aluminum motor housing.
- Automatically pumps water from sump pits, drained pools, vaults, or flooded areas.
- 1/3 HP moves up to 58 GPM with up to 22 ft of lift (max head).
- Wide-angle tethered float switch, ideal for wider basins; piggyback plug allows manual operation.
- Motor: 1/3 HP, 115V, continuous-duty PSC
- Max flow: 58 GPM; max head: 22 ft

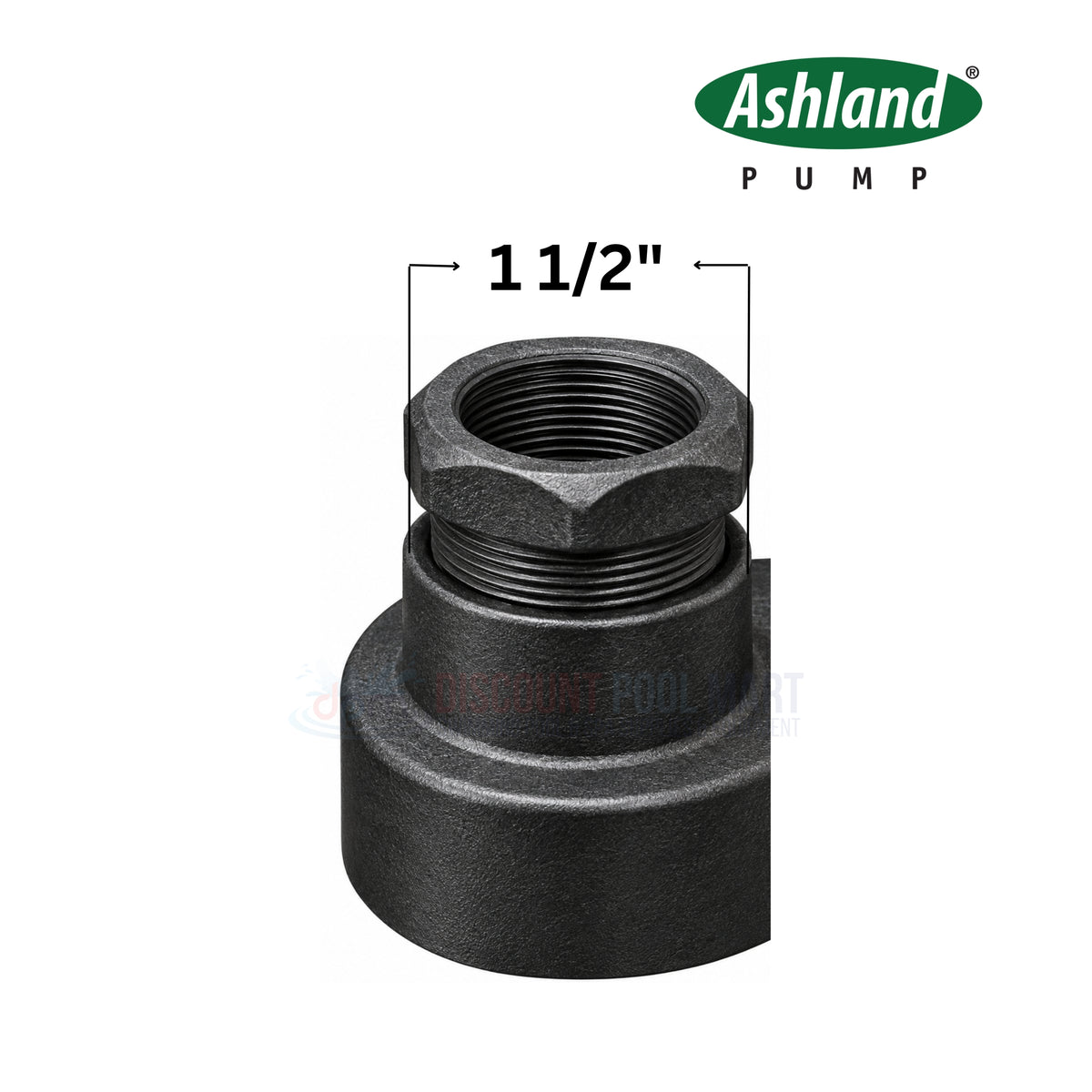

- Discharge: 1-1/2 in.
- Passes solids up to 3/8 in.
- Switch: wide-angle tethered float with piggyback plug (automatic or manual)
- Power cord: 10 ft
- Corrosion-resistant thermoplastic volute; aluminum motor housing; vortex impeller
- Set the pump flat on the bottom of the sump pit or basin, leaving room for the float to swing freely.
- Connect a 1-1/2 in. discharge pipe or hose and route it to drain.
- Plug into a grounded 115V outlet (GFCI recommended). Leave the float plugged into the piggyback for automatic operation, or bypass it to run manually.
- Keep the intake and float path clear of debris.
- PS33V uses a vertical float switch - compact, good for narrow pits.
- PS33W uses a wide-angle tethered float - better for wider basins - and allows manual operation via its piggyback plug.
