Ashland PS33V 1/3 HP Thermoplastic Submersible Sump Pump - Vertical Float, 115V | PS33V1-10
Pickup, delivery and shipping times are estimates, not guarantees.
Couldn't load pickup availability
● 17 in stock30-day returns Secure checkout
Store Availability
Checking store stock…
Choose store pickup at checkout. Usually ready in 1–3 hours during store hours. Not at your store? We can transfer it there, usually in a couple of days.
Have a question about this part?
Ask about fit, specs or shipping and get an instant answer.
Goes with this part
CA P65 Warning: Cancer and reproductive harm. www.p65warnings.ca.gov

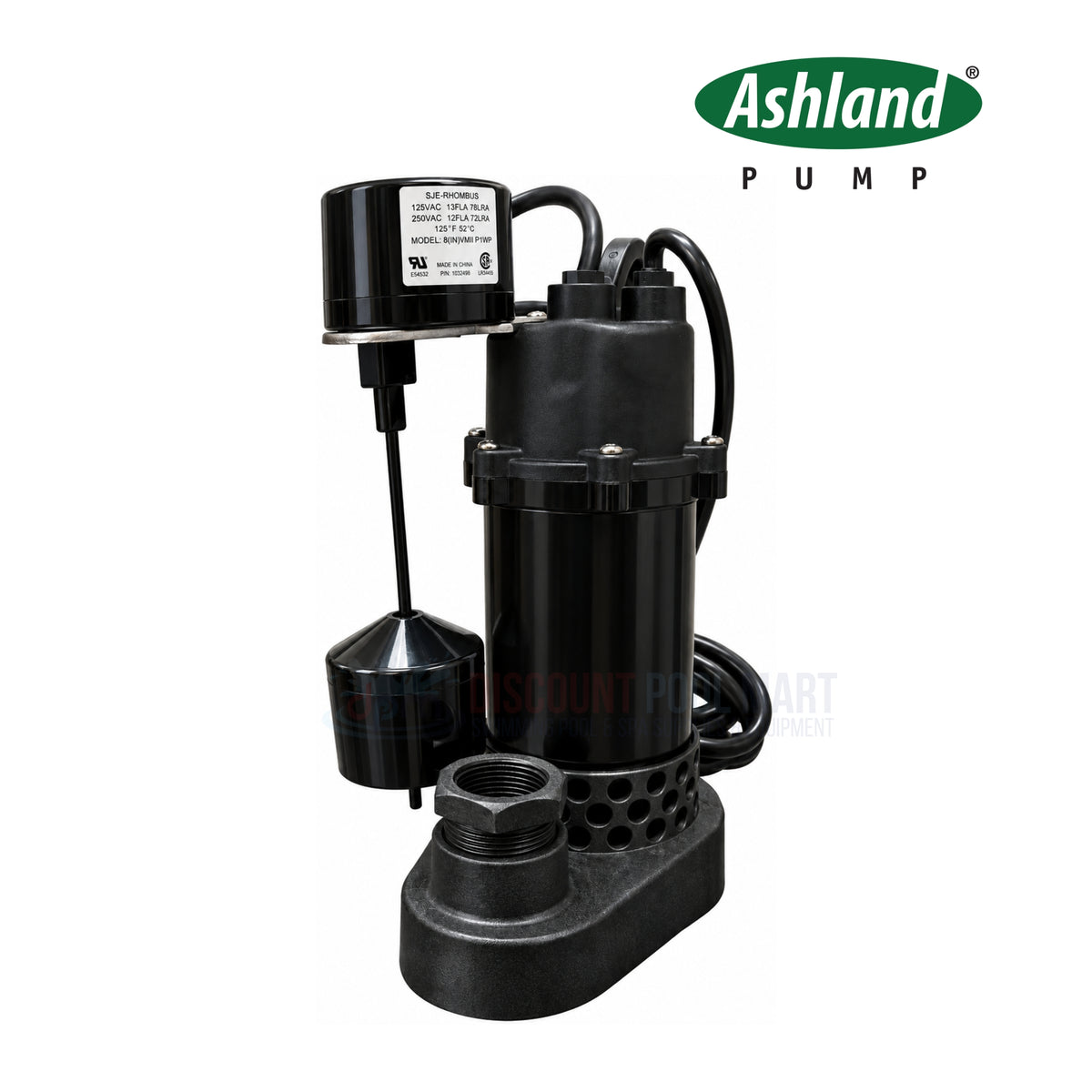

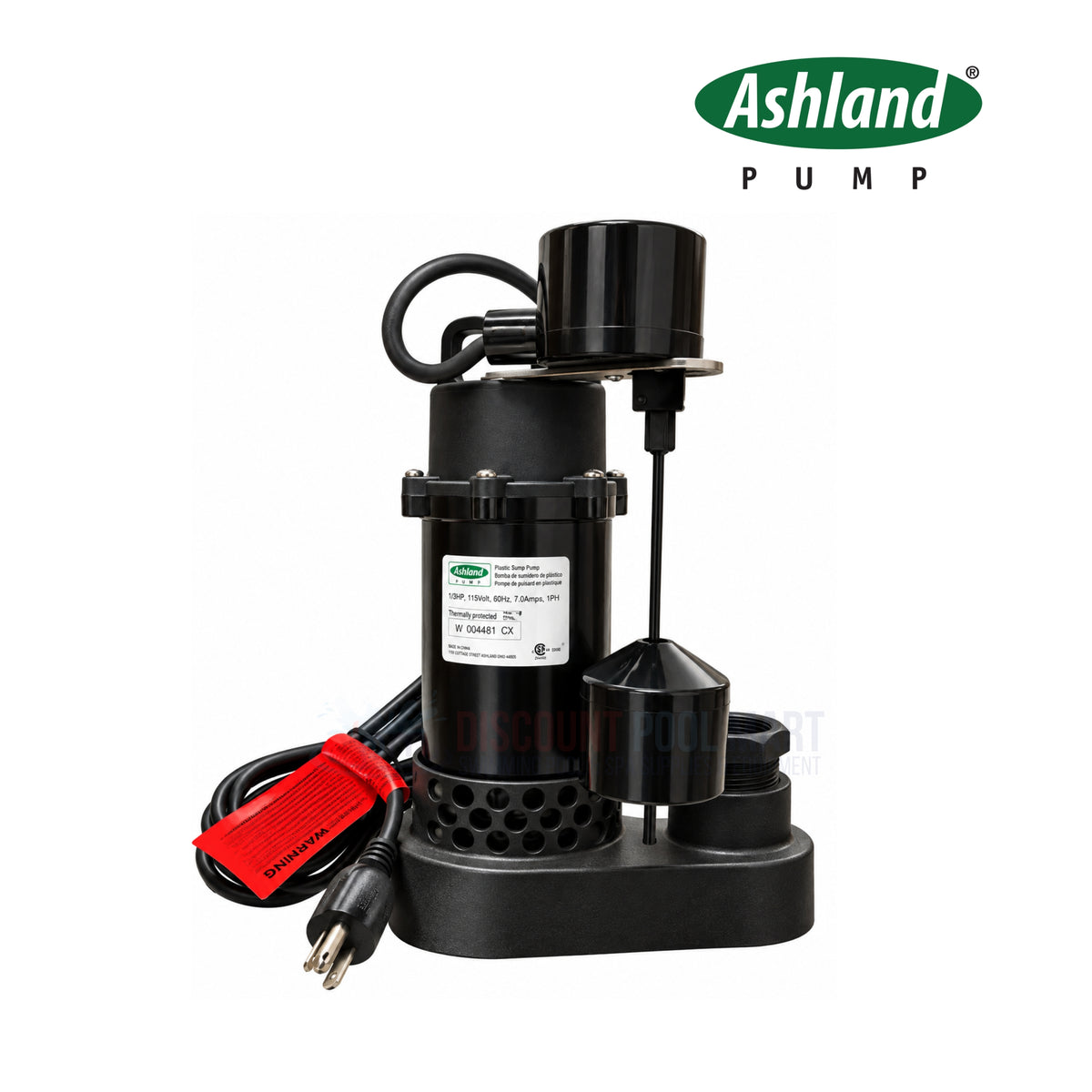

Move standing water fast and automatically. The Ashland PS33V (PS33V1-10) is a 1/3 HP thermoplastic submersible sump pump that switches itself on and off with a vertical float, so it clears a sump pit, drained pool, or flooded low spot without you watching it. Corrosion-resistant thermoplastic construction and an aluminum motor housing make it a durable, dependable workhorse.
- Automatically pumps water out of sump pits, drained pools, equipment vaults, or flooded areas.
- 1/3 HP moves up to 58 GPM with up to 22 ft of lift (max head).
- Vertical float switch turns the pump on and off automatically.
- Motor: 1/3 HP, 115V, continuous-duty
- Max flow: 58 GPM; max head: 22 ft

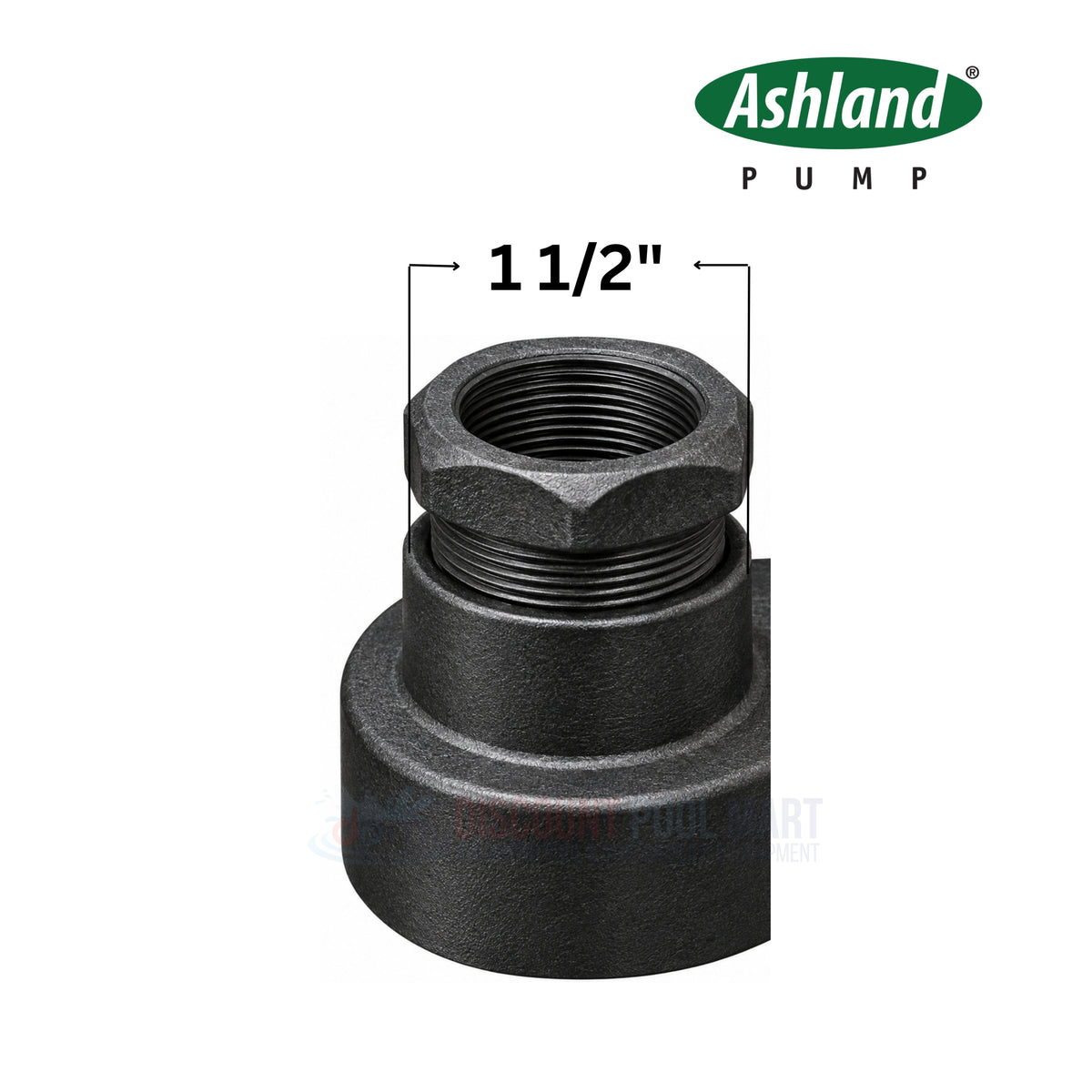

- Discharge: 1-1/2 in.
- Passes solids up to 3/8 in.
- Switch: vertical float (automatic)
- Power cord: 10 ft
- Fits basins and pits as small as 11 in. in diameter
- Corrosion-resistant thermoplastic volute; aluminum motor housing; vortex impeller
- Set the pump flat on the bottom of the sump pit or basin.
- Connect a 1-1/2 in. discharge pipe or hose and route it to drain.
- Plug into a grounded 115V outlet (GFCI recommended); the vertical float will cycle the pump automatically.
- Keep the intake and float clear of debris.
