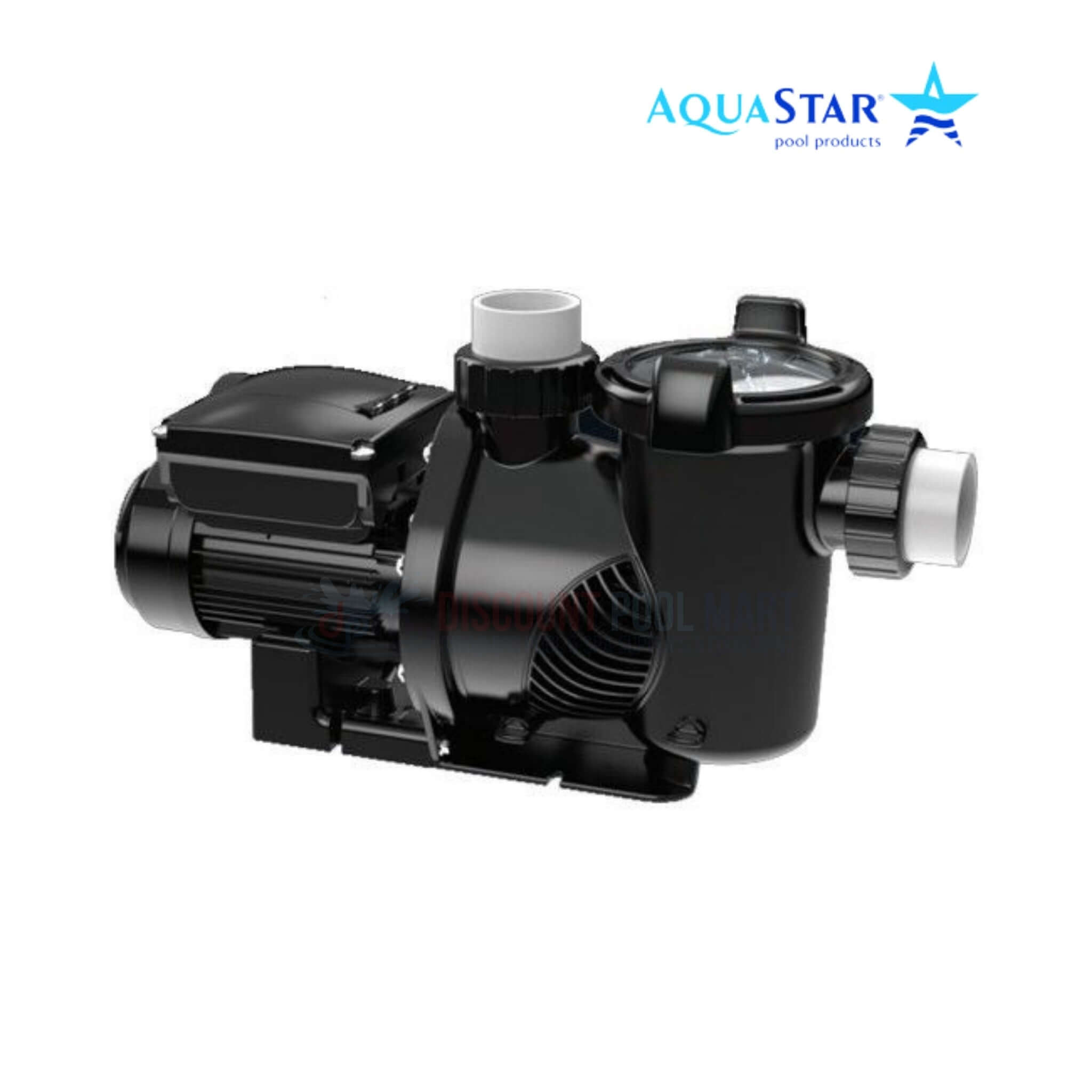

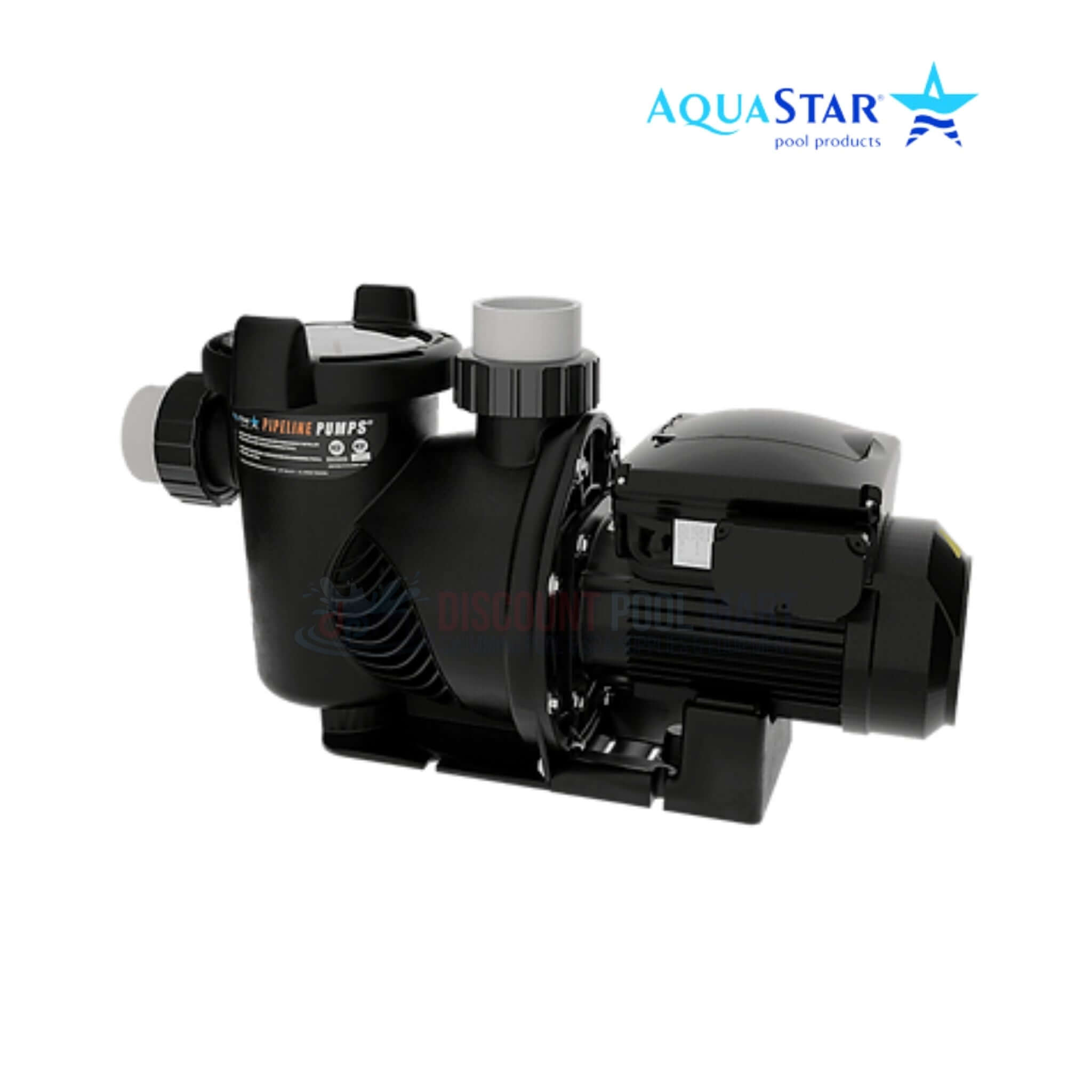

PLP150S | AquaStar Smart Pipeline Pool Pump | Variable Speed | 1.5HP

AquaStar PLP150S 1.5HP Smart Pipeline Pump for Efficient Pool Circulation

The AquaStar PLP150S Smart Pipeline Pool Pump is designed to provide quiet, efficient, and dependable performance for residential pool applications. Powered by a Permanent Magnet Motor (PMM) combined with a Totally Enclosed Fan-Cooled (TEFC) design, this pump delivers exceptional energy savings while minimizing mechanical noise. The addition of a high-tech rubber motor mount effectively absorbs vibrations, creating one of the quietest operating experiences in its class—perfect for pool owners who value a peaceful backyard environment.

Smart Internal Design, Simplified Maintenance

See inside the PLP150S and discover the high-efficiency flow path that minimizes restriction and boosts performance. Integrated 2" and 2.5" union connections, ergonomic lid handles, and a quick-lock 4-point lid design make servicing fast and stress-free. A high-capacity, self-aligning HDPE basket ensures reliable debris capture without clogging or compromise.

Its optimized 2.5-inch internal frame allows for smooth, unrestricted water flow, reducing turbulence for superior hydraulic efficiency and quieter operation. NSF Certified for safety and performance, the PLP150S offers four programmable speeds ranging from 800 to 3400 RPM, allowing precise customization for filtration cycles, water features, or cleaning systems. The integrated RS485 communication port ensures easy compatibility with most automation systems, giving pool owners remote control options and flexible scheduling capabilities when paired with AquaStar automation.

Built in the USA for Proven Performance

Crafted in the United States with precision and pride, the PLP150S reflects AquaStar’s commitment to reliability, innovation, and safety. Its durable construction and advanced motor technology make it a long-lasting solution for efficient pool circulation.

Maintenance is simplified thanks to ergonomic lid handles and a quick-release quarter-turn locking mechanism that provides fast access to the large-capacity, self-aligning HDPE debris basket. This basket is designed for maximum debris collection without impeding water flow, helping maintain consistent performance. Built-in safeguards, such as programmable freeze protection and automatic no-flow shutoff, protect the pump and pool system during adverse conditions.

Wi-Fi Connected Control from Your Phone

Take control anytime, anywhere. The PLP150S integrates seamlessly with the AquaStar PipeLine Connect app, allowing you to schedule, monitor, and adjust pump settings right from your smartphone. Total automation at your fingertips.

With its energy-efficient variable-speed technology, quiet operation, and automation-ready design, the AquaStar PLP150S is a versatile choice for both new installations and retrofits. Combining durability, high performance, and advanced motor technology, this pump offers a reliable solution that delivers long-term efficiency and a consistently clean and inviting pool.

Energy-Efficient Patented Volute Design

The PLP150S uses a patented volute design to deliver ultra-efficient hydraulic performance. By reducing turbulence and maximizing flow, this pump ensures quiet, powerful, and cost-effective operation—ideal for energy-conscious pool owners.

Key Features

• Energy-Efficient Variable-Speed Motor – Features a Permanent Magnet Motor (PMM) with a Totally Enclosed Fan-Cooled (TEFC) design, delivering powerful performance with lower energy consumption and reduced operating costs.

• Exceptionally Quiet Operation – Equipped with a high-tech rubber motor mount that absorbs vibration and dampens noise, working in harmony with the PMM to provide one of the quietest pool pump experiences available.

• Optimized Hydraulic Flow Path – The 2.5-inch internal frame design reduces turbulence, increases hydraulic efficiency, and promotes smooth water movement for filtration, heating, and water feature applications.

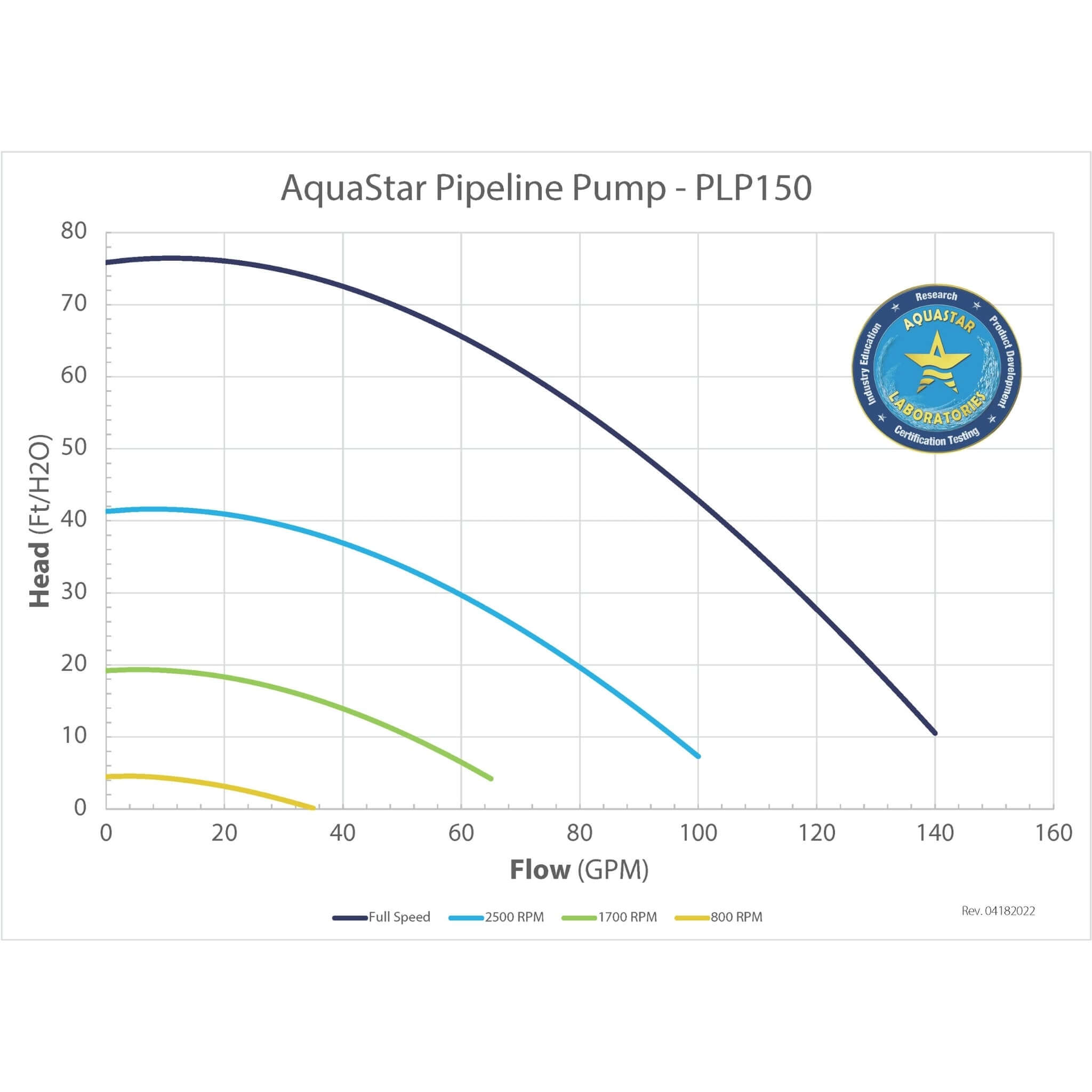

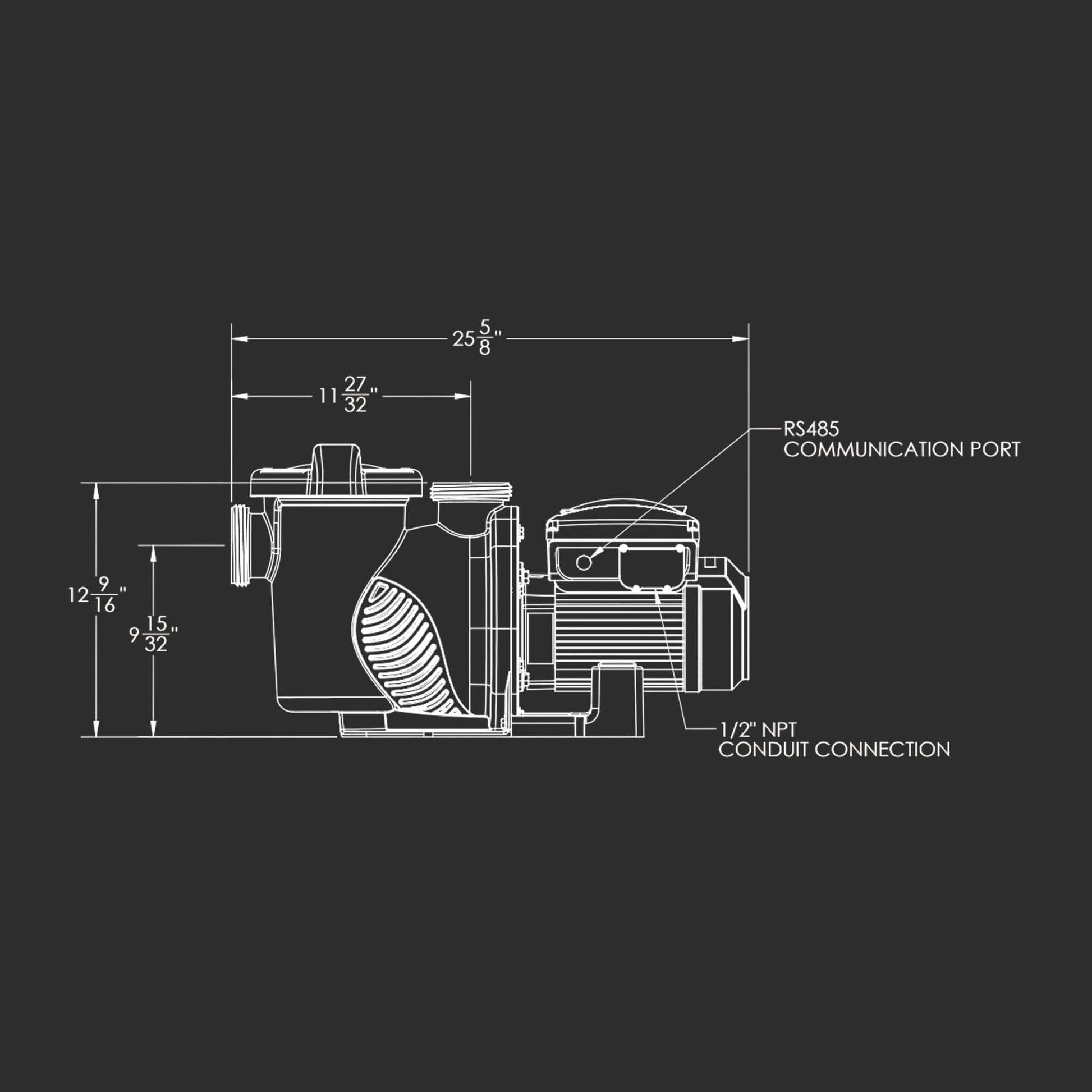

• Customizable Speed & Automation Integration – Offers four programmable speeds from 800–3400 RPM and RS485 connectivity for seamless integration with most automation systems. Supports remote scheduling and adjustments through AquaStar automation controls.

• Maintenance-Friendly Design – Features ergonomic lid handles and a quarter-turn locking mechanism for fast access to the large-capacity, self-aligning HDPE debris basket, which efficiently collects debris while maintaining optimal water flow.

• Protective Safety Features – Includes programmable freeze protection and automatic no-flow shutoff to safeguard the pump and pool system in extreme conditions or during blockages.

• Durable & Certified for Performance – NSF Certified and constructed from high-quality, corrosion- and UV-resistant materials, ensuring reliable operation and long-term durability in demanding outdoor environments.

Specifications

Maximum Input Power (W): 1500

Total Power (THP): 1.5

WEF: 7.20 kgal/kWh

Weight: 48 Lbs

Amp Ratings: 7.0A

Connection Size: 2'' Socket or 2-1/2'' Socket

Voltage/Frequency: 230VAC 50/60Hz Single Phase
