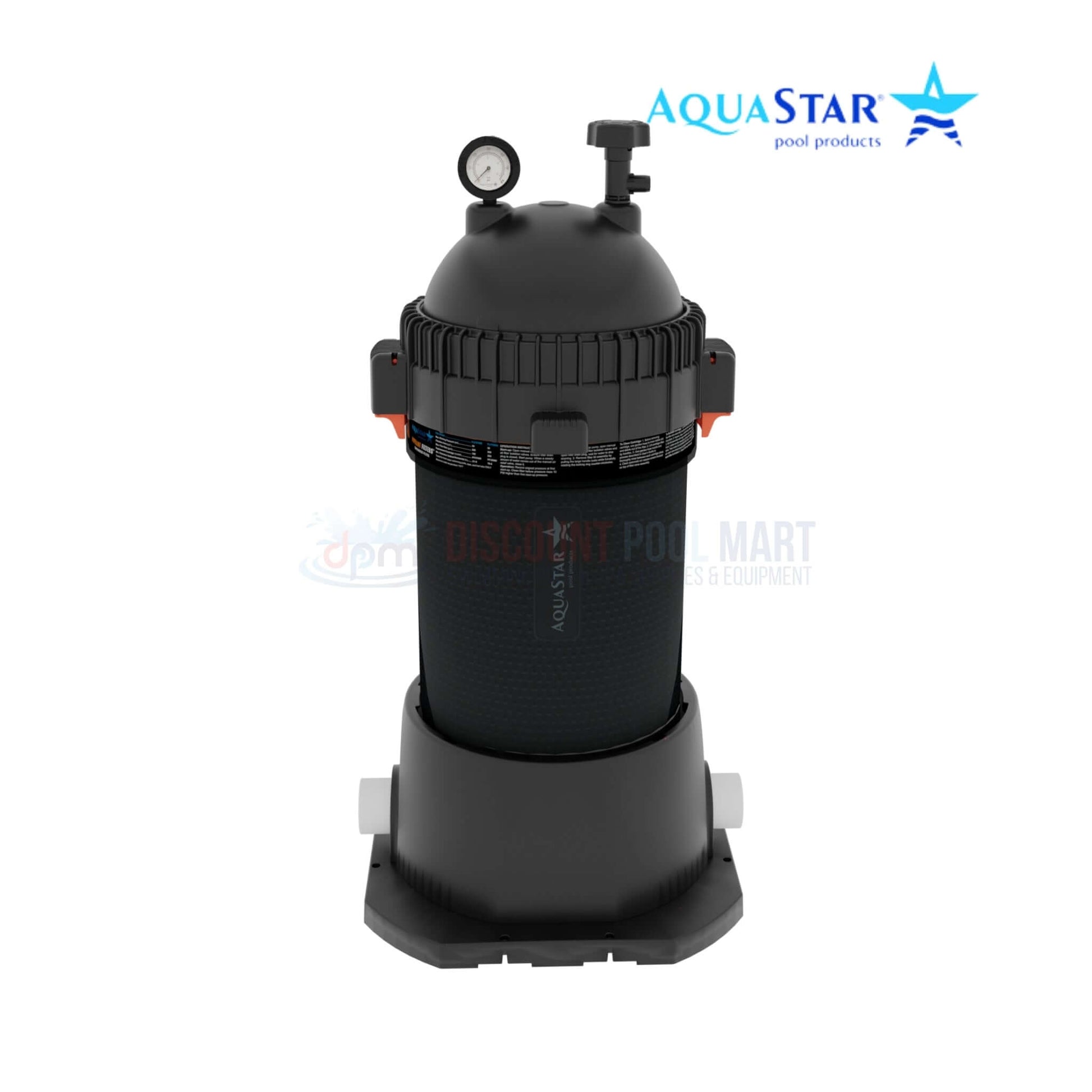

AquaStar Pool And Spa Pipeline Cartridge Filter | 27,000 Gallon | 200 sq ft | PLF27000
Fits these models
Pickup, delivery and shipping times are estimates, not guarantees.
Couldn't load pickup availability
● 18 in stock30-day returns Secure checkout
Store Availability
Checking store stock…
Choose store pickup at checkout. Usually ready in 1–3 hours during store hours. Not at your store? We can transfer it there, usually in a couple of days.
Have a question about this part?
Ask about fit, specs or shipping and get an instant answer.
Goes with this part
Manuals & documents
- AquaStar Pipeline Filters Installation Guide PDF · 5.6 MB View PDF
- AquaStar Pipeline Filters Sales Sheet PDF · 3.9 MB View PDF
- AquaStar Pipeline Filters Limited Warranty PDF · 104 KB View PDF
CA P65 Warning: Cancer and reproductive harm. www.p65warnings.ca.gov
On the AquaStar Pipeline PLF27000 Cartridge Filter diagram
Open the full interactive diagram →
The AquaStar Pool and Spa Pipeline Cartridge Filter, model PLF35000, is engineered for pools and spas up to 27,000 gallons for commercial use (6 hour turnover capacity), and up to 108,000 for residential use (12 hour turnover capacity). Boasting a substantial 20 square feet of filtration area with one cartridge for easier and cheaper maintenance, this filter is designed to maintain water clarity and hygiene at optimal levels with minimal maintenance. The Pipeline filter is NSF certified and tested to have DE-Level Clarity with one turnover. Pipeline Filters provide top-tier hydraulic performance. These filters continue to outperform even after the first cleaning of the filter and cartridge element. It outperforms cartridge filters twice its size hydraulically and in cleaning ability.
Safety and Ease-of-Access
Pipeline Filters’ patented double-locking system allows for safe, quick, and easy depressurization. This makes Pipeline Filters extremely easy to access compared to filters that use a traditional clamp.
Filtration Performance

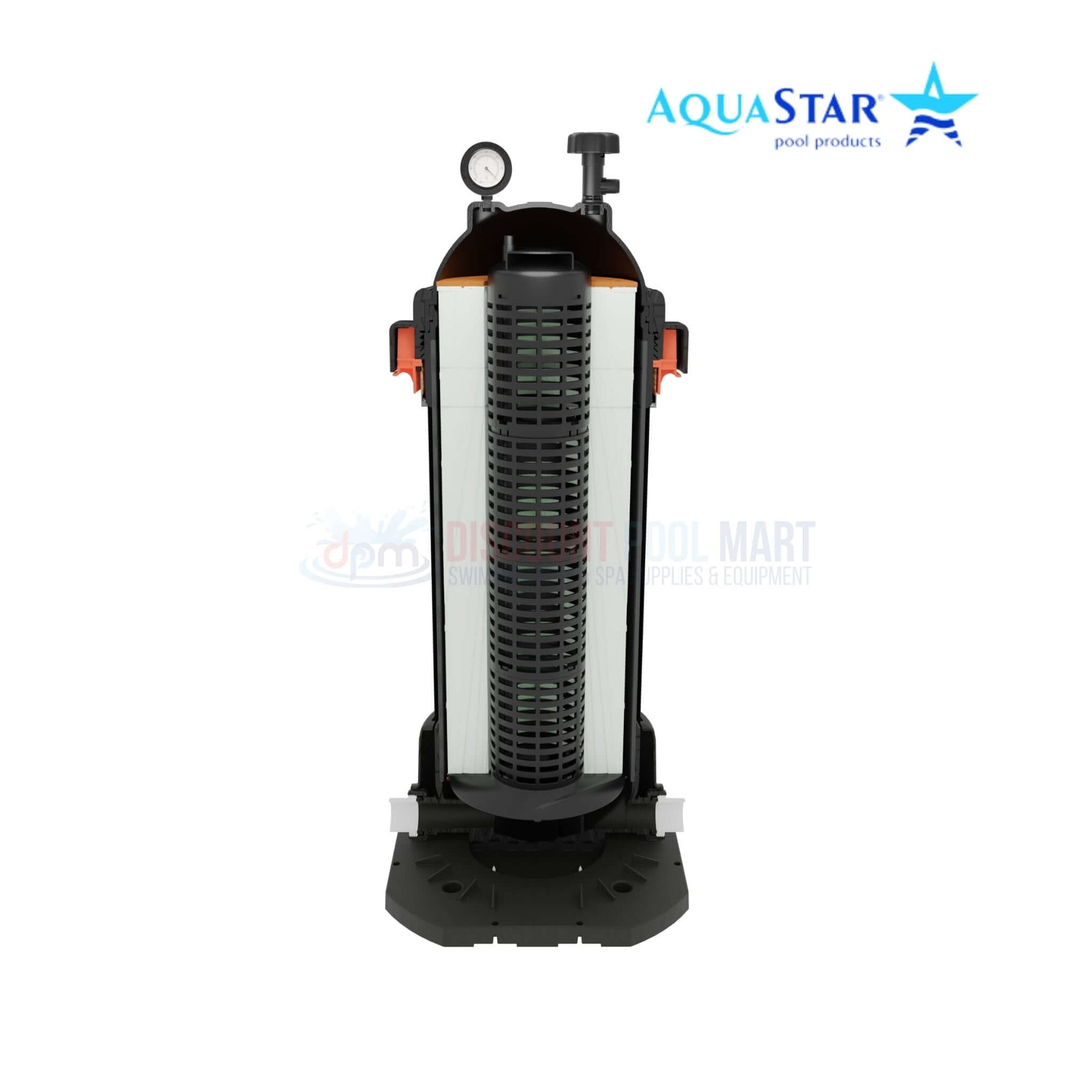

Pipeline Filters passed the NSF water clarity (turbidity reduction) test with just 1 turnover, similar to DE filters. Other cartridge filters typically take up to 5 turnovers to pass the same test. Engineered pleat spacing, 64% larger core openings, and patented uniform tank design allow for more uniform flow from bottom to top, providing best-in-class filtration

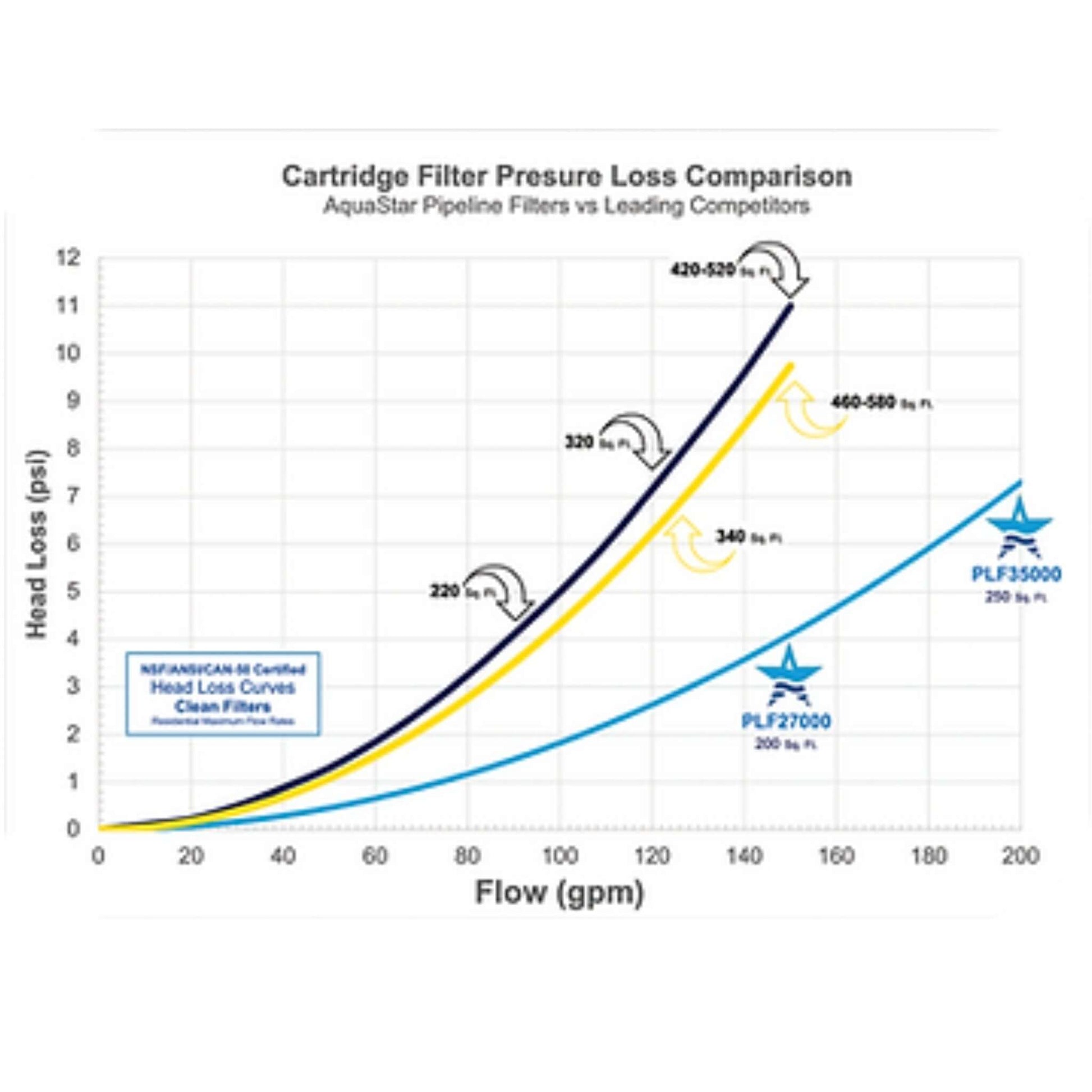

Hydraulic Performance
Highlights
- Massive Filtration Area: Features an impressive 250 square feet of filtration space, promoting exceptional water clarity and hygiene.
- Engineered for Volume: Accommodates pools and spas up to 27,000 gallons for commercial use and up to 108,000 for residential use, offering a broad range of use.
- Maintenance Efficiency: Designed for minimal upkeep, this filter simplifies pool care routines.
- Durability and Performance: The filter's large capacity grants a longer lifespan and reduced need for cartridge changes, ensuring consistent, high-quality performance.
Includes
- (1) Aquastar PLF27000 Pool and Spa Pipeline Cartridge FIlter
- (1) Aquastar PF27000 200 sq ft Cartridge
- (1) Pressure Gauge
- (1) Air Relief Valve
*See manual page 13 for complete list
Specifications
- Model: PLF27000
- Filtration Area: 200 sq ft
- Max Working Pressure: 108,000psi
- Max Flow Rate: 150GPM

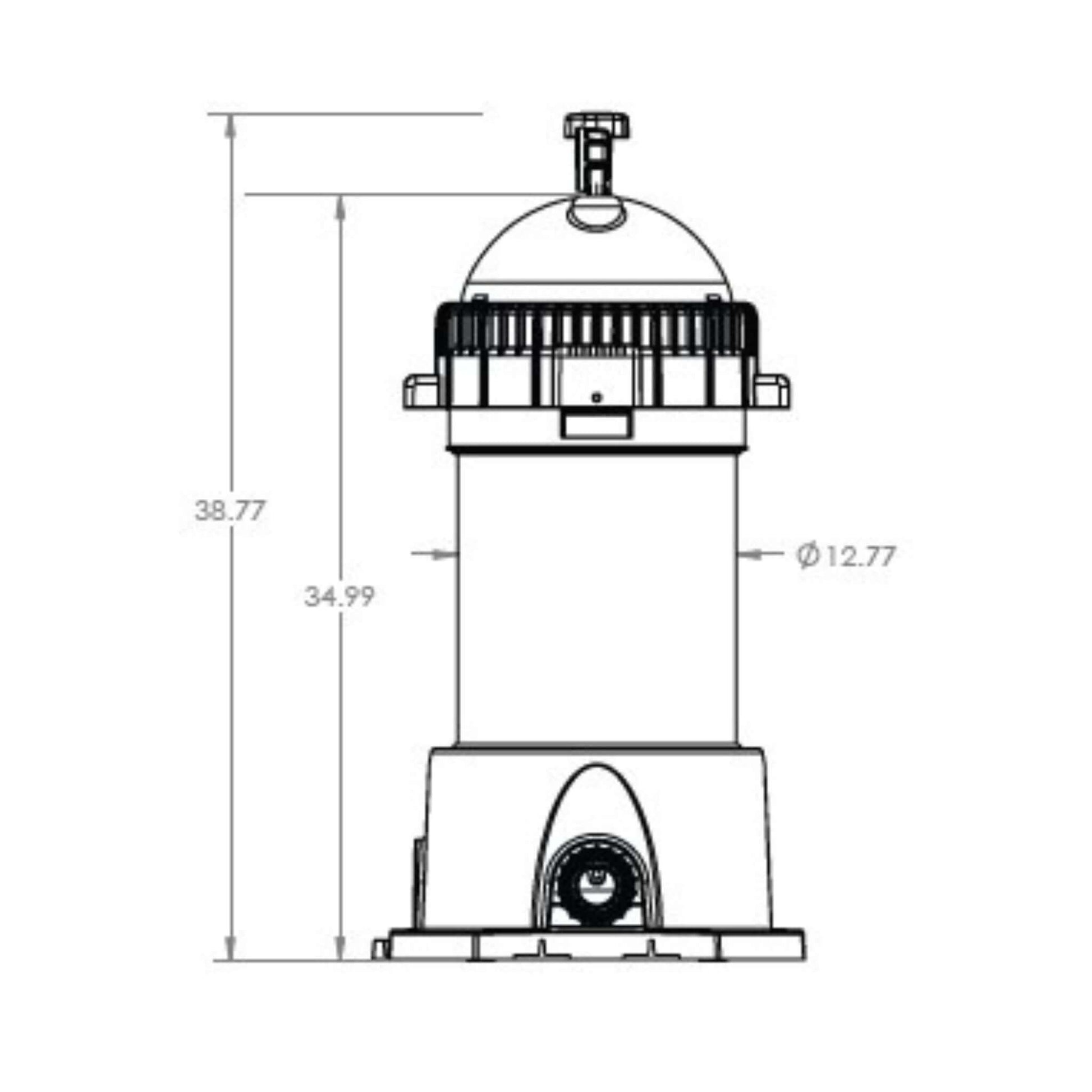

- Vertical Clearance: 61in
- Design Filtration Flow Rate: 75
- Capacity: 27,000 gallons
- Weight: 54 pounds
