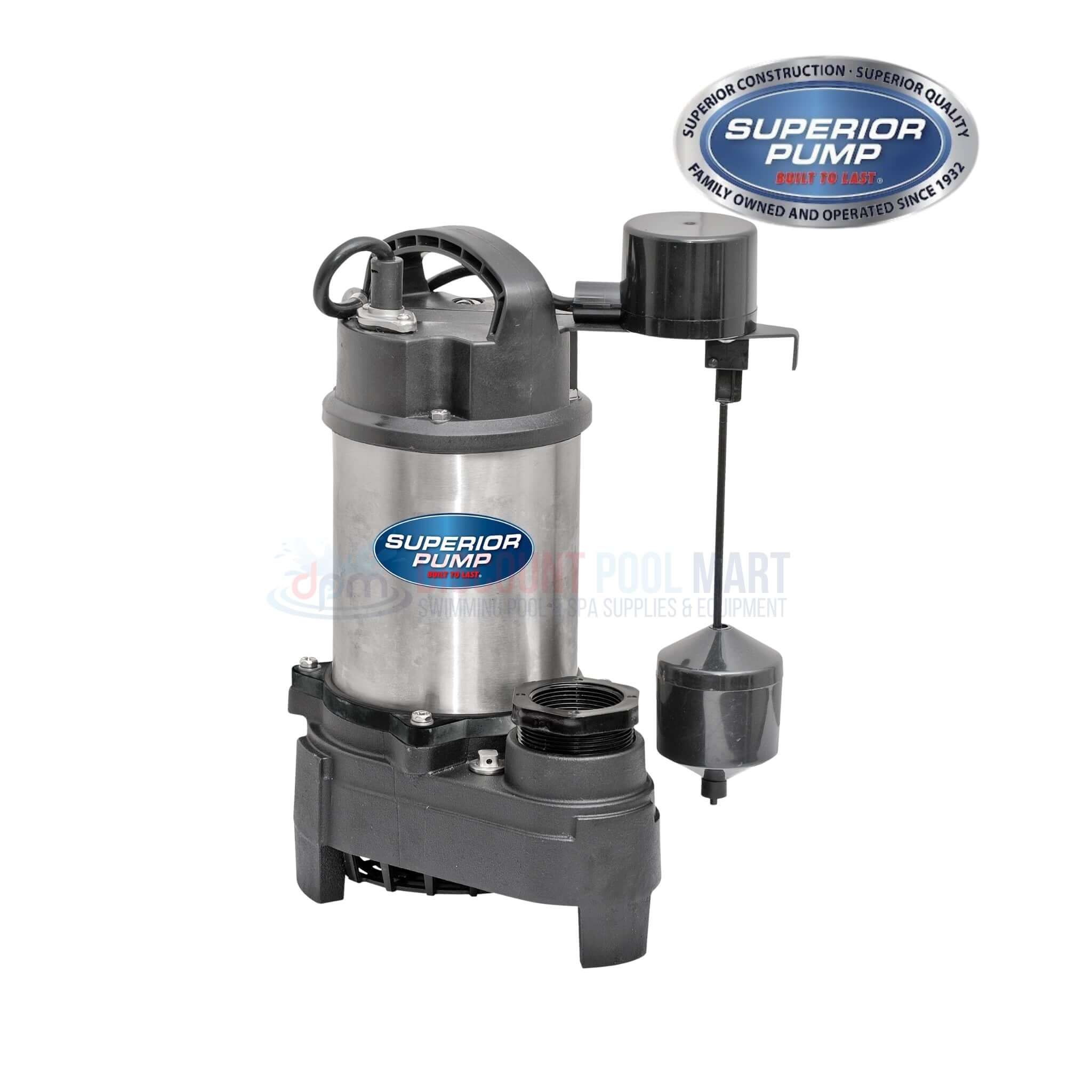

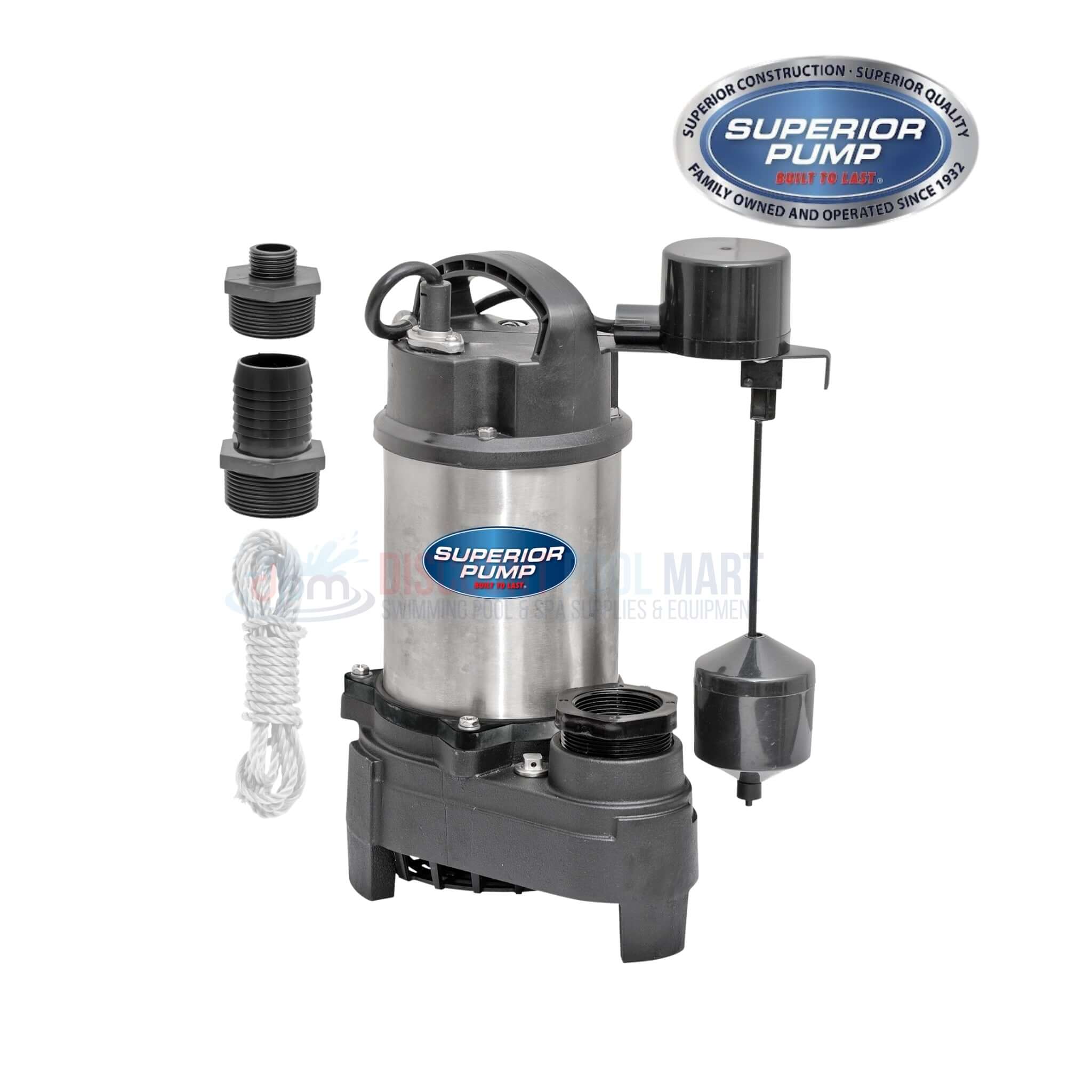

The Superior Pump 92159 1 HP Submersible Sump Pump delivers dependable, high-capacity water removal with a rugged stainless steel and cast iron construction. Featuring a clog-resistant thermoplastic vortex impeller, this pump moves up to 5160 gallons per hour and lifts water up to 25 feet of vertical height. Equipped with a vertical float switch for automatic operation, it’s designed for sump pits, basements, and utility applications. Multiple adapters, including a 2-inch discharge, 1-1/2" NPT, garden hose, and barb fittings, make installation versatile and straightforward. A 25-foot power cord and included nylon rope ensure simple setup, while the thermally protected split capacitor motor runs continuously for long-lasting performance. Backed by a 3-year warranty, this pump offers reliable protection against flooding and water damage.
-
Heavy-Duty Motor: 1 HP split capacitor motor runs continuous duty with thermal protection for reliable, long-term performance.
-
High-Capacity Pumping: Moves up to 5160 gallons per hour and lifts water up to 25 feet, ideal for demanding residential and utility use.
-
Durable Build: Stainless steel and cast iron housing provides strength, corrosion resistance, and extended service life.
-

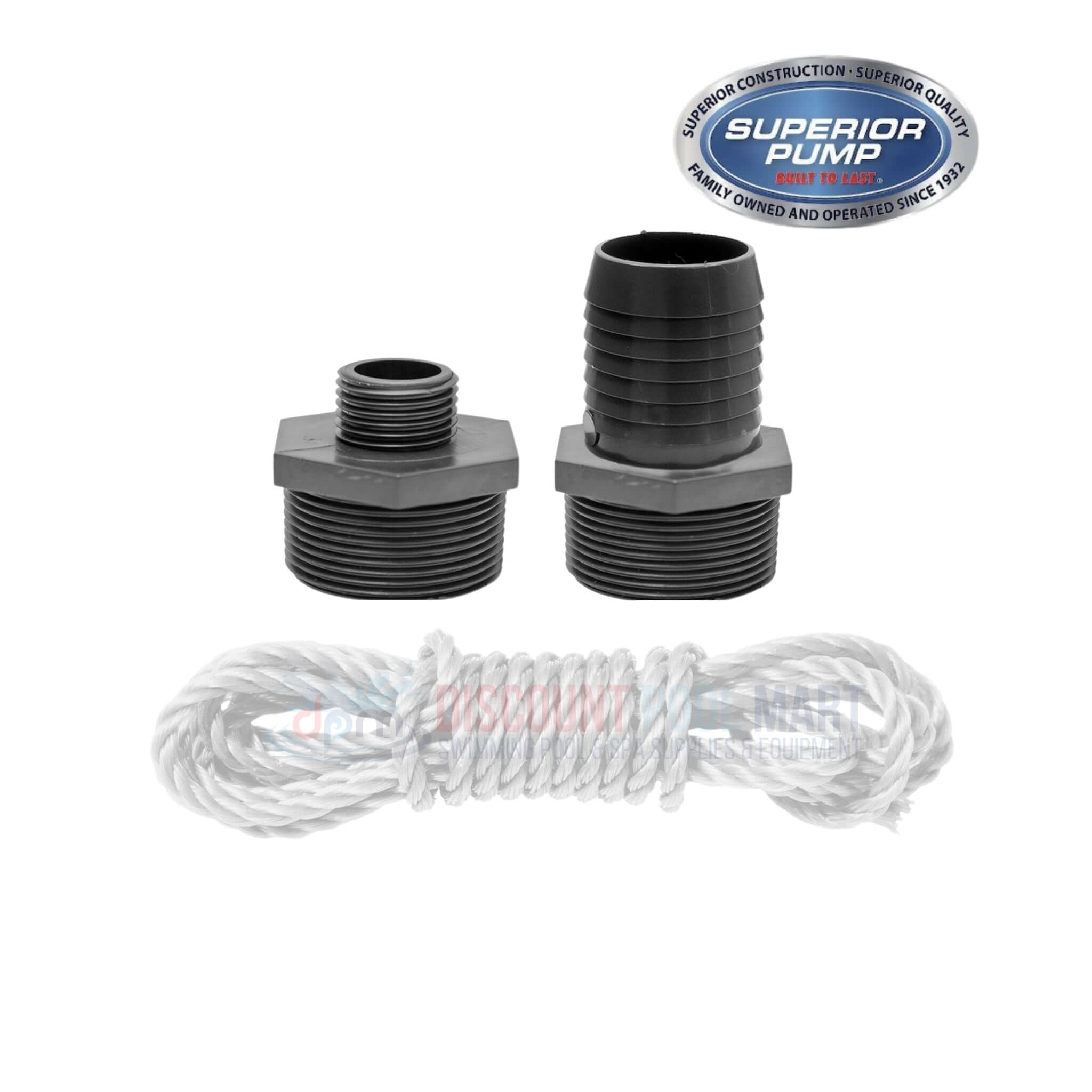

Versatile Installation: Includes 2" discharge, 1-1/2" NPT adapter, garden hose adapter, and 1-1/2" barb adapter for flexible connections.
-
User-Friendly Design: Comes with a 25-foot power cord, nylon rope, and vertical float switch for automatic, worry-free operation.
- 3/4" Garden Hose Adapter
- 1-1/2" Barb Adapter
- 25' Nylon Rope
- 1HP
- 120 Volt AC
- 7.5 AMPs
- Built in thermal overload protection for safety
- Permanent split capacitor continuous duty motor
| Head | 0' | 5' | 10' | 15' | 20' | 25' |
| GPM | 86 | 81 | 75 | 68 | 61 | 52 |
| GPH | 5160 | 4860 | 4860 | 4500 | 3660 | 3120 |
