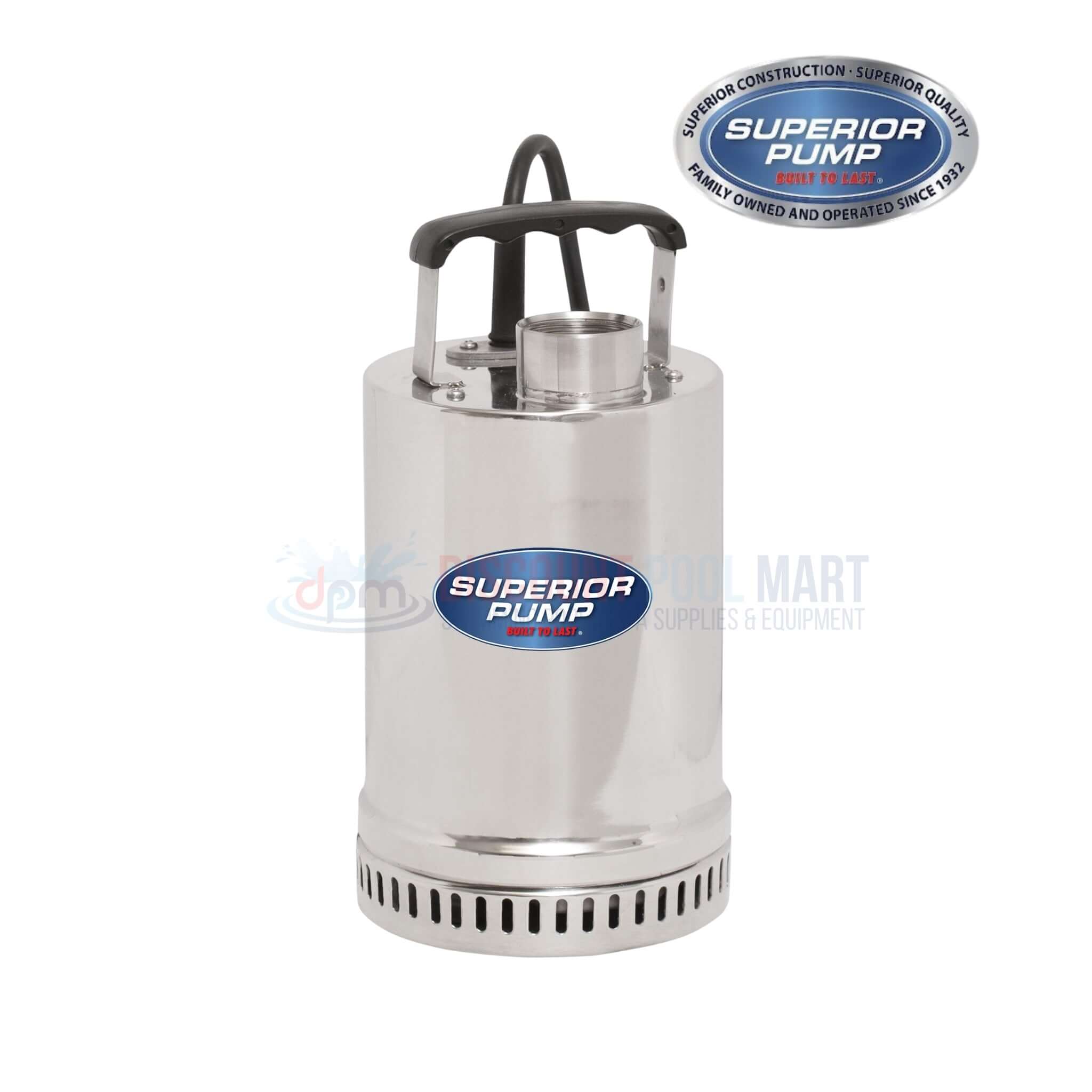

The Superior Pump 91292 1/4 HP Utility Pump is a compact yet powerful solution for a wide range of household and jobsite water transfer needs. Constructed with durable stainless steel and equipped with a stainless steel impeller, this utility pump delivers up to 1650 gallons per hour and lifts water up to 20 feet vertically. Designed for continuous duty, the thermally protected split capacitor motor ensures reliable operation and long service life. Featuring a top discharge, stainless steel intake screen, and integrated heavy-duty handle for portability, this pump is versatile enough for draining pools, removing water from basements, or other transfer applications. With a 25-foot power cord, it’s easy to position where needed, and it can operate as an automatic pump with the addition of an optional float switch. Backed by a 1-year warranty, it combines convenience, durability, and efficient water removal.
-
Efficient Motor: 1/4 HP split capacitor motor with thermal protection ensures safe, continuous-duty performance.
-
Strong Pumping Power: Moves up to 1650 gallons per hour and lifts water up to 20 feet of vertical height.
-
Durable Stainless Design: Built with stainless steel housing, intake screen, and impeller for corrosion resistance and long-lasting use.
-
Flexible Operation: Works as a utility pump or can convert to automatic use with an optional float switch.
-
Portable & User-Friendly: Includes a 25-foot power cord and integrated handle for easy setup and mobility in multiple applications.
- 1/4HP
- 120 Volt AC
- 3.2 AMPs
- Built in thermal overload protection for safety
- Permanent split capacitor continuous duty motor
| Head | 0' | 5' | 10' | 15' | 20' |
| GPM | 28 | 21 | 15 | 8 | 0 |
| GPH | 1680 | 1260 | 900 | 480 | 0 |
