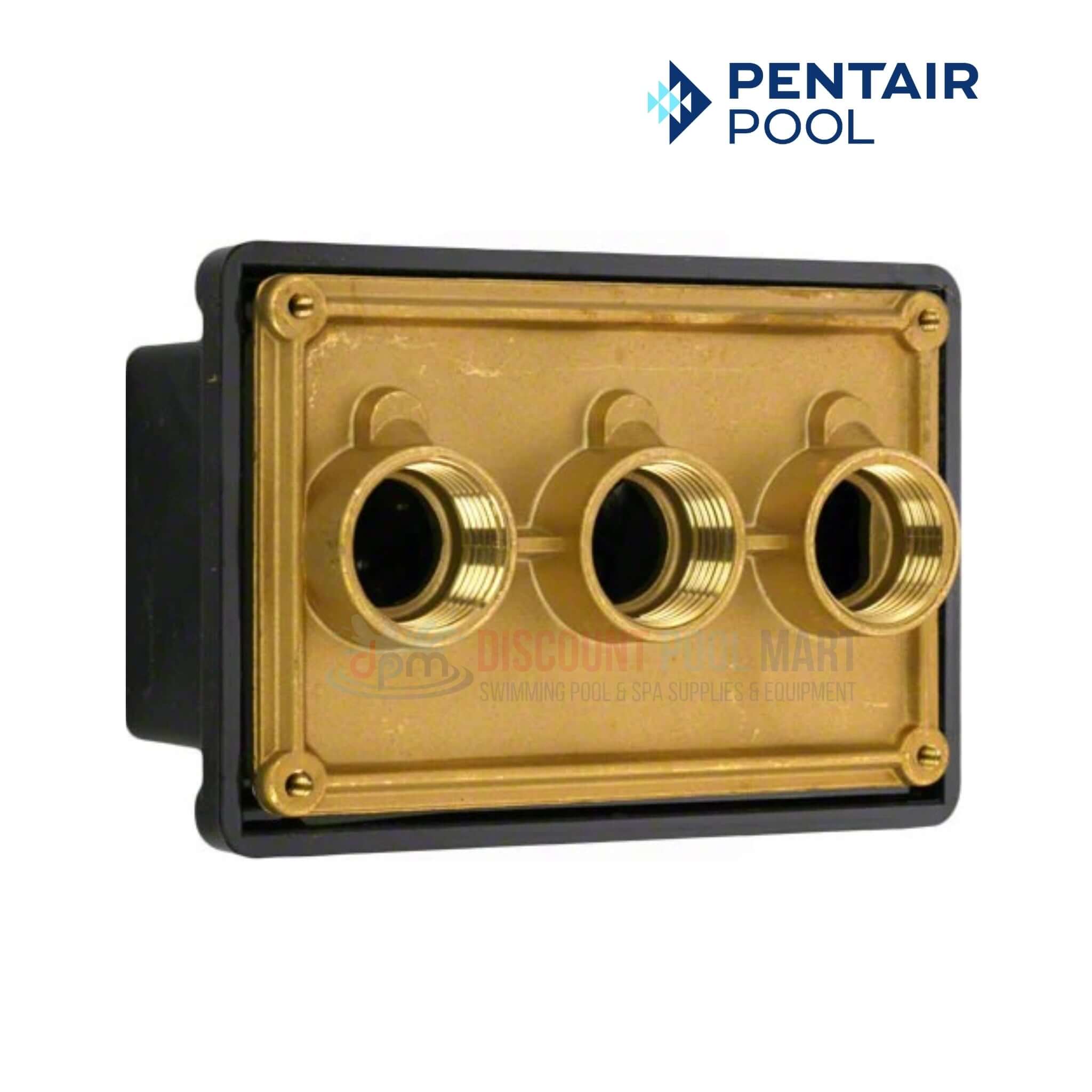

78310600 | Pentair 3/4" Brass Junction Box For Lights | 3 Port

The Pentair 78310600 Brass Light Junction Box is designed to provide a secure, code-compliant connection point for pool and spa light wiring installations. Featuring durable brass construction, this 3/4 inch junction box includes three ports to accommodate conduit connections while protecting electrical connections from moisture and corrosion. Its heavy-duty metal housing offers long-term reliability in demanding pool environments, making it suitable for new installations or replacement of worn or damaged junction boxes. Commonly used with underwater pool and spa lighting systems, this junction box helps ensure safe electrical transitions from conduit to power source while maintaining proper grounding and protection.

Highlights

• Heavy-Duty Brass Construction: Built from solid brass to resist corrosion, moisture exposure, and harsh outdoor pool conditions.

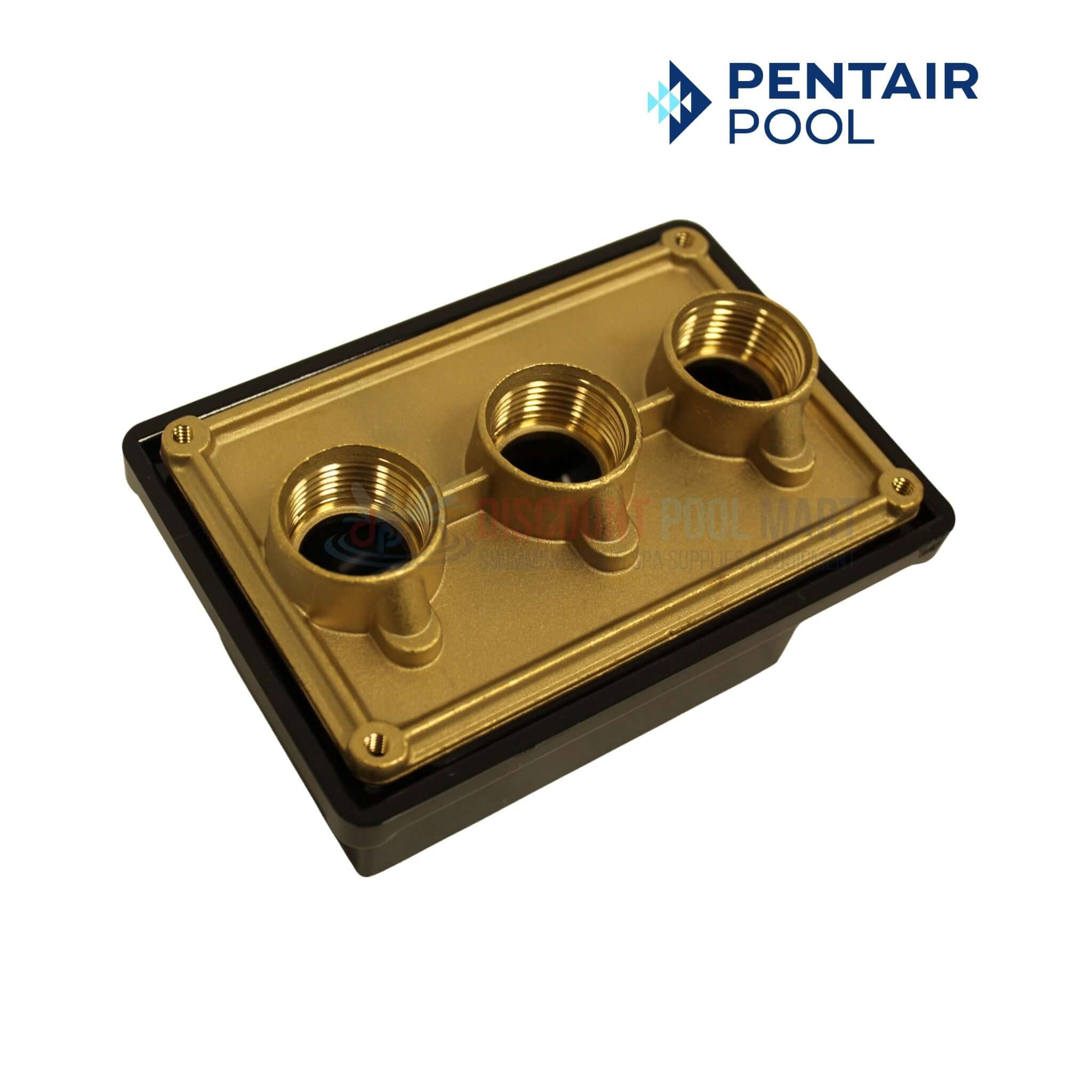

• Three-Port Configuration: Features three conduit ports to support flexible wiring layouts and multiple connection paths.

• 3/4 Inch Conduit Size: Designed for standard 3/4 inch conduit fittings commonly used in pool and spa lighting installations.

• Electrical Safety Support: Provides a protected enclosure for light wiring connections, helping maintain proper grounding and code compliance.

• Versatile Installation Use: Suitable for new pool light installs or replacing aging junction boxes in existing lighting systems.

Includes

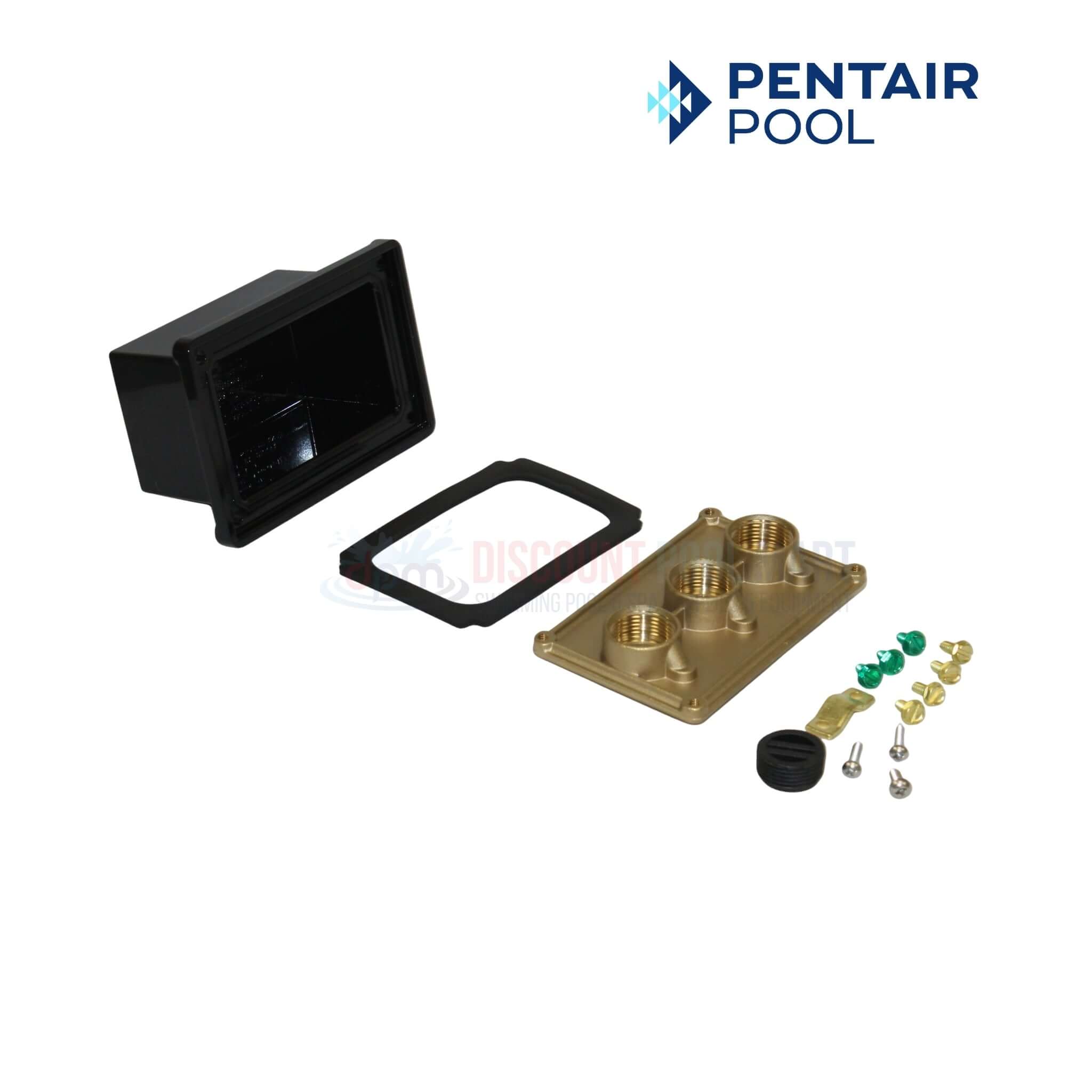

• (1) Pentair 78310600 Brass Junction Box

Compatibility

• Pentair Pool and Spa Lights

Instructions

A. THE FOLLOWING PREPARATORY STEPS MUST BE COMPLETED BY THE CERTIFIED ELECTRICIAN BEFORE LIGHT IS INSTALLED
1. Ensure that the electrical system of your pool conforms with all requirements of the National Electrical Code (NEC),
and all local codes and ordinances. A licensed or certified electrician must install the electrical system to meet or
exceed those requirements before the Junction Box is installed. Some of the NEC requirements are listed below.
2. To be certain that the pool’s electrical system meets all applicable requirements, the electrician should
also consult the local building department.
3. Position Junction Box to meet National Electrical Code (NEC) requirements and to prevent hazard to personnel.

4. The center conduit hub is provided with a strain relief for a cord size up to a 10/3 AWG cord. Use underwater lights
with water resistant cord only.

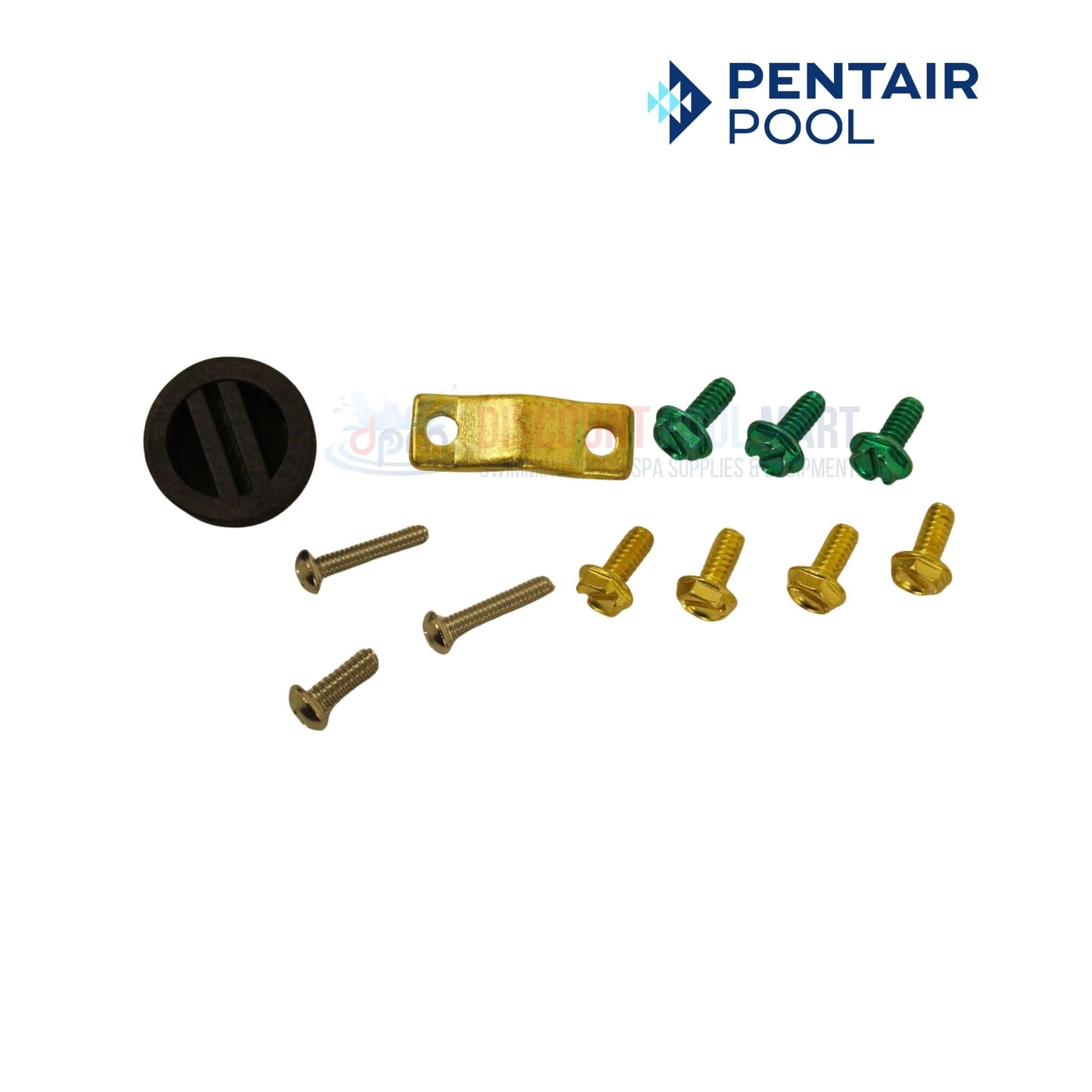

5. Three equipment grounding terminals are provided for internal grounding suitable for #16 AWG to #10 AWG wire.
One pressure wire grounding terminal is provided for a #8 AWG insulated copper bonding wire.

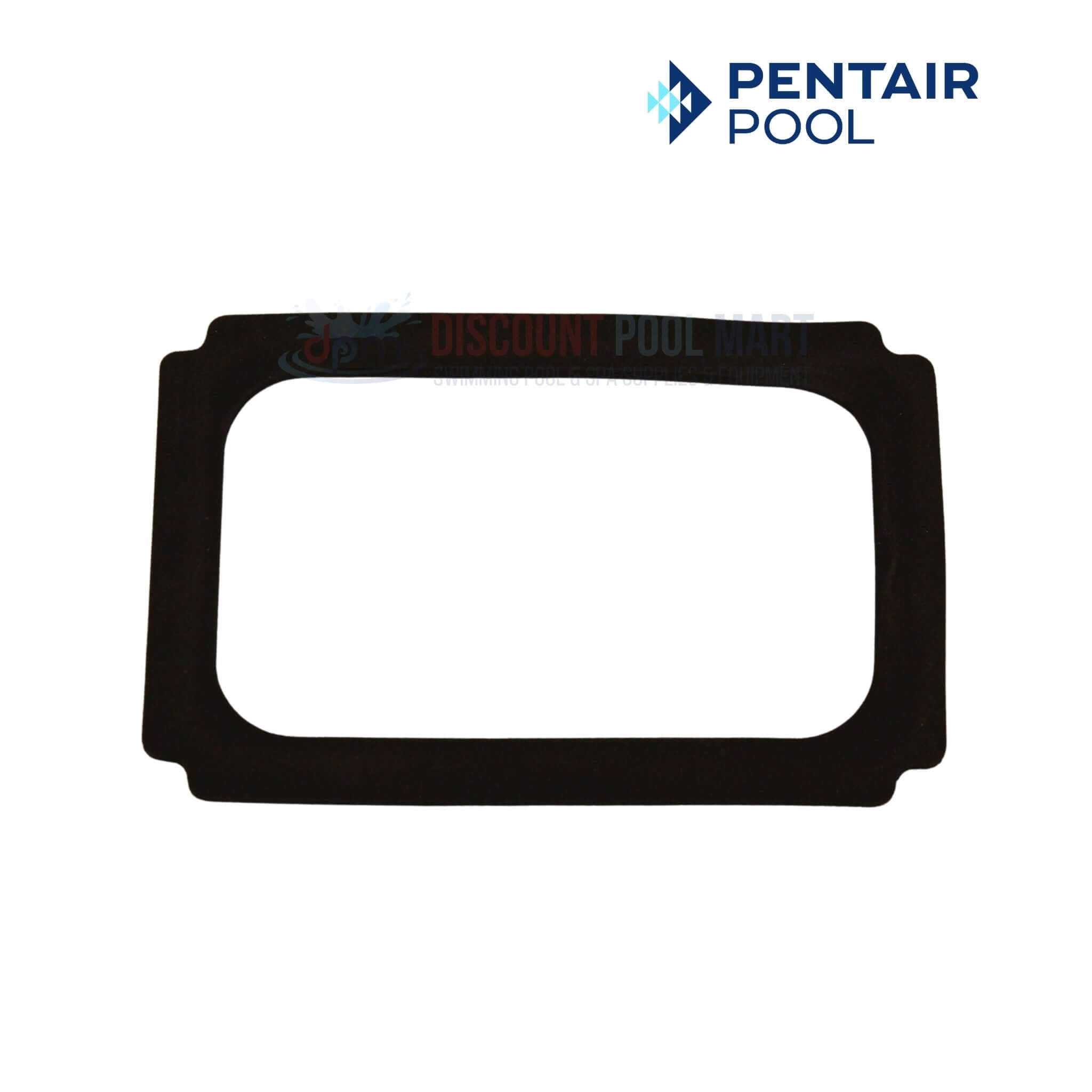

6. Install the Junction Box gasket between the Junction Box base and cover. Replace gasket if worn or damaged (P/N
79300600).
7. Plug any unused conduit hubs with the conduit plugs provided.

Additional Info

The Pentair 78310600 Brass Light Junction Box is a 3/4 inch pool and spa lighting junction box designed to protect electrical connections from moisture and corrosion. This section helps Discount Pool Mart walk-in customers confirm proper application, understand why junction boxes fail over time, and prepare for replacement before picking one up locally. These FAQs focus on compatibility, installation considerations, and common lighting-related issues.

Compatibility and Lighting Applications

Walk-in customers often ask whether this junction box matches their existing setup.

How do I know the Pentair 78310600 junction box is right for my pool light?

If your pool or spa light wiring transitions from conduit to power near the equipment pad using a 3/4 inch junction box, this model is a common fit. Bringing photos to Discount Pool Mart helps staff verify conduit size and port layout.

Can this junction box be used for both pool and spa lights?

Yes, it is commonly used with underwater pool and spa lighting systems that require a protected wiring enclosure.

Will this replace an older metal or plastic junction box?

Yes, it is often used to replace aging or corroded junction boxes that no longer seal properly.

Installation and Safety Considerations

These questions help customers understand why proper junction boxes matter.

Why is brass preferred for pool light junction boxes?

Brass resists corrosion from moisture and chemicals better than many other materials, making it ideal for pool environments.

What should I check before installing a new junction box?

Confirm conduit size, wiring condition, and grounding continuity before mounting the box.

Does the three-port design provide installation flexibility?

Yes, the multiple ports allow easier routing of conduit and wiring without forcing tight bends.

In-Store Pickup and Local Guidance

These FAQs help customers prepare before visiting Discount Pool Mart.

Should I bring measurements or photos of my existing box?

Yes, this helps staff confirm port size and mounting compatibility.

Is this junction box usually available for same-day pickup?

It is commonly stocked, though checking availability before visiting is recommended.

Do customers often replace conduit fittings at the same time?

Yes, fittings and gaskets are often refreshed together during lighting repairs.
