523050 | Pentair IntelliCenter I5P Outdoor Control Panel Circuit Board w/ Faceplate
Same-day local pickup & delivery across the Los Angeles area
Couldn't load pickup availability
CA P65 Warning: Cancer and reproductive harm. www.p65warnings.ca.gov
Find your parts diagram
Sticker on the pump body (the part with the basket), not on the motor. Motor labels from Century, A.O. Smith or Regal won't match parts.
Label on the side of the tank near the base. Size is in sq ft, e.g. 420 sq ft = C4030 or CCP420.
Rating plate inside the front access panel. Note the BTU and gas type (NG or LP).
Molded into the body or printed on top. Robotic cleaners: on the power supply.
Still not sure? Call (818) 818-6559 and we'll find it for you.

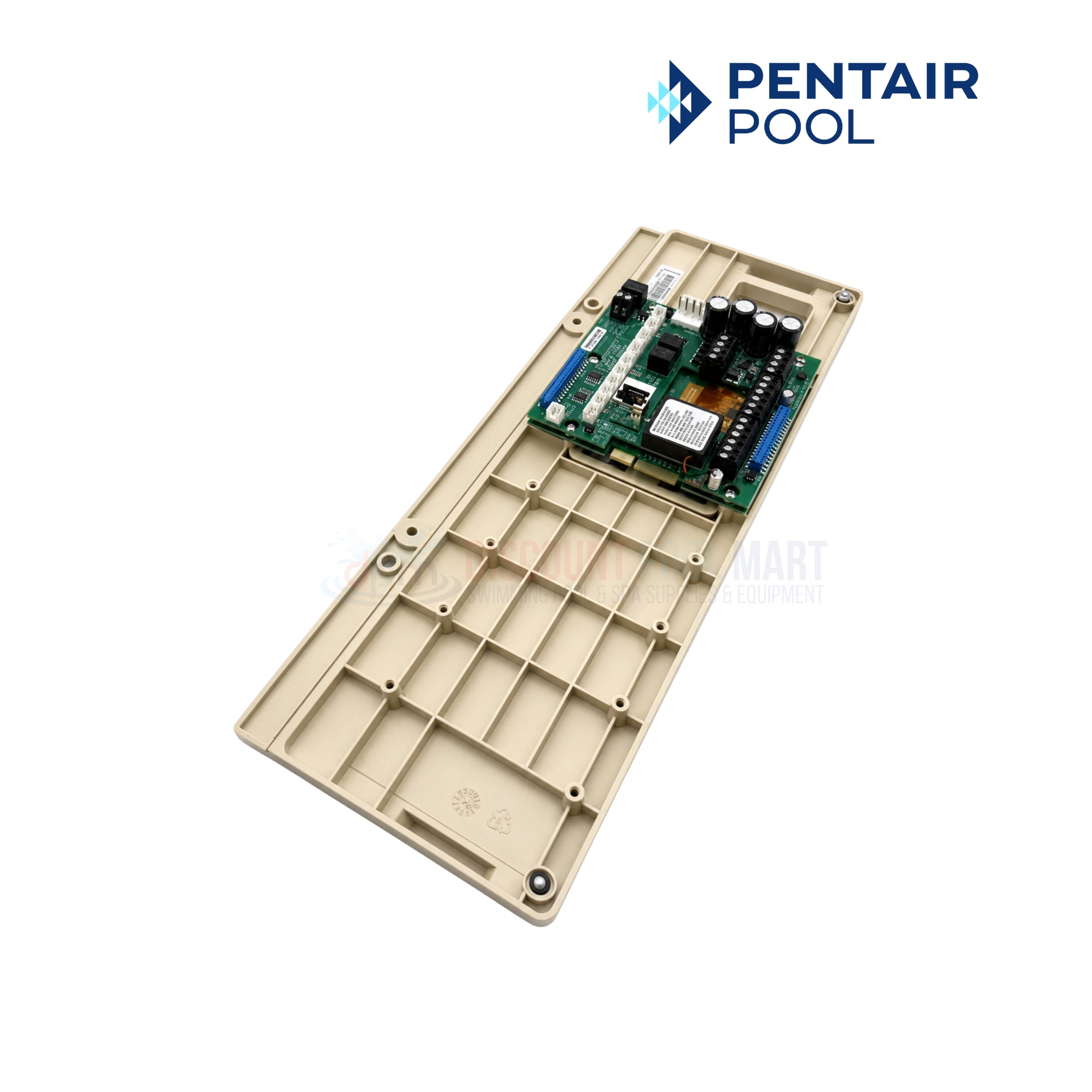

The Pentair 523050 is an OEM replacement Outdoor Control Panel (OCP) circuit board assembly with faceplate for the IntelliCenter I5P pool and spa automation system. Serving as the main PCBA — the operational brain of the outdoor panel — this board governs all automation functions including pump scheduling, heater control, lighting management, and water feature operation. The 523050 is compatible with both Pentair Common Load Centers (CLC) equipped with a breaker subpanel and Common Power Centers (CPC) without a subpanel, covering the full range of IntelliCenter and IntelliCenter Lite outdoor panel configurations for single-body-of-water installations. Built with AWS cloud integration support, the IntelliCenter I5P system delivers enhanced connectivity, scheduling precision, and remote access capability through Pentair's app ecosystem. If an IntelliCenter panel is experiencing malfunctions, display failures, connectivity issues, or loss of automation control, replacing the main circuit board with the factory-authorized 523050 restores full system functionality. Professional installation is required to validate the manufacturer's warranty.
- Factory-Authorized OEM Main PCBA: The 523050 is the main operational circuit board manufactured by Pentair to exact IntelliCenter I5P specifications, responsible for all automation, scheduling, and equipment control functions inside the outdoor panel rather than a generic aftermarket equivalent that may lack proper firmware compatibility.
- Fits CLC and CPC Outdoor Panels: Compatible with both Pentair Common Load Centers (CLC), which include a breaker subpanel, and Common Power Centers (CPC), which do not include a subpanel, covering the full scope of IntelliCenter and IntelliCenter Lite single-body outdoor panel installations across residential pool builds.
- Restores Pool and Spa Automation: Replaces a malfunctioning or failed main board to restore complete control of pool pumps, heaters, lighting, water features, and scheduled automation routines, addressing error codes, display failures, and the loss of remote connectivity that signal an OCP board issue inside the IntelliCenter panel.
- AWS Cloud Connectivity Support: Supports Pentair's AWS-powered cloud platform, allowing remote pool control through the IntelliCenter app with improved stability, real-time scheduling adjustments, and centralized management of all connected pool and spa equipment from a smartphone or tablet anywhere with internet access.

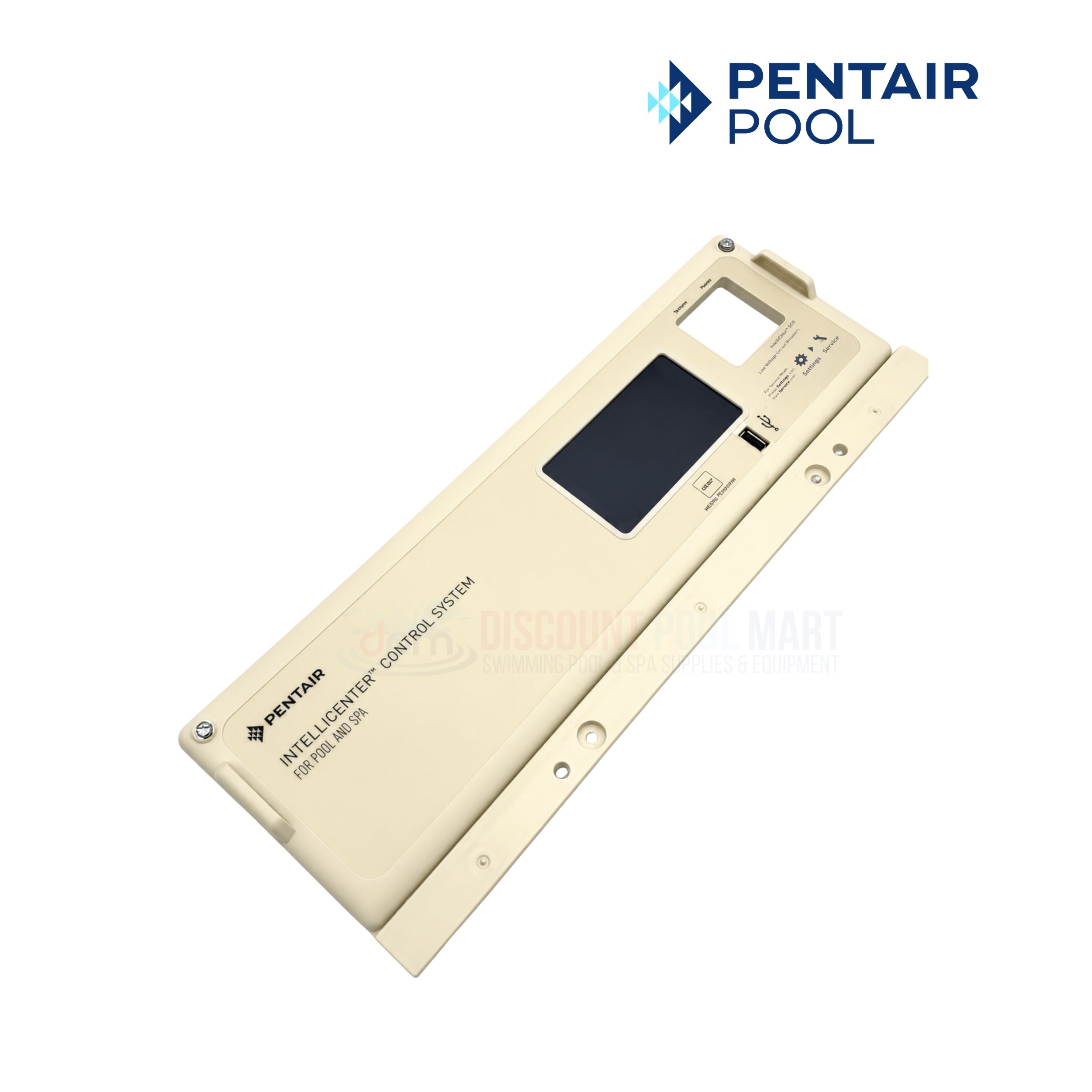

- Includes Matching Faceplate: The 523050 ships with the matching IntelliCenter I5P faceplate included, providing a complete, factory-matched panel assembly replacement and removing the need to source additional cosmetic components separately, with professional installation required to validate the manufacturer's warranty.
