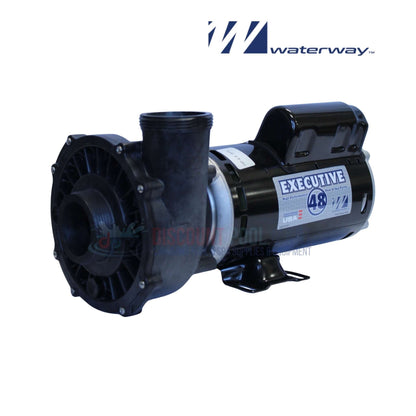

3421821-1A | Waterway 4.5HP Executive Pump 2 Speed

The Waterway 3421821-1A Executive Pump delivers high-performance spa circulation and jet power in one versatile design. With a 4.5 HP, two-speed 230 V “48-frame” motor and 2″ male-buttress-threaded intake and discharge ports, it’s engineered for demanding spa systems and heavy-flow applications. The wet end boasts a large 6½″ diameter housing for improved head pressure and is rotatable in 90° increments to simplify plumbing alignment. Built for durability in chlorinated, brominated or salt-water spas, it features a thermally protected motor and corrosion-resistant components for long-term reliability.

Highlights

• High-Power Dual-Speed Motor: Provides full 4.5 HP output at high speed and energy-saving low speed for circulation or less-demanding modes.

• 2″ Intake & Discharge Ports: Designed with 2″ male buttress thread (about 3″ OD) plumbing connections, enabling high flow rates and compatibility with spa plumbing systems.

• Rotatable Wet End Design: The wet end can be rotated at 90° increments, making it easier to align with existing plumbing and reduce installation time.

• Durable Construction for Spa Service: Equipped with a thermally protected motor, large diameter impeller housing, and designed to resist corrosion, making it ideal for spa and hot-tub environments.

• Built-for-Spa Versatility: With its 48-frame motor format, 230 V rating and 2-speed operation, this pump can be a direct replacement in many spa systems requiring high flow and head pressure.

Additional Info

This FAQ helps in-store customers verify horsepower, plumbing size, and pump orientation before picking up the Waterway Executive 3421821-1A from Discount Pool Mart. It also covers what to bring for quick confirmation at the counter.

Fitment Verification, Motor Frame & Plumbing Alignment

These questions help walk-in shoppers confirm the pump matches their existing spa setup.

How do I confirm the 3421821-1A matches my old pump?

Check your old unit for 4.5 HP, two-speed, 230 V, 48-Frame, and 2 inch suction/discharge. If those details match, this model is usually the correct replacement. Bringing photos into the store helps staff verify instantly.

Can the wet end rotate to fit my plumbing direction?

Yes. The wet end rotates in ninety-degree increments, letting you match the ports to horizontal or vertical plumbing runs.

Does this pump use standard 2 inch spa unions?

Yes. The intake and discharge ports use 2 inch male-buttress threads commonly found in high-flow spa plumbing.

High/Low Speed Use, Jet Output & Motor Safeguards

These answers explain performance once installed.

What does low speed handle?

Low speed provides quieter circulation, filtration, and heater flow during normal operation.

When is high speed used?

High speed delivers the full 4.5 HP output needed for strong jet pressure and rapid water movement.

Is the motor protected from overheating?

Yes. The motor includes thermal overload protection to help prevent overheating during heavy use.

In-Store Pickup, Visual Inspection & Replacement Prep

These tips help Discount Pool Mart customers prepare before visiting.

What should I bring in for verification?

Bring photos of your current pump’s label, plumbing unions, and wiring connections to confirm the right model before picking up in store.

Can I inspect the pump when I arrive?

Yes. Many customers compare the new pump to their old one at the counter before completing their purchase.

Is the pump ready for installation after pickup?

Yes. Once wired and attached to the unions, the pump is ready for immediate installation.
