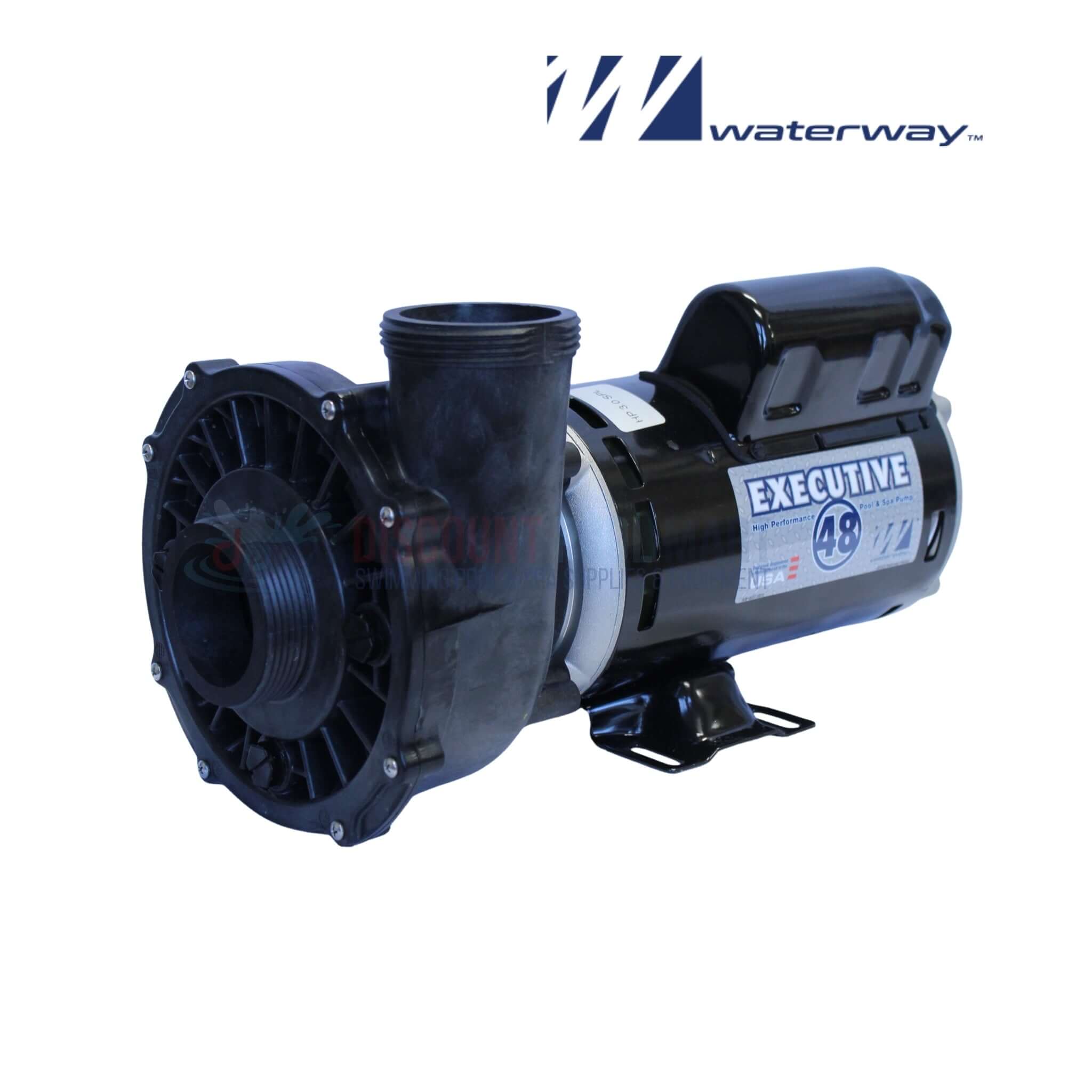

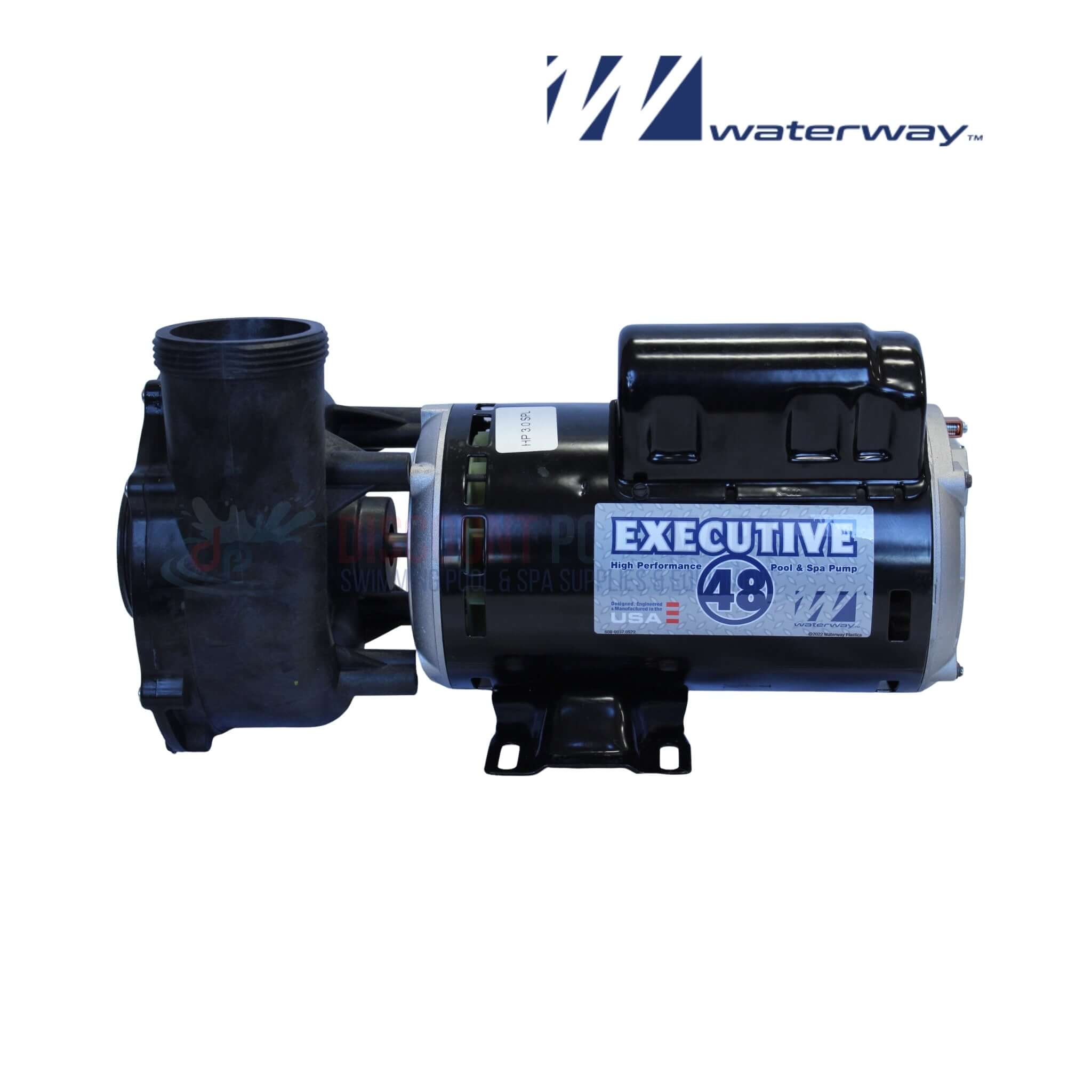

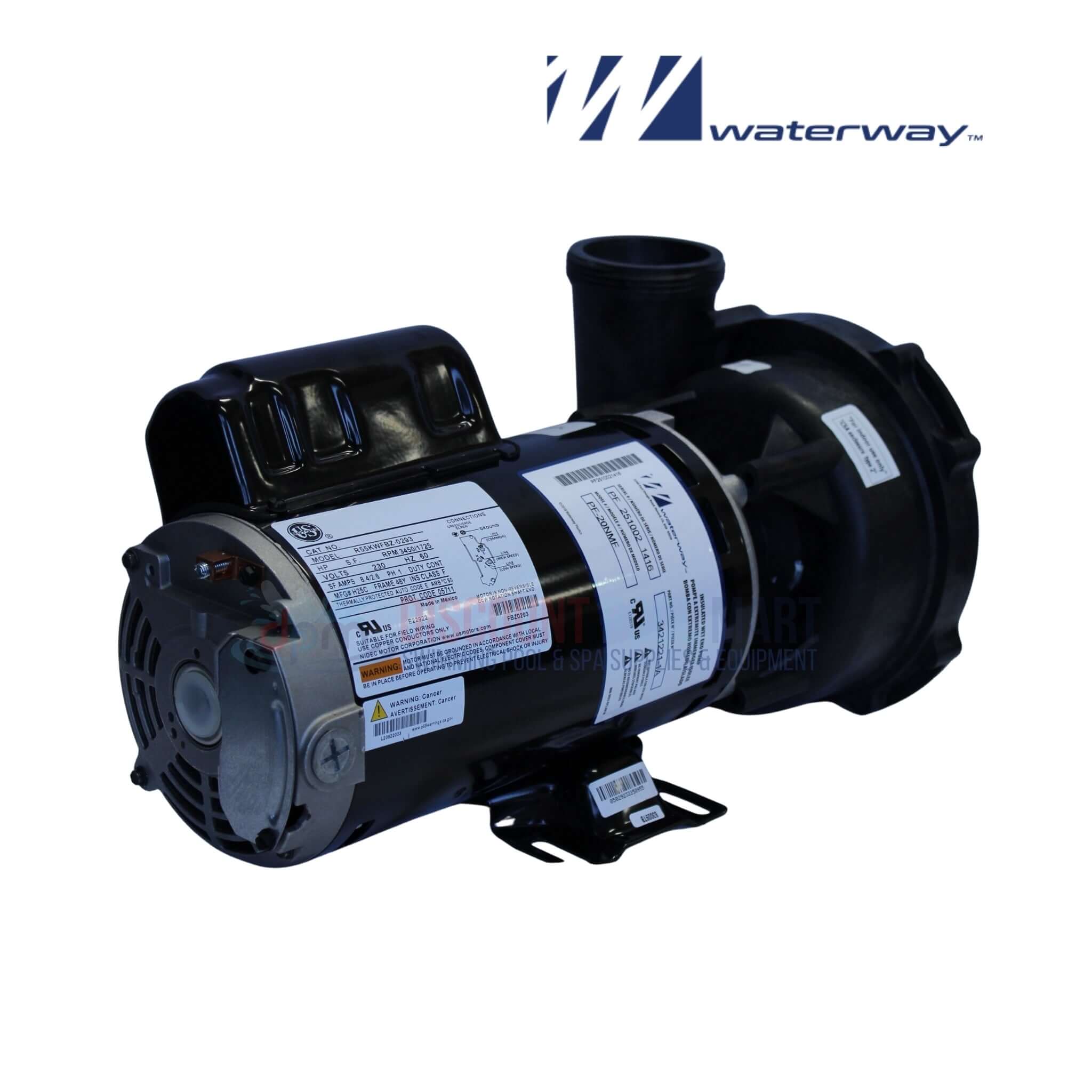

3421221-1A | Waterway 3HP Executive Pump 2 Speed

The Waterway 3421221-1A Executive Pump is a 3 HP, two-speed spa pump built on a rugged 48-frame motor with 230 V power and 2″ intake/discharge ports. Designed for premium spa and hot tub systems, it features a large 6½-inch diameter wet end for higher head pressure—and the wet end can be rotated in 90° increments to align with varying plumbing layouts. The motor is thermally protected and equipped with Viton seals and corrosion-resistant materials (316 stainless casing, silicone carbide seals, etc.) to stand up to harsh spa environments. Whether used for high-flow jets or standard circulation, this model delivers flexibility and durability in one package.

Highlights

• High-Power Dual-Speed Motor: Offers strong performance at high speed (full 3 HP) and efficient operation at low speed—ideal for circulation or jet modes.

• Large 2″ Intake & Discharge Ports: Designed with generous 2-inch male buttress thread connections (measuring approximately 3″ OD) for high flow and compatibility with existing spa plumbing.

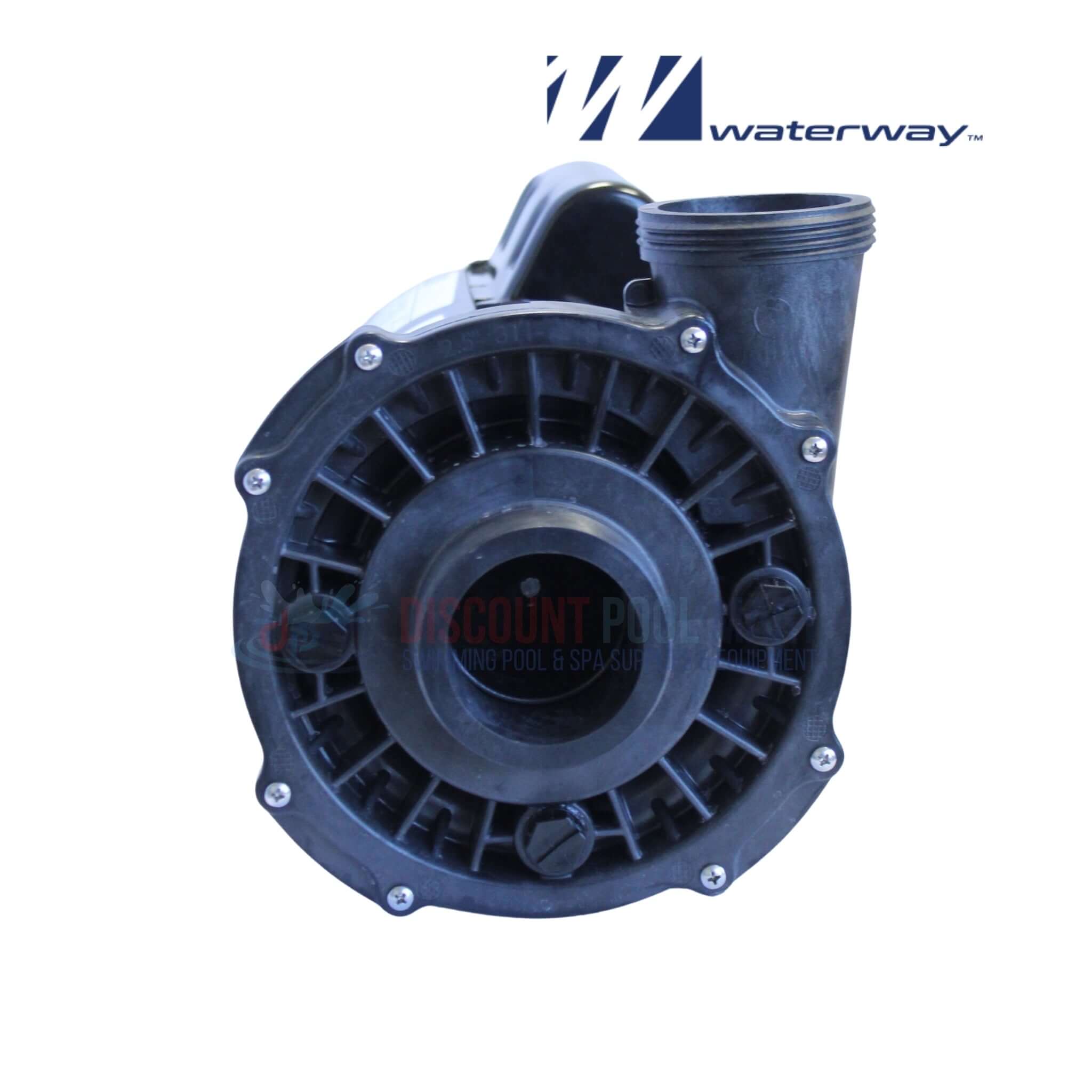

• Rotatable Wet End Design: The wet end can be clocked every 90°, making installation and retrofits easier when space or plumbing alignment is limited.

• Advanced Seal & Casing Construction: Featuring Viton bellows, silicone-carbide shaft seals, and a 316 stainless steel casing, built for durability in chlorinated, brominated or salt environments.

• Thermally Protected Motor: Integrated thermal overload protection helps extend motor life by preventing overheating under heavy duty spa use.

Additional Info

This FAQ helps in-store shoppers verify horsepower, plumbing size, and wet-end orientation before picking up the Waterway Executive 3421221-1A from Discount Pool Mart. It also covers what customers should bring into the store to ensure the pump matches their existing spa system.

Fitment Checks, Frame Size & Plumbing Layout

These answers help walk-in customers confirm compatibility before visiting Discount Pool Mart.

How can I confirm the 3421221-1A matches my current pump?

Check your old pump for 3 HP, two-speed, 230 V, 48-Frame, and 2 inch suction/discharge. If those details match, this model is usually the correct replacement. Bringing pictures to the store helps the staff verify instantly.

Can the wet end rotate to match tight plumbing runs?

Yes. The wet end rotates in ninety-degree increments, allowing easy alignment with horizontal or vertical plumbing routes.

Does this pump fit standard 2 inch spa unions?

Yes. The ports use standard 2 inch unions with male buttress threads, common in most higher-flow spa systems.

High/Low Speed Operation, Jet Output & Motor Protection

These answers describe expected performance after installation.

What does low-speed operation handle?

Low speed supports quiet circulation, filtration, and heater flow—ideal for regular daily operation.

When is high speed used?

High speed delivers full 3 HP jet performance for hydrotherapy and fast water movement.

Does this model include thermal overload protection?

Yes. The motor incorporates thermal safeguards to prevent overheating during extended use.

In-Store Pickup, Unit Inspection & Prep Work

These tips assist customers picking up locally.

What should I bring to the store for verification?

Bring photos of your old pump’s label, plumbing unions, and wiring layout so staff can confirm the correct model before purchase.

Can I inspect the pump at the counter?

Yes. Customers frequently compare their old pump with the new one in store to confirm orientation and mounting style.

Is the pump ready for installation once I get it home?

Yes. After wiring and attaching the unions, the pump is ready for immediate use
