3420610-1A | Waterway 1.5HP Executive Spa Pump 115V
Pickup, delivery and shipping times are estimates, not guarantees.
Couldn't load pickup availability
● 4 in stock30-day returns Secure checkout
Have a question about this part?
Ask about fit, specs or shipping and get an instant answer.
Goes with this part
CA P65 Warning: Cancer and reproductive harm. www.p65warnings.ca.gov

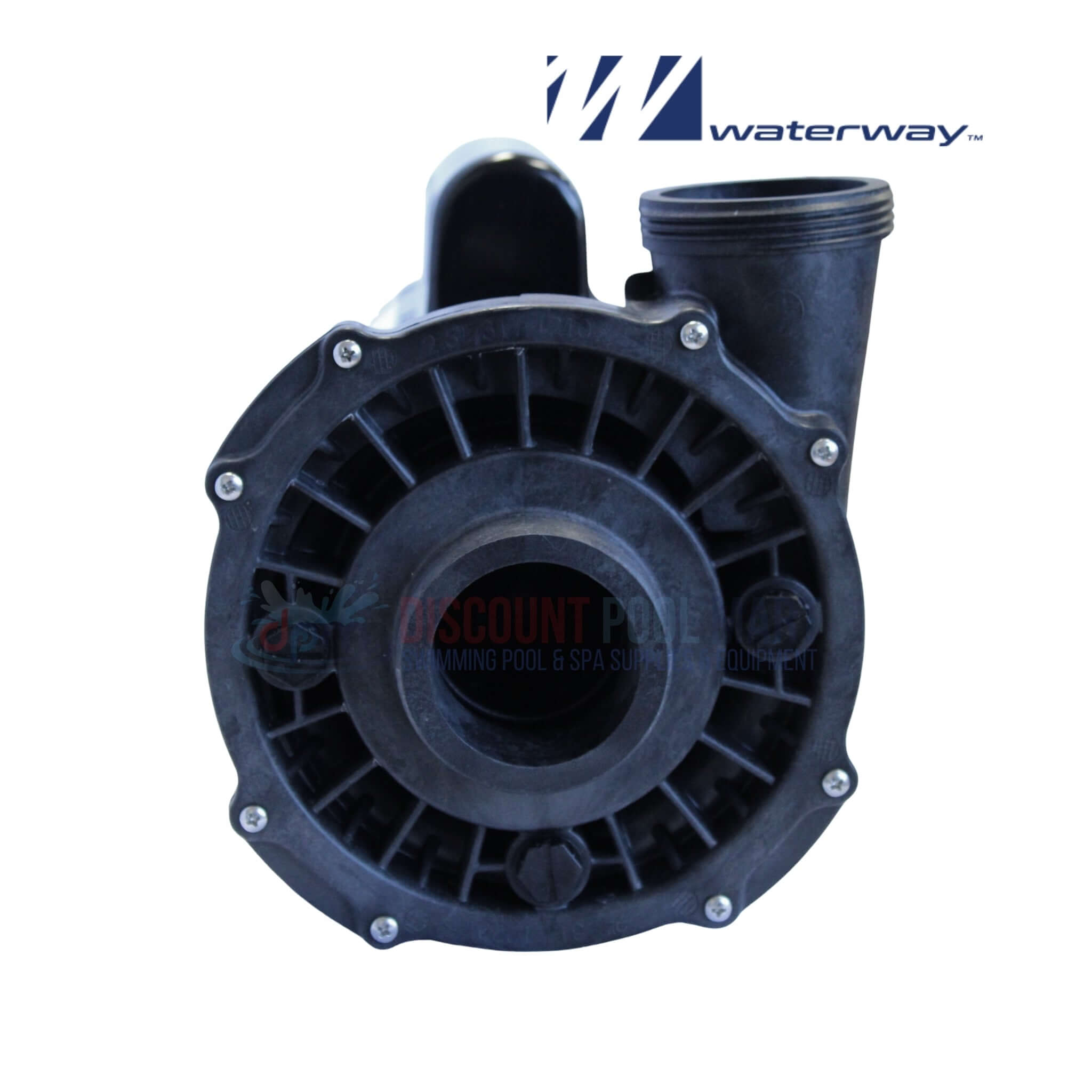

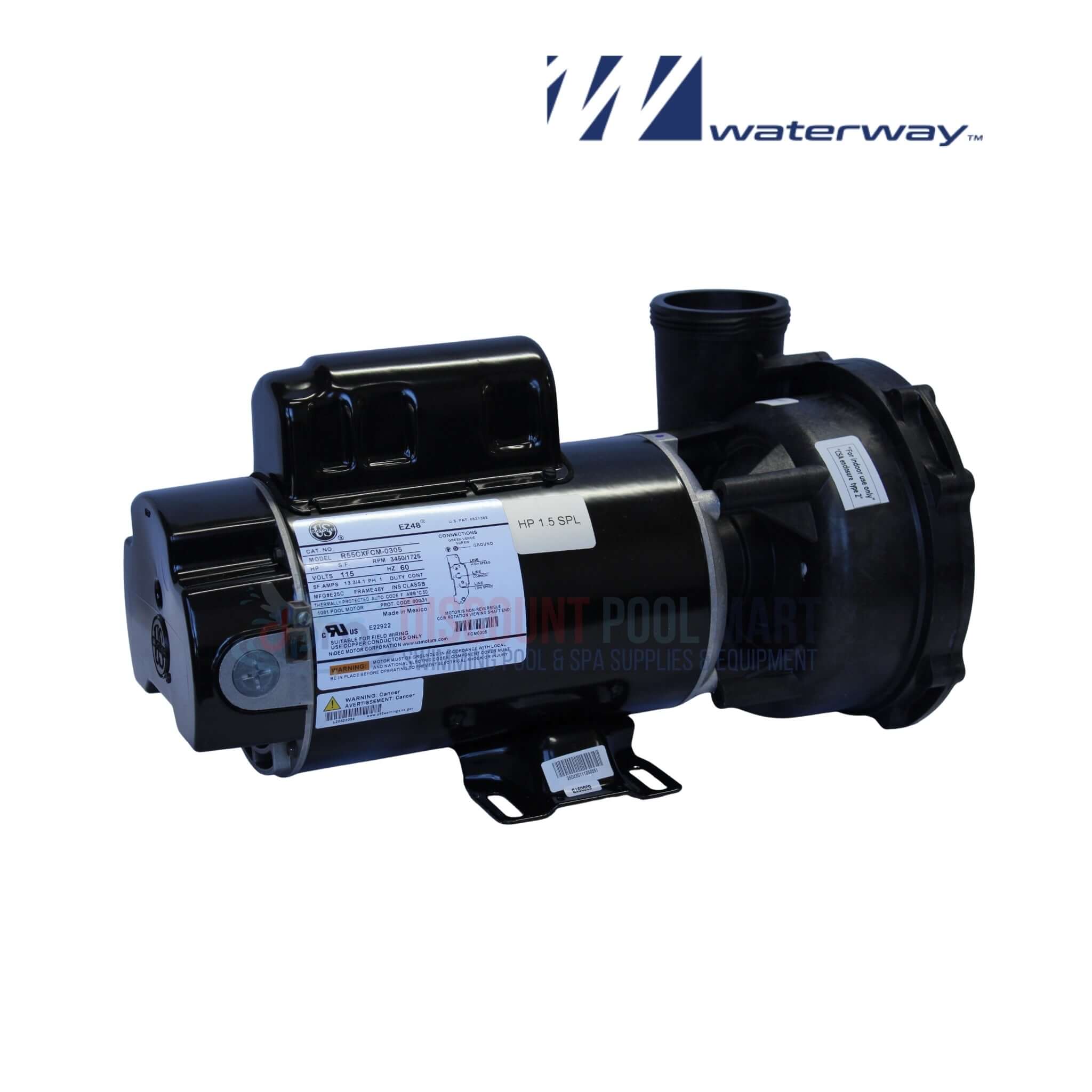

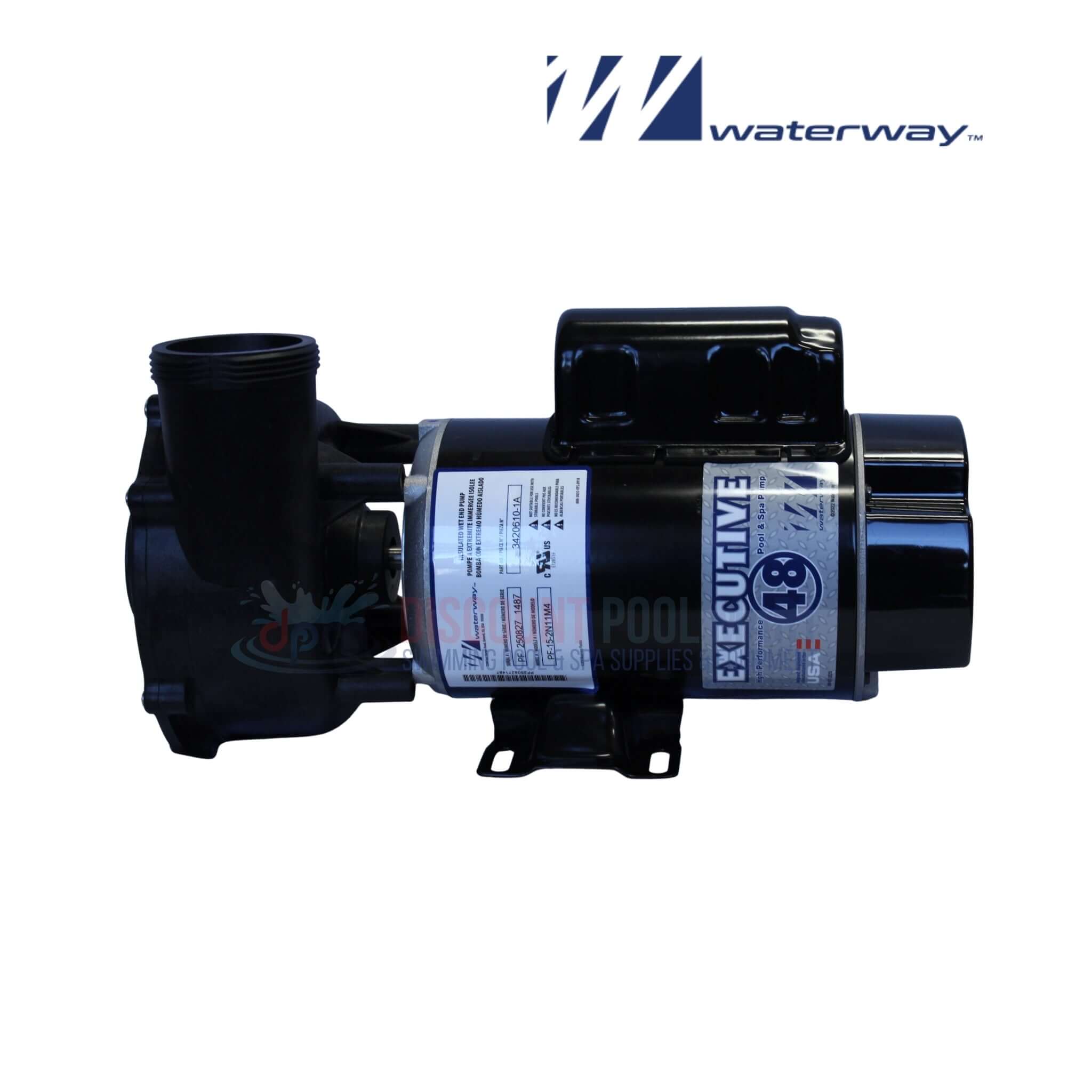

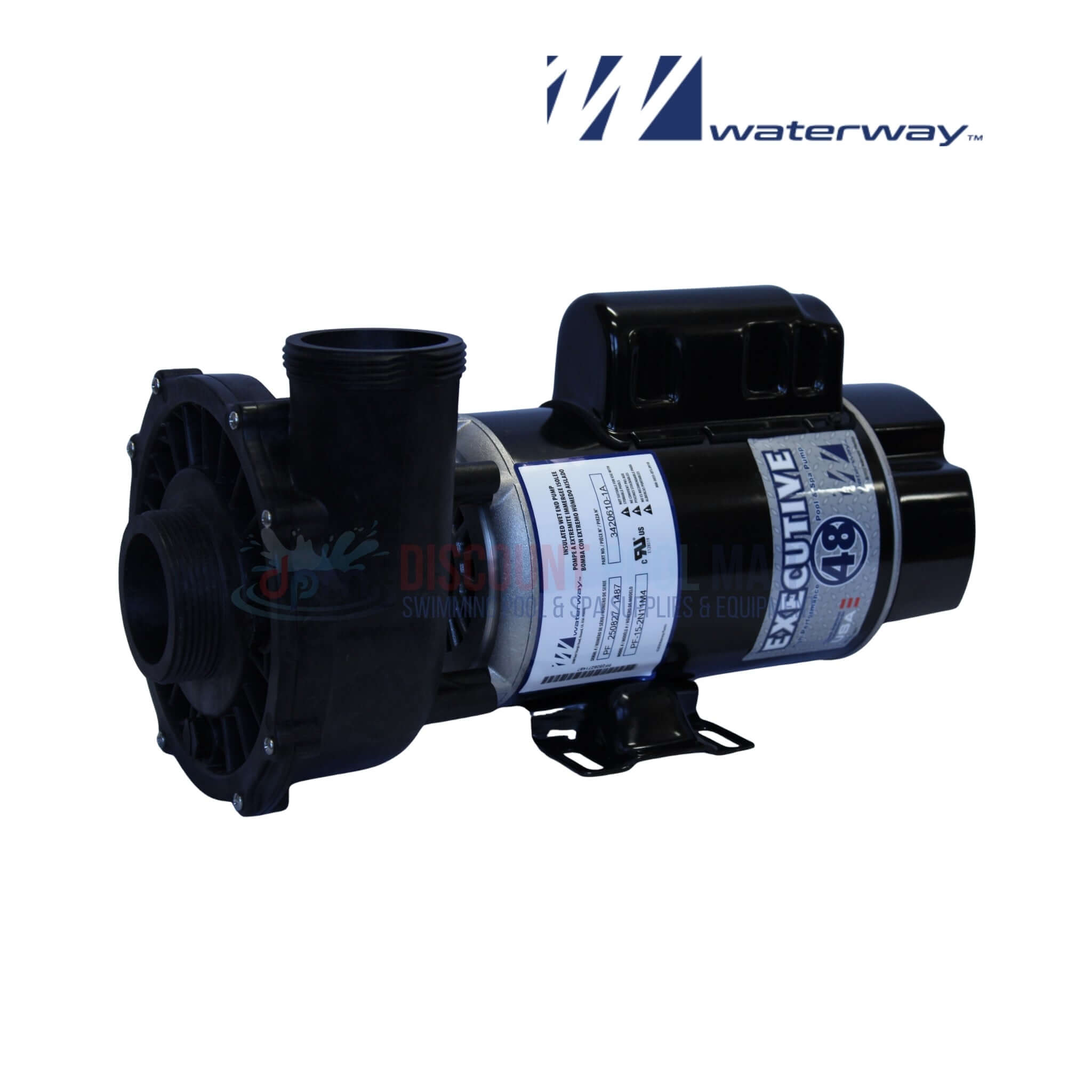

The Waterway Executive 48 Pump (model 3420610-1A) is a premium two-speed spa circulation pump engineered for high performance and durability in both residential and commercial spa environments. With a 1.5 HP motor operating at 115 V, it provides robust water movement whether in high-speed operation for quick turnover or low-speed for quiet, energy-efficient circulation. Featuring a 48-Frame through-bolt motor, 2″ inlet and 2″ outlet ports, and a rotatable wet end that aligns easily during installation, this pump is built to deliver reliable flow and long service life. Thermally protected and built with corrosion-resistant construction, it’s designed to withstand demanding spa conditions while offering simplified maintenance and direct compatibility with most 2″ plumbing systems.
-
1.5 HP Two-Speed Motor: Offers both high (≈13.3 A) and low (≈4.1 A) speed settings for powerful spa circulation or quiet, energy-saving runtime.
-
48-Frame / 2″ Inlet & Outlet: Designed with a 48-frame motor and standard 2″ suction and discharge ports for broad compatibility and performance.
-
Rotatable Wet End Design: The large 6½″ wet end can be rotated every 90° to align with your plumbing orientation, simplifying installation.
-
Thermally Protected & Corrosion-Resistant: Built for spa use with materials and blocking designed to resist chemical exposure, UV, and thermal stress for long-lasting operation.
-
Reliable Spa-Class Flow: Engineered to provide strong water movement and turnover in spa systems, delivering consistent performance under high head-pressure conditions
