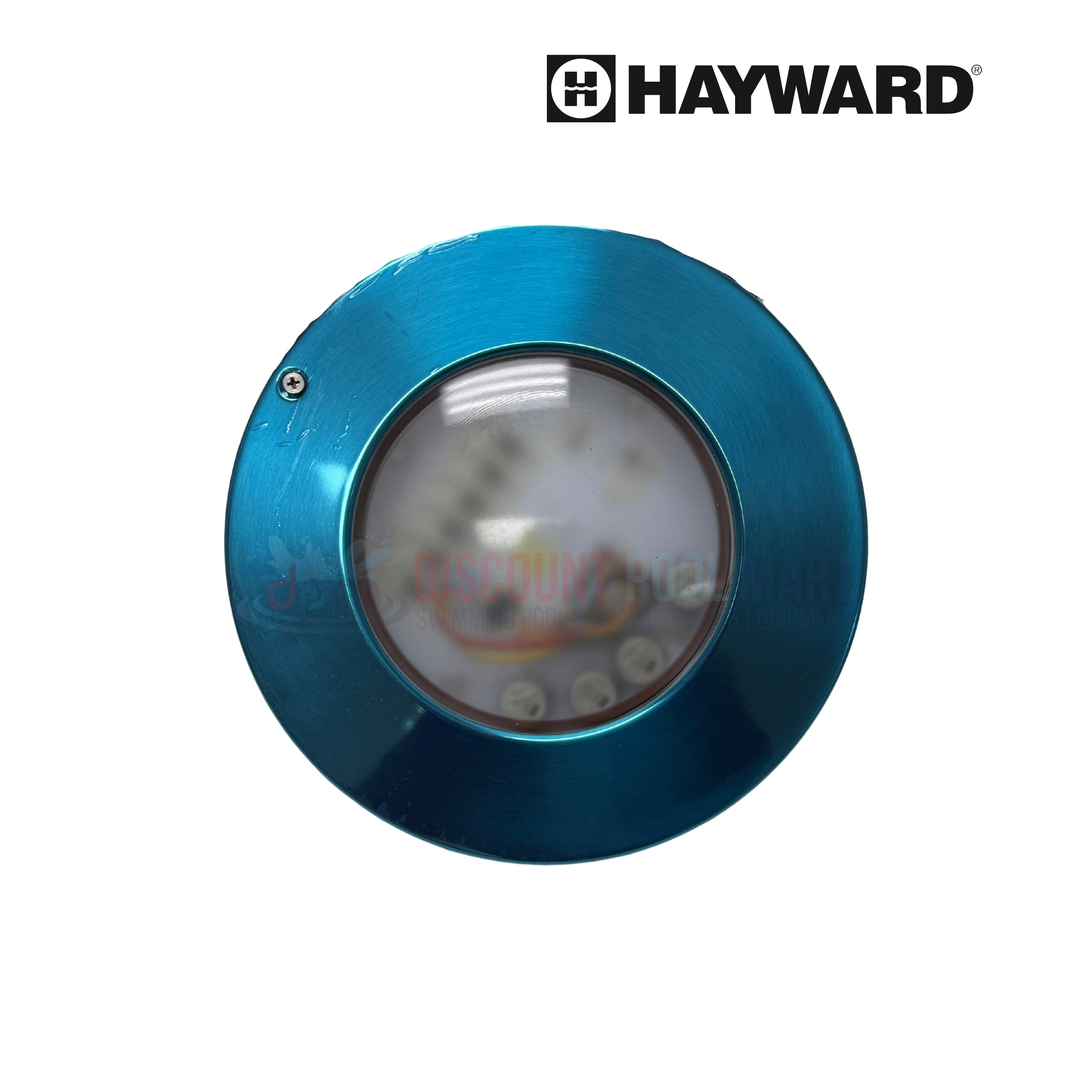

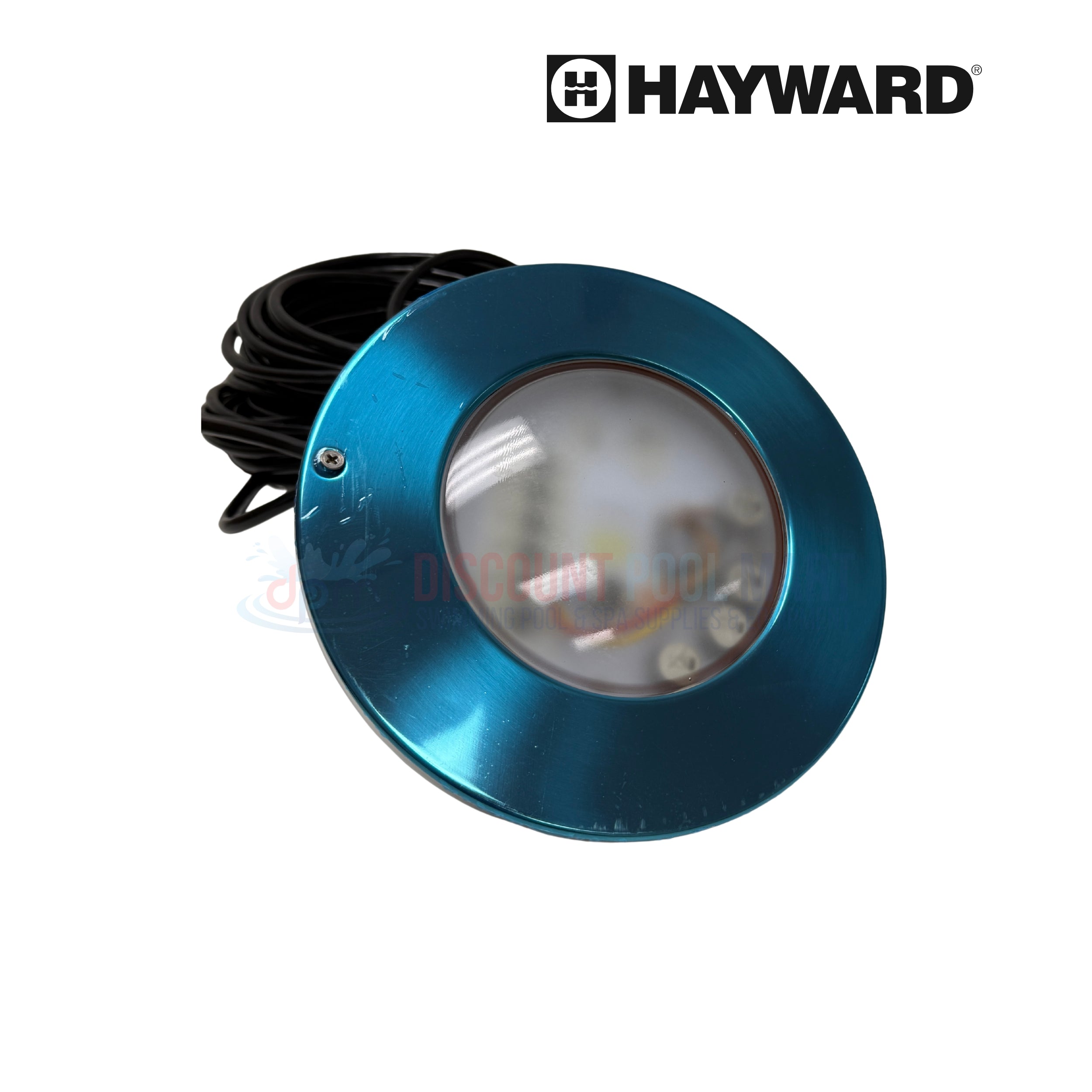

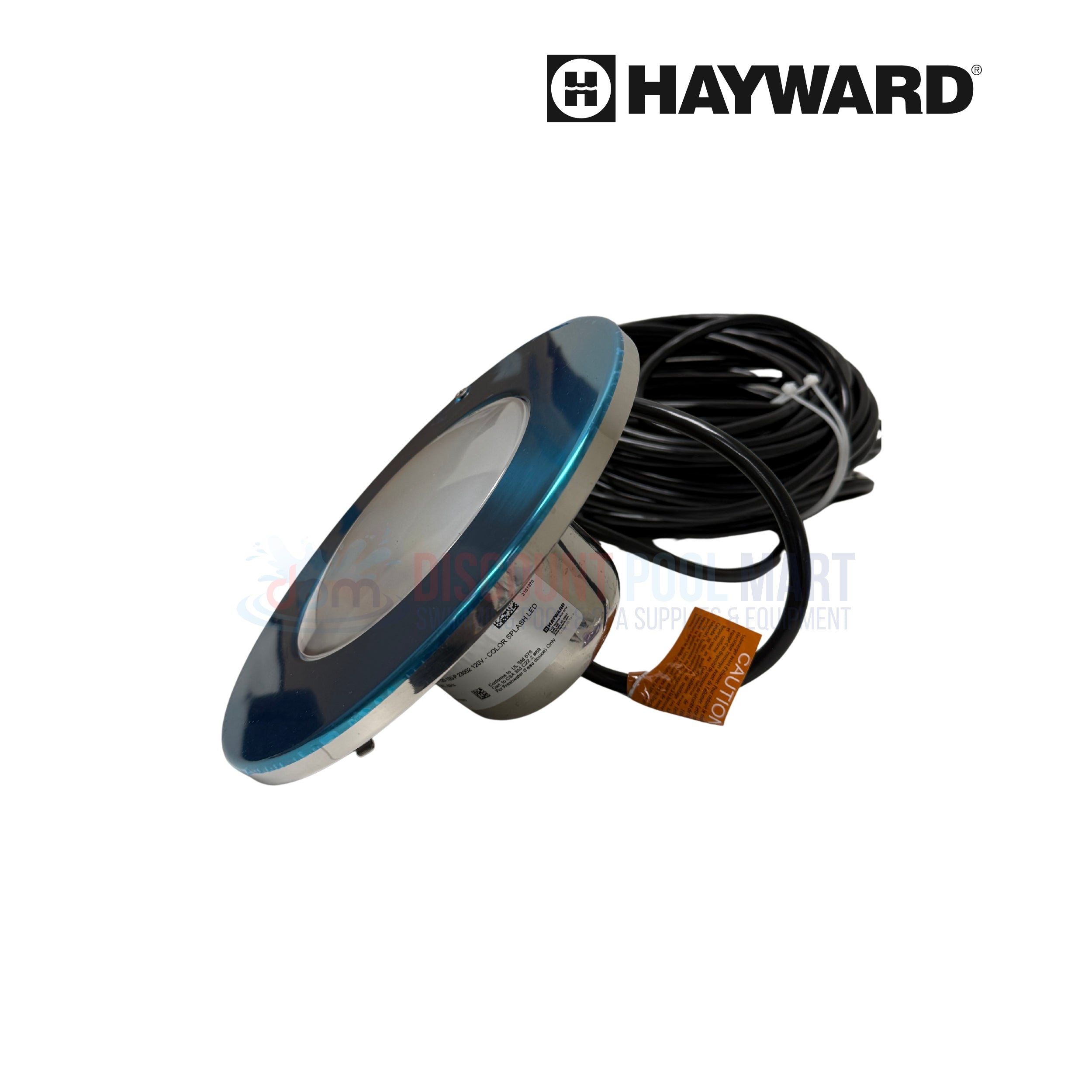

23002 | Hayward ColorSplash LED Pool Light 3900Lm 100 Ft

The Hayward 23002 ColorSplash LED Pool Light is a professional-grade lighting fixture designed for in-ground pools using 120 V power. Producing approximately 3,900 lumens at just 59 watts, this RGB-W (red/green/blue/white) fixture offers dynamic color shows plus a brilliant “PureWhite®” mode. The unit includes a 100-foot cord for flexible installation and integrates with automation systems from Hayward®, Pentair® and Jandy®. With a durable stainless steel faceplate and wide-angle LED optics, it delivers immersive lighting coverage while reducing energy consumption and maintenance.

Highlights

• High-Output RGB-W Illumination: Combines full range of colors including a dedicated white circuit for crisp, bright white light and vibrant color shows.

• Energy-Efficient & Bright: Delivers ~3,900 lumens while operating at only ~59 watts—significantly lower consumption compared to equivalent incandescent fixtures.

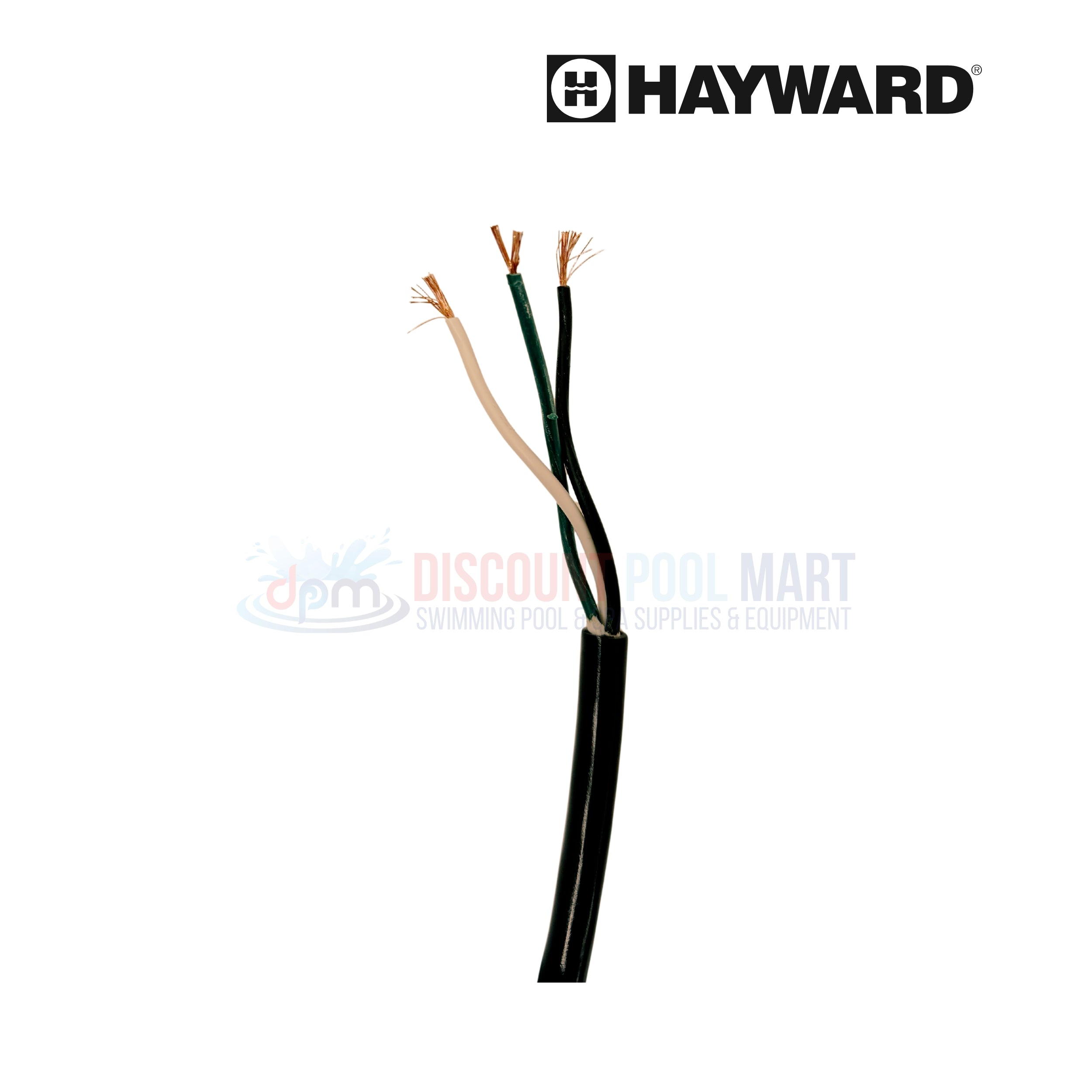

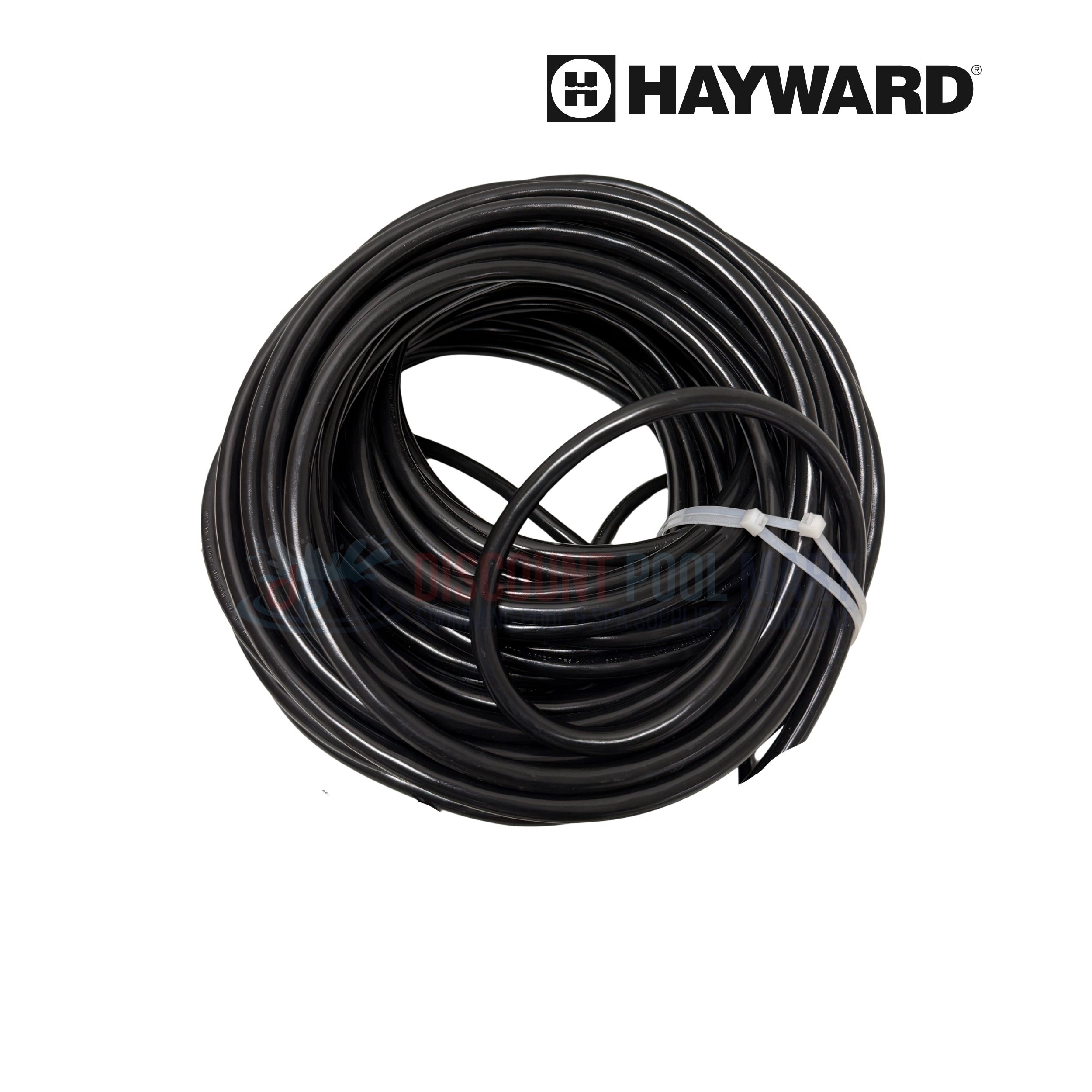

• 100-Foot Cord for Versatile Installation: The extended 100-foot power cord gives flexibility for deeper niches or more challenging installer setups without needing extension cords.

• Wide-Angle Optics & Uniform Output: Engineered with wide-angle LEDs to ensure even illumination across pool surfaces and strong saturation in color mode.

• Automation & Retrofit Friendly: Compatible with major pool automation systems and designed to retrofit existing in-ground light niches—ideal upgrade from traditional incandescent fixtures.

Specifications

• Cord Length - Lighting: 100 ft

• Equivalent Incandescent Wattage: 500 W

• Trim Material: Stainless Steel

• Lumen Output (Brightness): 3900

• Number of Colors: 5

• OmniDirect Compatible: No

• Series Lighting: ColorSplash

• Sub Brand: J & J Lighting

• Type Lighting: LED

• Voltage - Lighting: 120V

• Watts: 59 W

Additional Info

Looking to upgrade your in-ground pool lighting to the Hayward 23002 ColorSplash LED Pool Light? This section covers installation guidance, setup compatibility, and in-store fitment details to help ensure flawless installation and vibrant results.

Installing the Hayward 23002 ColorSplash LED Light

This 120V RGB-W LED fixture is designed for quick retrofit installation into most standard pool niches. The 100-foot cord offers flexibility for complex pool layouts and deeper installations.

How to install Hayward 23002 ColorSplash LED light into an existing pool niche

Should the lens gasket or stainless-steel face ring be replaced during installation

Can 23002 connect to Hayward, Pentair, and Jandy automation systems

Where to buy Hayward 23002 ColorSplash LED pool light in store today

How to test the RGB-W and PureWhite modes before securing underwater

Troubleshooting Lighting or Control Issues

If the 23002 light fails to power up, flickers, or desynchronizes, check automation settings, voltage output, or wiring polarity. These FAQs help resolve common setup and operational concerns.

Why is my Hayward 23002 ColorSplash LED not responding to automation commands

How to sync multiple 23002 lights for coordinated color shows

Can incorrect wiring cause one light to stay on white while others cycle colors

What causes flickering or reduced brightness on LED fixtures

How to reset the 23002 light back to factory color sequence

Confirming Compatibility and In-Store Fitment

The Hayward 23002 belongs to the J&J Electronics ColorSplash XG-W Series and is compatible with most standard 120V light housings. Confirm your niche dimensions and voltage before purchase.

How to confirm Hayward 23002 fits my current light housing and conduit

Can I bring my old light to compare in store before purchasing

Is the Hayward 23002 ColorSplash available locally for same-day pickup

Which pool stores near me carry ColorSplash LED fixtures

What’s the in-store part reference number for the 23002 LED light
