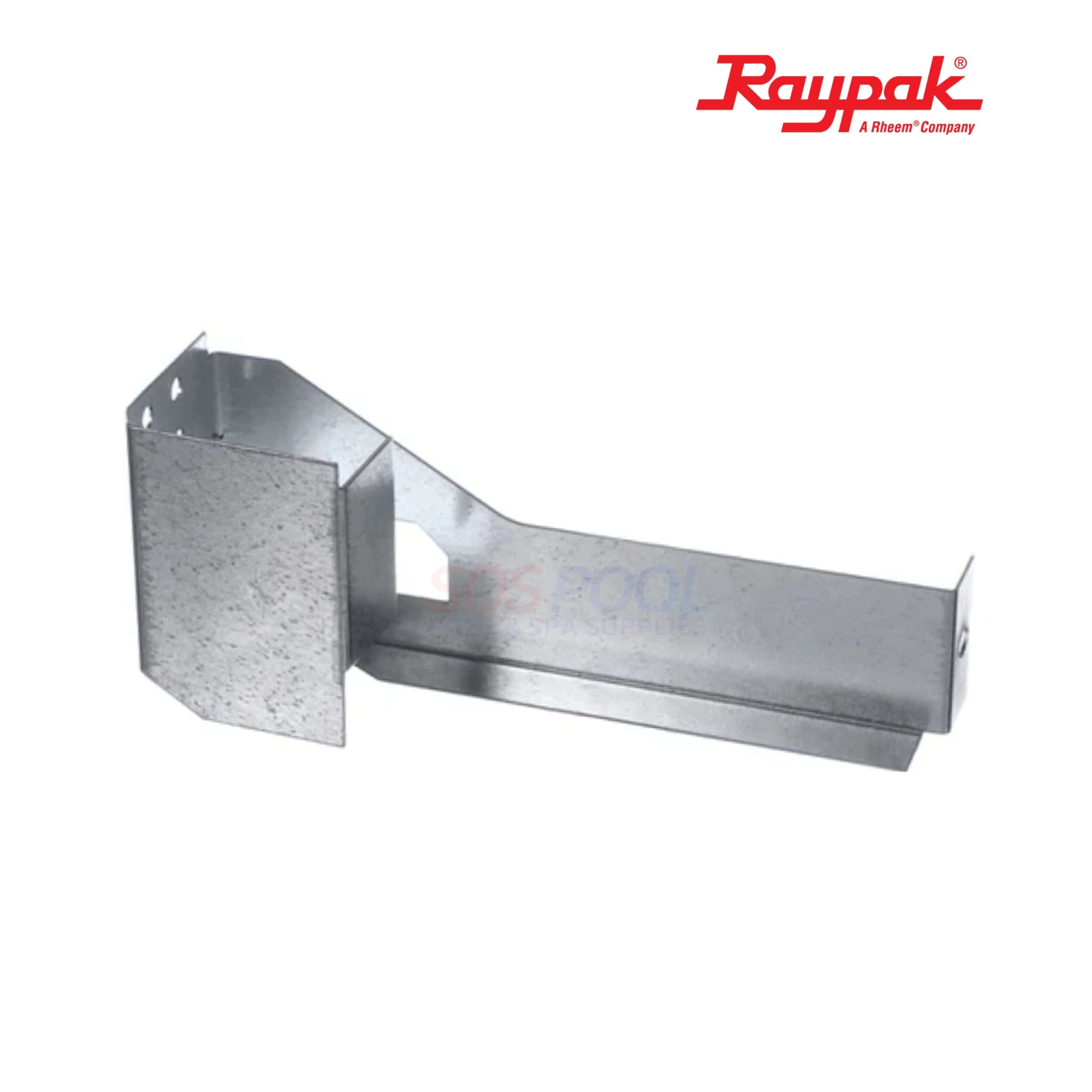

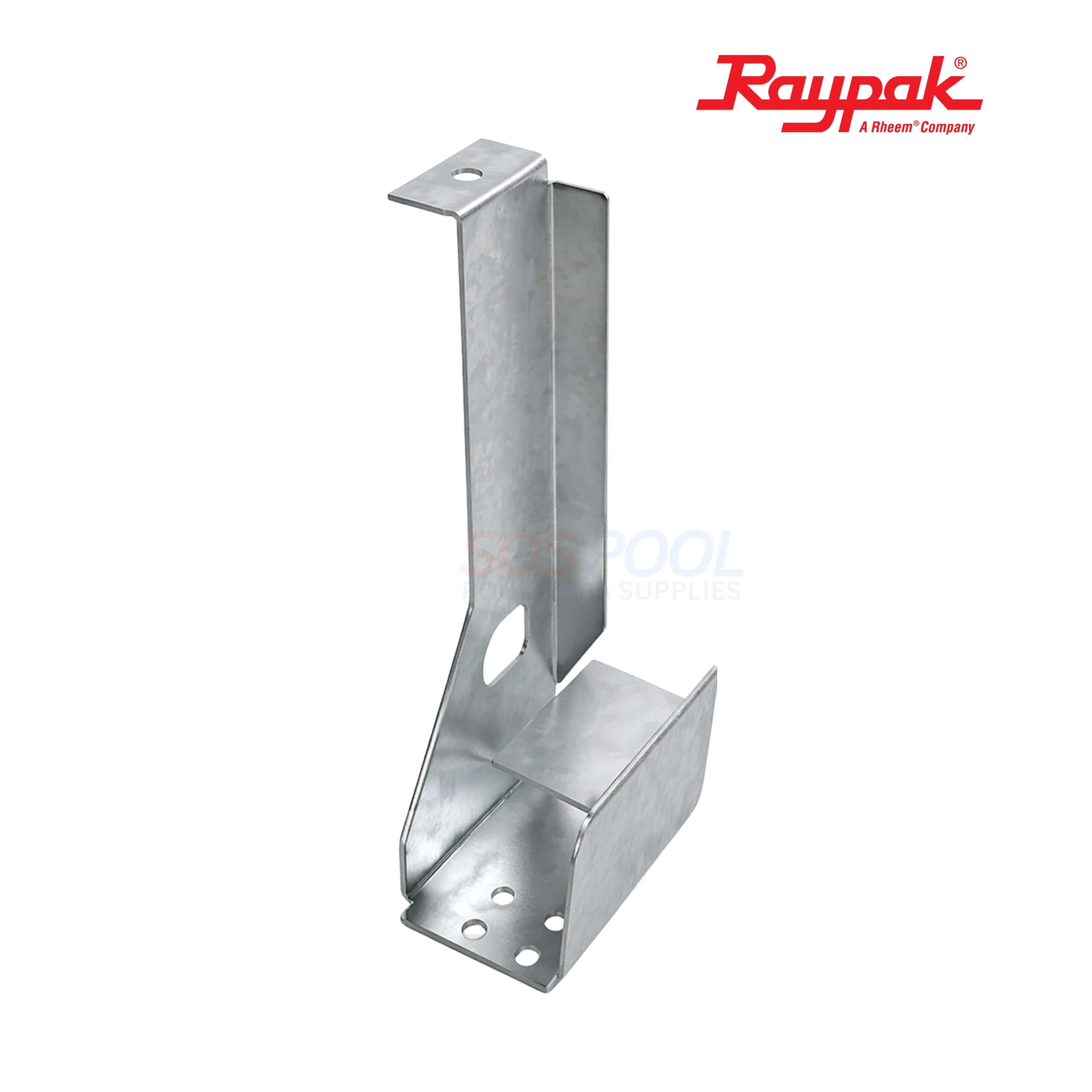

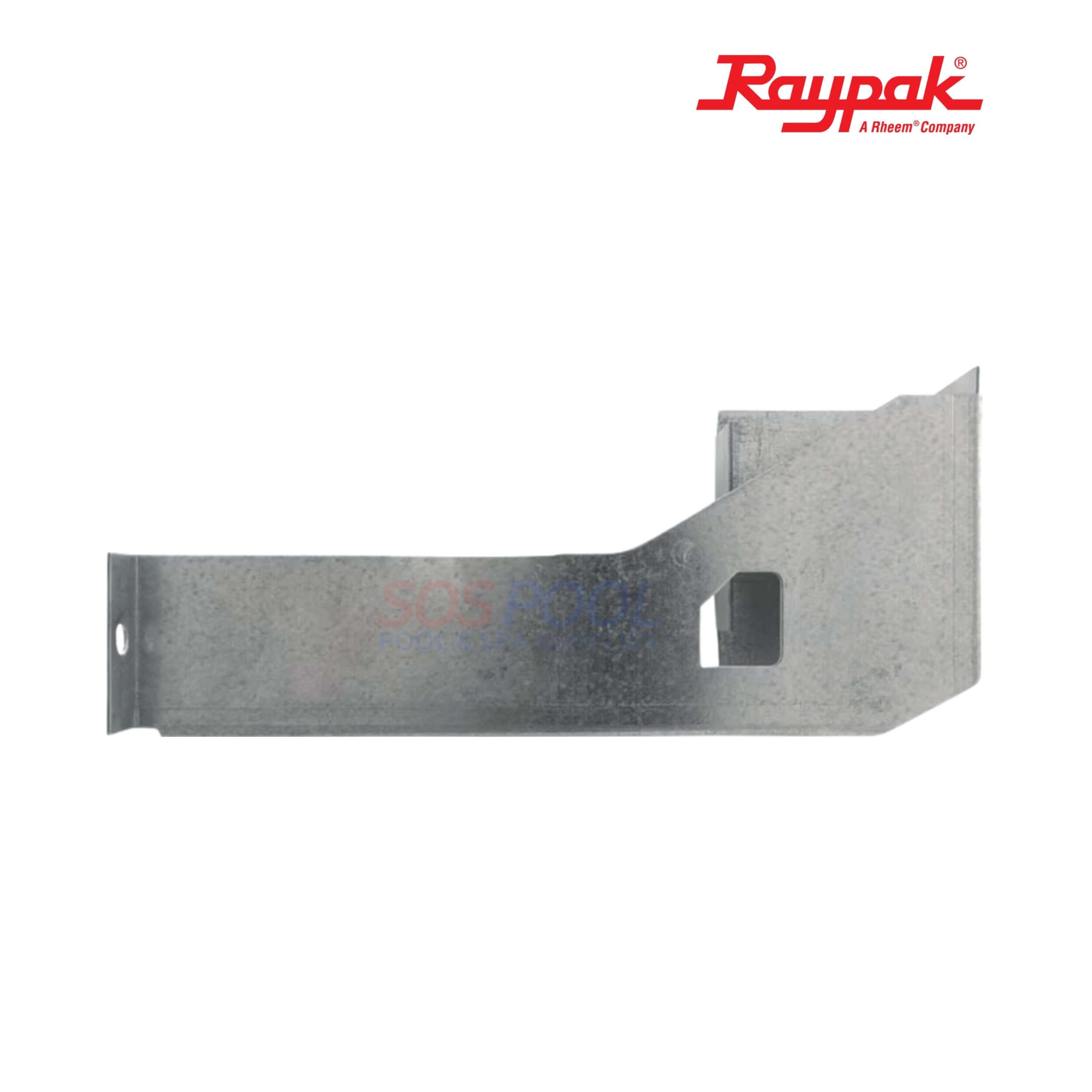

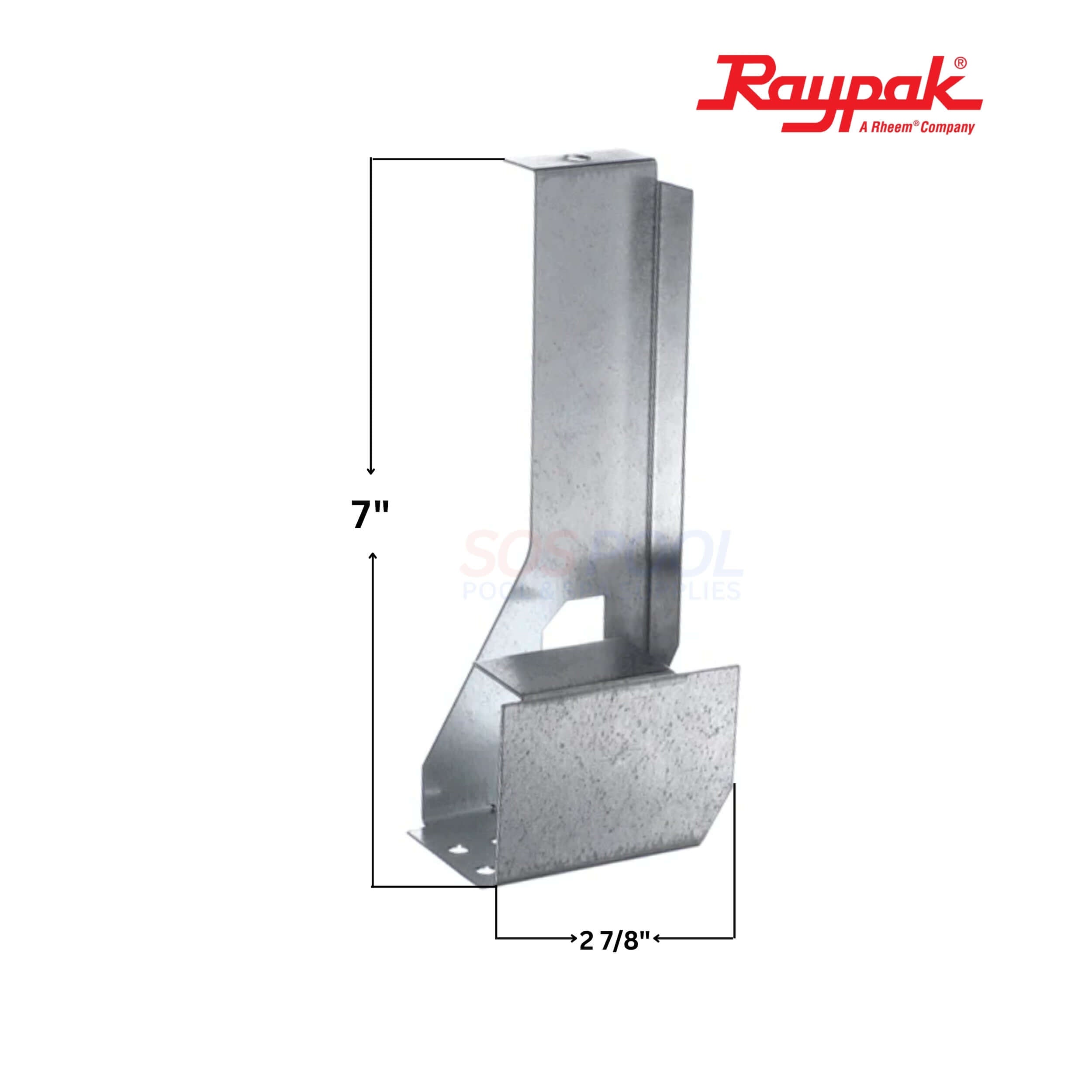

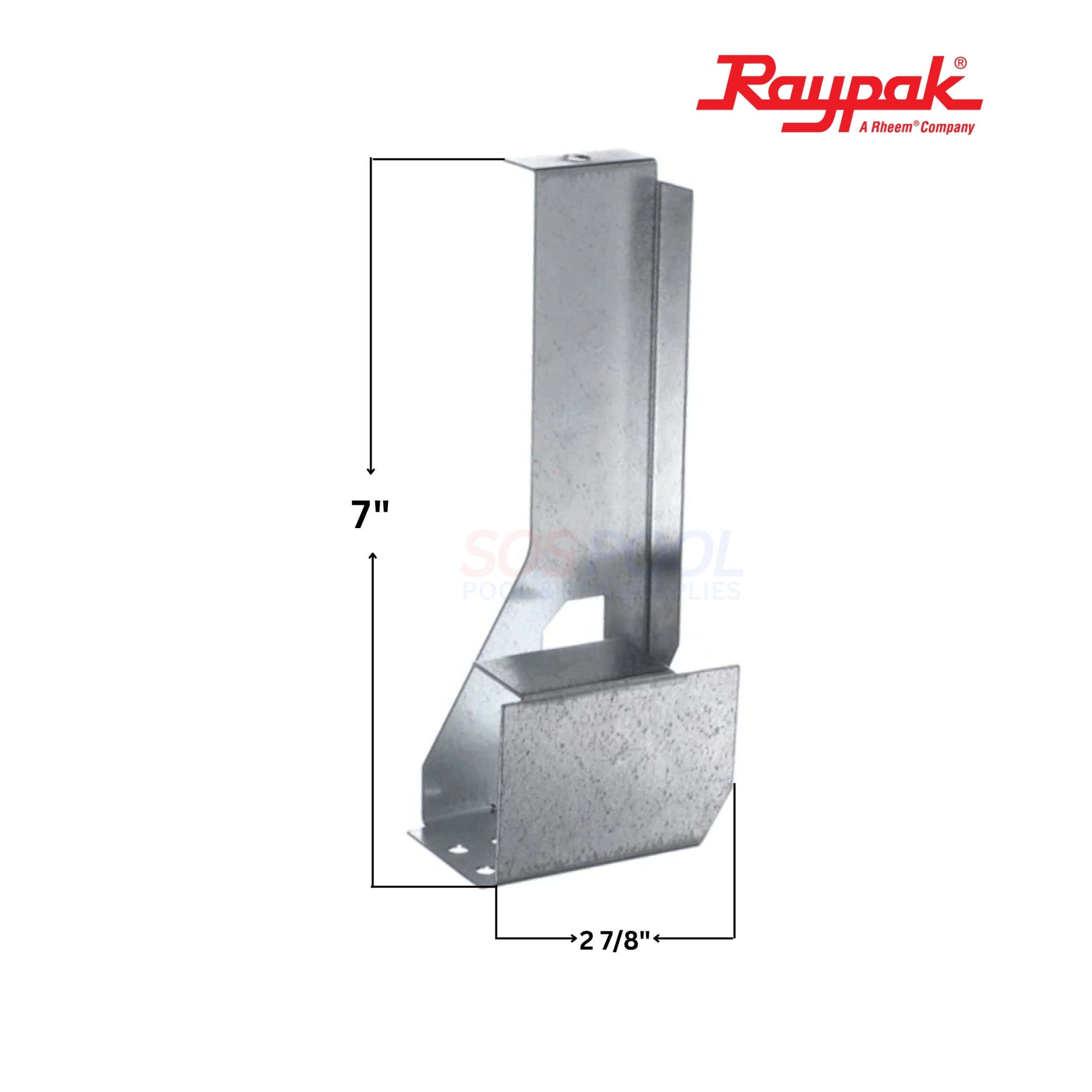

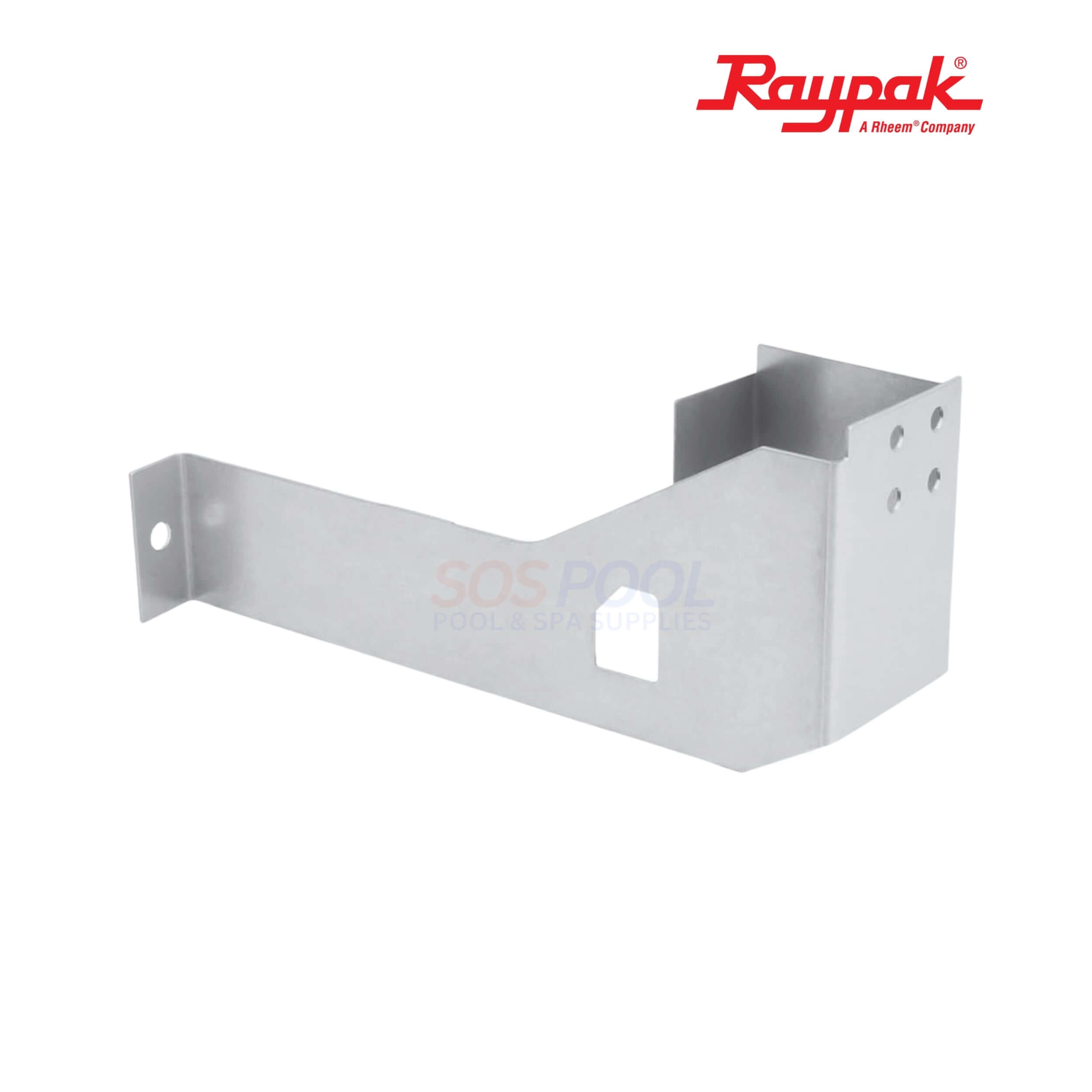

100-10000419 | Raypak Pilot Mounting Bracket Kit
Pickup, delivery and shipping times are estimates, not guarantees.
Couldn't load pickup availability
Have a question about this part?
Ask about fit, specs or shipping and get an instant answer.
Goes with this part
CA P65 Warning: Cancer and reproductive harm. www.p65warnings.ca.gov
OEM Raypak Pilot Mounting Bracket Kit 100-10000419 is designed to securely support and position the pilot assembly in compatible Raypak pool and spa heaters. This kit ensures proper alignment of the pilot components, allowing consistent ignition and stable heater operation. Constructed from durable, heat-resistant materials, it withstands high-temperature environments and long-term exposure inside the combustion chamber. Compatible with Raypak IID, Gemini, Versa, RP2100, and select digital heater models, it replaces worn or corroded brackets that can lead to ignition issues. Installing this OEM kit restores proper pilot positioning and helps maintain reliable heater performance.
- OEM Fit & Compatibility: Designed for Raypak heaters including IID, Gemini, Versa, RP2100, and select digital models for precise installation and function.
- Critical Pilot Support: Secures and aligns the pilot assembly to ensure consistent ignition and proper heater operation.
- Durable Heat-Resistant Build: Constructed to withstand high temperatures and combustion chamber conditions over extended use.
- Restores Ignition Reliability: Replacing worn or corroded brackets helps correct ignition failure and unstable pilot performance.
- Complete Service Kit: Includes mounting bracket and necessary hardware for proper installation and long-term support.
Pilot Bracket Fitment and Heater Compatibility
This section explains which Raypak heater models use the 100-10000419 bracket and how to confirm compatibility before installation. It also covers signs that the existing bracket is worn or misaligned.
How do I confirm the Raypak 100-10000419 pilot bracket fits my IID or RP2100 heater?
Check your heater model and compare the existing pilot bracket shape and mounting points. The 100-10000419 kit is designed for IID, Gemini, Versa, and RP2100 units with similar pilot layouts. Matching mounting hole positions is key to confirming compatibility.
Will this pilot mounting bracket work with Raypak digital heater models?
Some digital Raypak heaters use the same pilot support configuration. Verify the bracket style and pilot assembly location before installation. If the bracket design matches, the kit will align correctly.
What are the signs that my pilot bracket needs replacement?
Common signs include a loose pilot flame, inconsistent ignition, or visible corrosion on the bracket. A misaligned pilot can prevent proper flame contact with the sensor. Replacing the bracket restores stable positioning.
Installing and Aligning the Pilot Assembly
This section covers how to properly install the bracket and ensure the pilot assembly is positioned correctly. Proper alignment is critical for ignition reliability and safe heater operation.
How do I install the Raypak 100-10000419 pilot mounting bracket correctly?
Remove the old bracket and clean the mounting area before installing the new one. Secure the bracket firmly using the included hardware. Make sure the pilot assembly sits straight and stable after installation.
Why is pilot alignment important when installing a new mounting bracket?
Incorrect alignment can cause ignition delays or failure. The flame must properly reach the thermocouple or sensor. A correctly installed bracket keeps the pilot in the right position for consistent ignition.
What should I check if the pilot still won’t stay lit after replacing the bracket?
Verify that the pilot flame is properly directed at the sensor. Check gas flow and ensure no debris is blocking the pilot orifice. Also confirm the bracket is not slightly bent or installed off-center.
Finding the Right Part In Store
This section helps customers verify the correct bracket before visiting a Discount Pool Mart location. It also explains how to compare the kit with existing hardware to avoid mismatches.
Can I bring my old pilot bracket to the store to match it with the 100-10000419 kit?
Yes, bringing your existing bracket helps ensure an exact match. Store staff can compare mounting points and size. This is the most reliable way to confirm compatibility before purchasing.
Is the Raypak 100-10000419 pilot bracket available locally for same-day pickup?
Many customers check availability locally before heading in. Discount Pool Mart locations often stock common Raypak service parts. Calling ahead can help confirm availability.
What should I ask in store if I’m unsure this bracket fits my heater?
Ask about compatibility with your specific heater model and pilot assembly type. Providing your heater model number or photos can help staff verify fitment. This avoids incorrect purchases.
