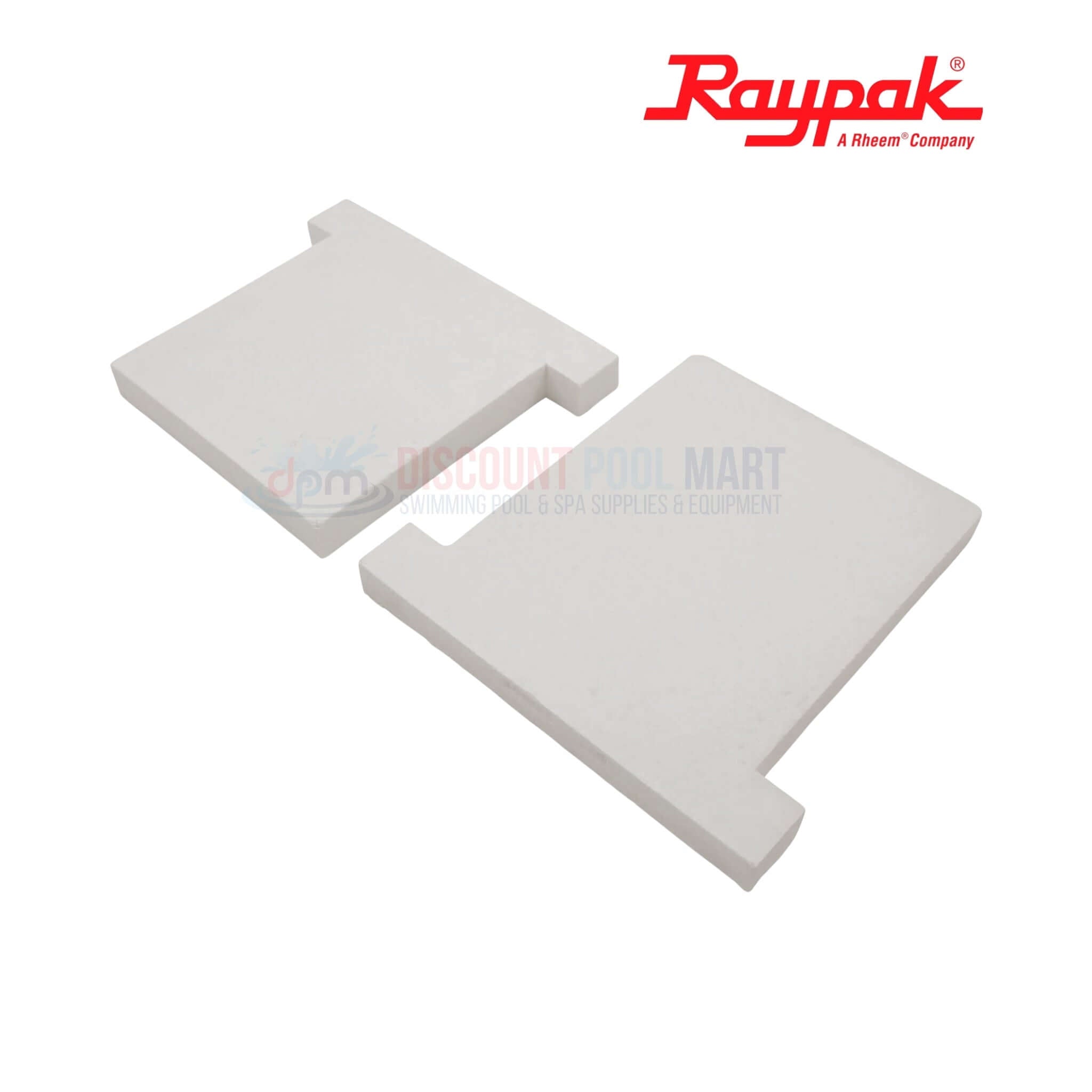

The Raypak 010080F Front & Rear Refractory Kit is a genuine OEM replacement designed to restore the firebox shielding in 207A, 207B, 407A, and 407B (Low-NOx / IID digital) heater models. The kit includes both front and rear refractory common blocks (“commons”) that protect metal firebox walls from direct flame exposure, heat stress, and erosion. Using these refractory blocks helps maintain proper combustion efficiency, guards heater structural integrity under high-temperature cycles, and reduces heat loss. When the existing refractory has cracked, deteriorated, or degraded through operation, replacing with the 010080F kit helps preserve performance and safety.
Highlights
-
Includes Both Front & Rear Commons: Provides full firebox protection by replacing both front and rear refractory blocks to shield internal metal from high-heat flame exposure.
-
OEM Fit for 207A-407A Series: Engineered specifically for Raypak 207A, 407A (and B variants), matching factory dimensions for secure fit and proper flame path alignment.
-
Restores Combustion Efficiency: Replacing damaged refractory helps reduce radiant heat loss and flame impingement, improving burner stability and maintaining proper heat transfer.
-
High-Heat Durable Material: Made from refractory ceramics rated for repeated thermal cycling, high temperatures, and exposure to combustion by-products—less prone to cracking or erosion.
-
Critical for Heater Longevity & Safe Operation: Worn commons can cause hot spots, damage to headers or heat exchangers, and degraded safety sensor readings; this kit helps prevent those risks.
Compatibility
- Raypak Digital Low NOx Heater Models: 207A, 267A, 337A, and 407A
Additional Info
Need help with the Raypak 010080F Front & Rear Refractory Kit? This OEM set is made for Raypak 207A, 407A, and B-series heaters. Below you’ll find installation advice, troubleshooting help, and details on where to buy in store.
Installing the 010080F Refractory Kit
The kit includes both front and rear refractory commons. Correct alignment inside the firebox ensures proper flame shielding and safe heater operation.
How do I install the Raypak 010080F kit in a 407A Low-NOx heater?
What parts are included in the 010080F refractory kit in store?
Can I buy the 010080F refractory kit in store for same-day replacement?
Does the 010080F kit cover both the front and rear refractory commons?
How should the blocks be positioned for proper flame path alignment?
Diagnosing Firebox and Combustion Issues
Cracked or missing refractory can lead to flame impingement, hot spots, or inefficient heating. Replacing with the 010080F restores protection.
Why is my Raypak 207A heater showing hot spots on the firebox wall?
Could broken refractory cause my 407B model to overheat?
What are the symptoms of worn refractory in a Raypak Low-NOx heater?
Does replacing the 010080F restore proper combustion efficiency?
Can failing refractory damage headers or heat exchangers?
Finding the Right Part In Store
The 010080F is engineered specifically for Raypak 207A/407A and B models. Bring your model tag to confirm the right fit before buying.
Where can I buy the Raypak 010080F refractory kit locally today?
Is the 010080F available in store for 207A and 407A heaters?
Can I walk in and match my old refractory with the 010080F kit?
How do I confirm in store that the 010080F fits my heater model?
Will local stock include both front and rear refractory blocks together?
