010062F | Raypak 406A/407A Copper Tube Bundle Heat Exchanger
Fits these models (2)
Pickup, delivery and shipping times are estimates, not guarantees.
Couldn't load pickup availability
● 2 in stock30-day returns Secure checkout
Have a question about this part?
Ask about fit, specs or shipping and get an instant answer.
Goes with this part
CA P65 Warning: Cancer and reproductive harm. www.p65warnings.ca.gov

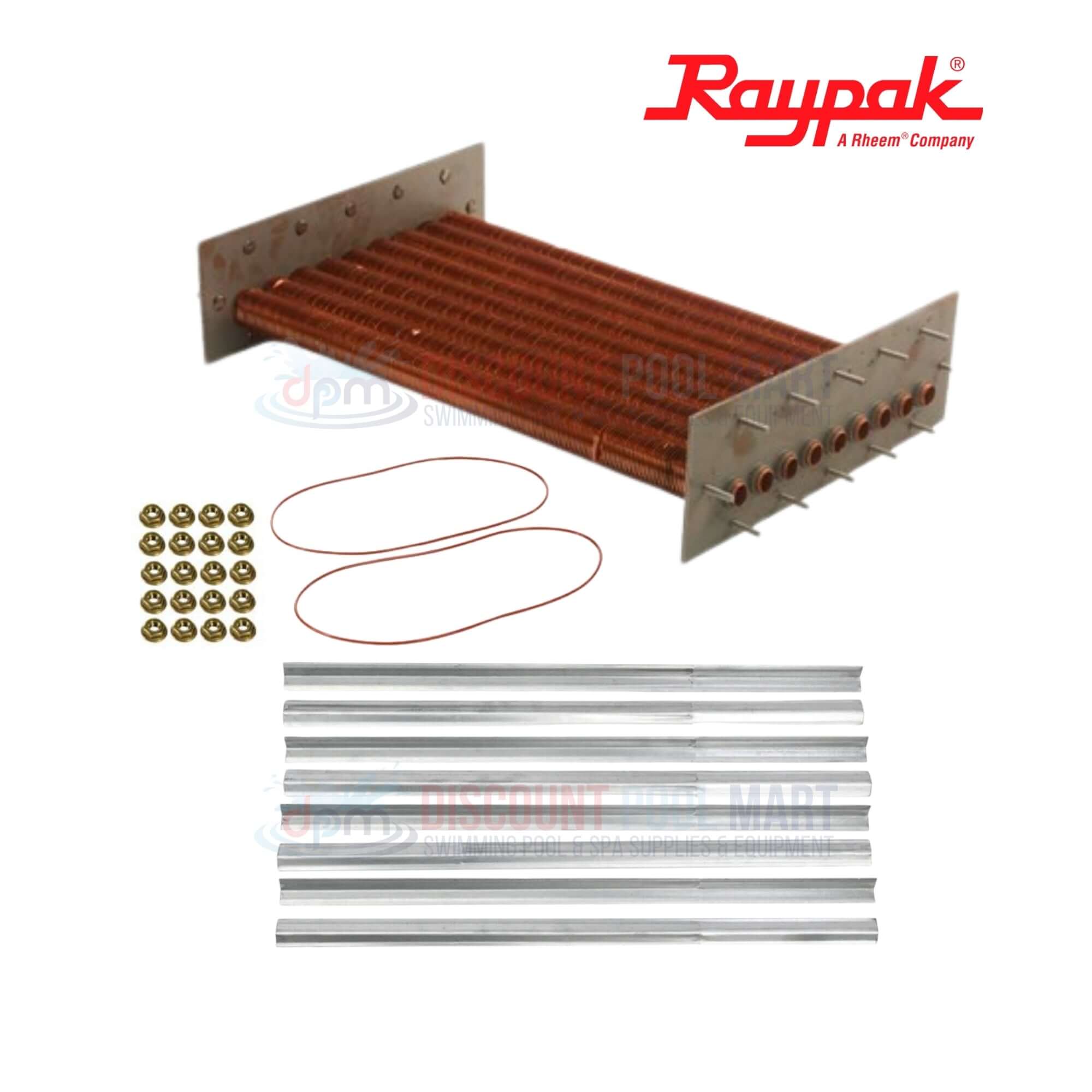

The Raypak 010062F Copper Tube Bundle Heat Exchanger is a genuine OEM replacement for Raypak 406A and 407A pool heater models with polymer headers. This complete kit includes all nine copper heat-exchange tubes, flange nut fasteners, header gaskets, internal baffles, and mounting hardware required for full restoration. Built to deliver efficient thermal transfer and safe, reliable operation, it remedies issues caused by scaled, corroded, or damaged heat exchanger components. Ideal for restoring heater performance, safety, and longevity.
-

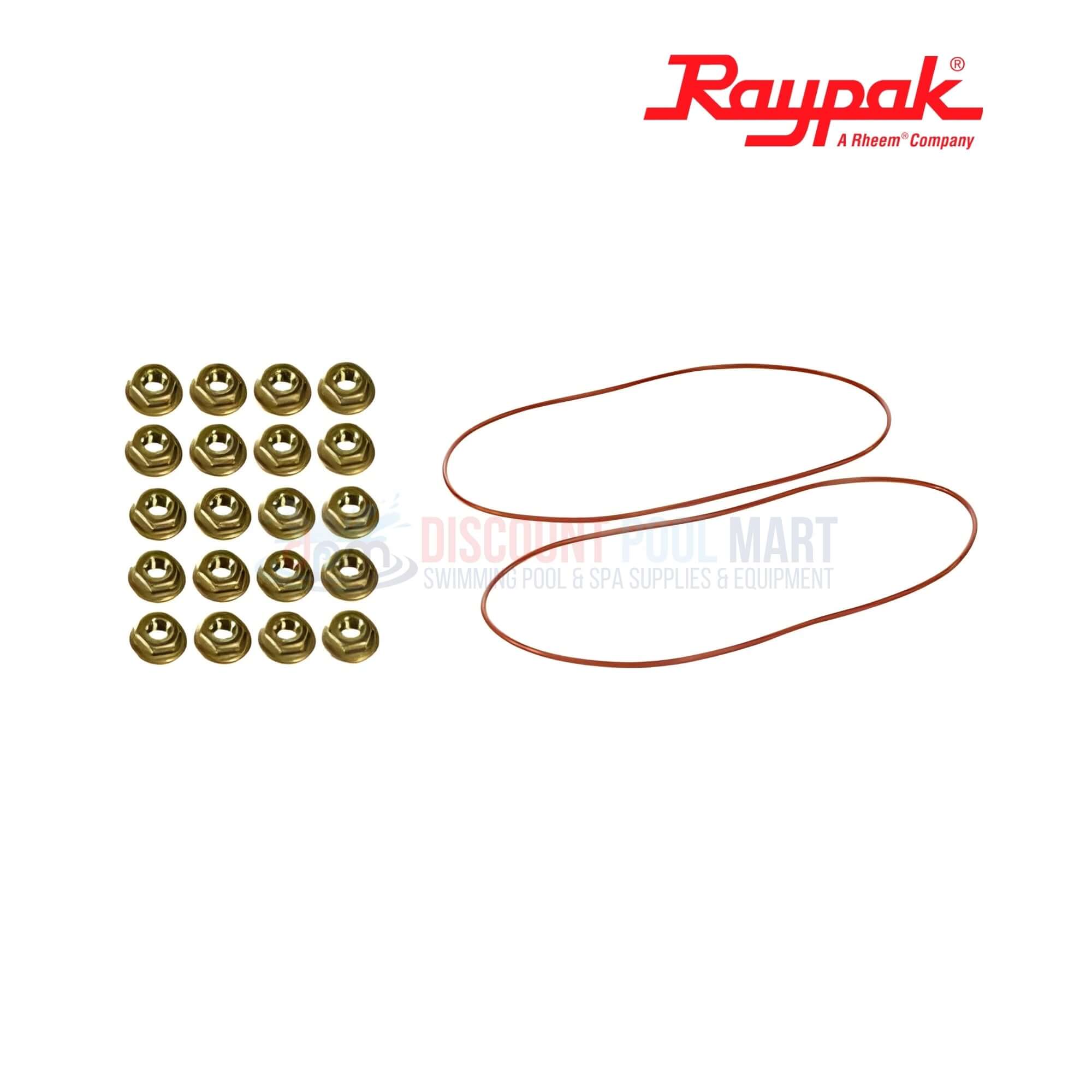

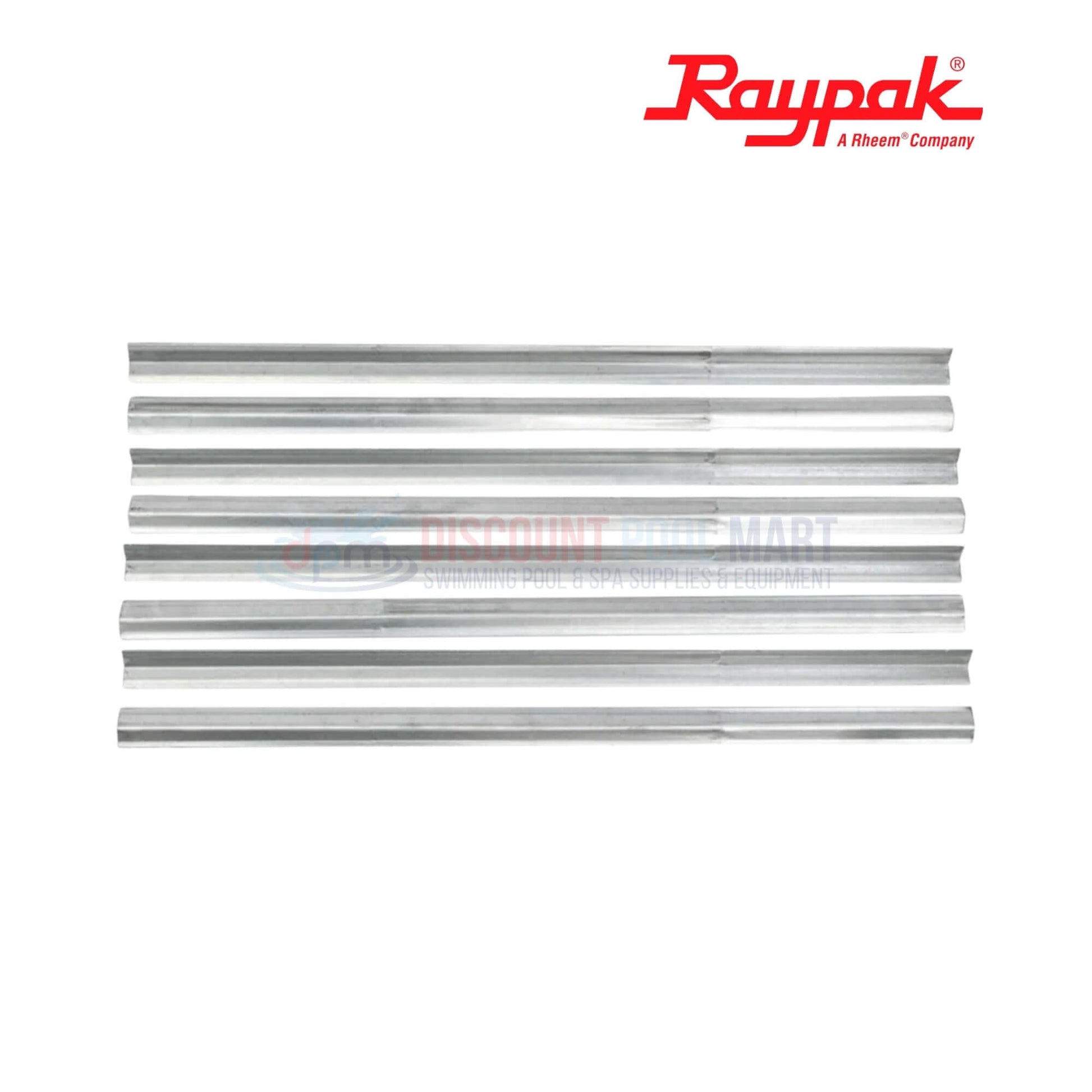

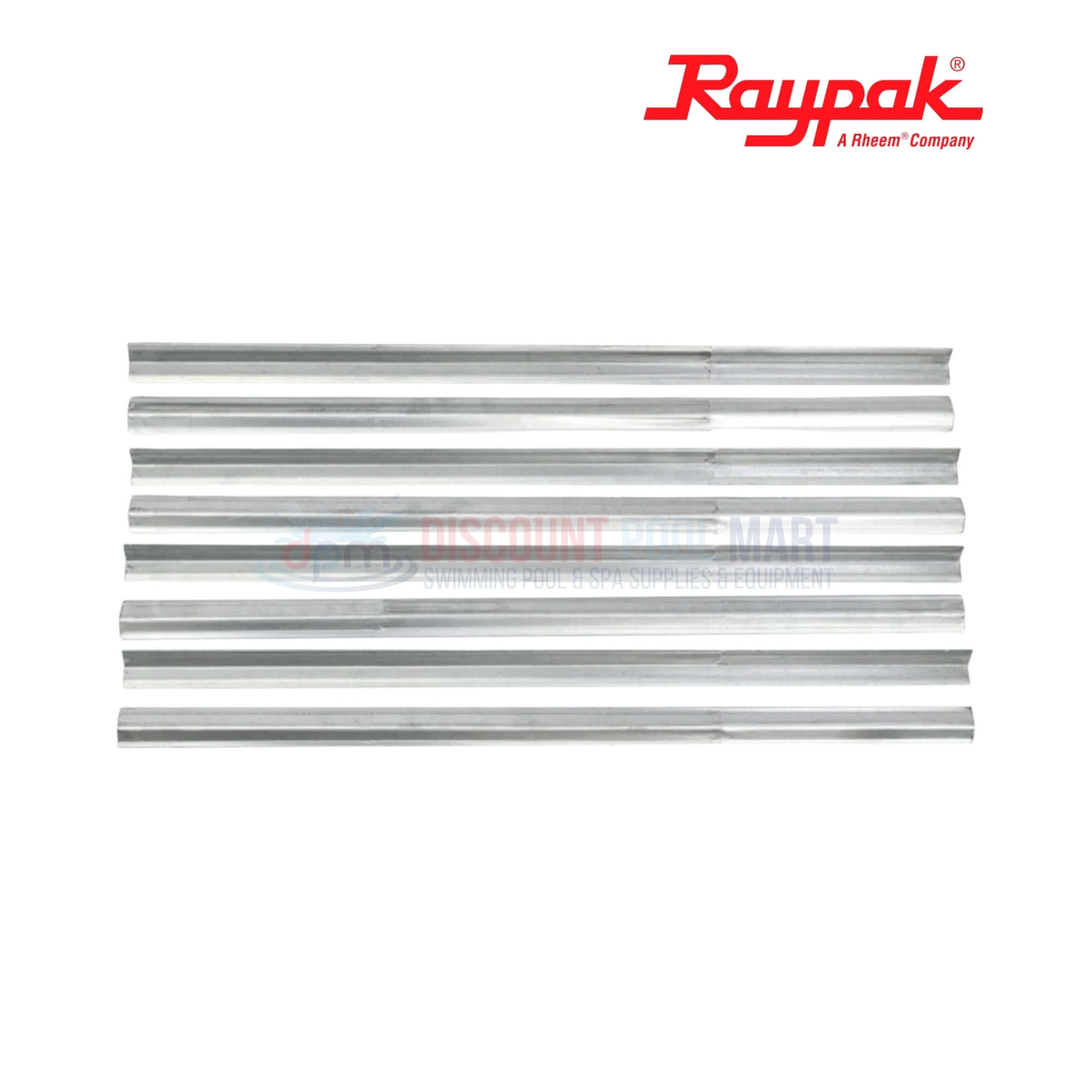

Comprehensive OEM Heat Exchanger Kit: The bundle includes copper tubes, header gaskets, flange nuts, baffles, and bolts—everything needed for a full replacement and return to original performance.
-

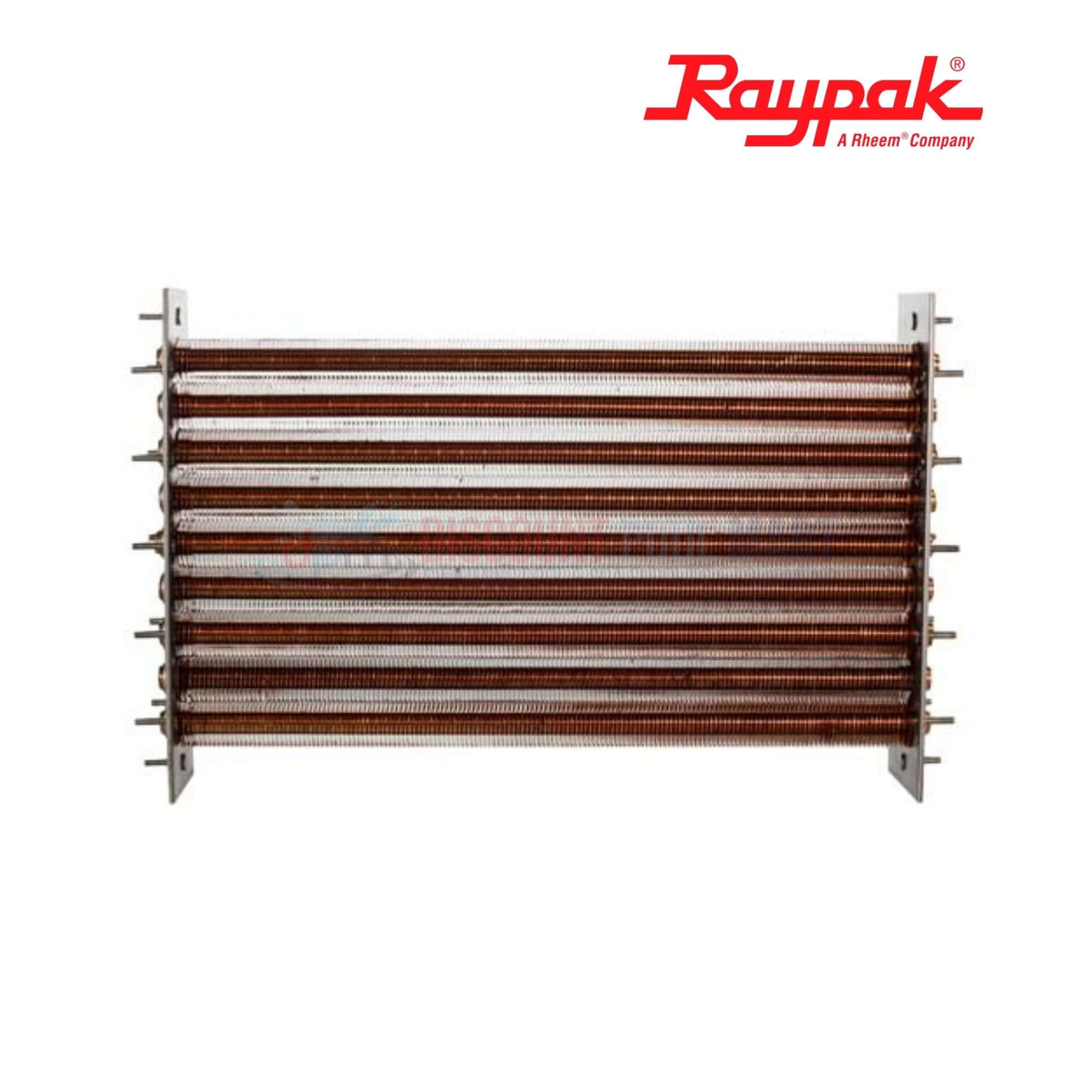

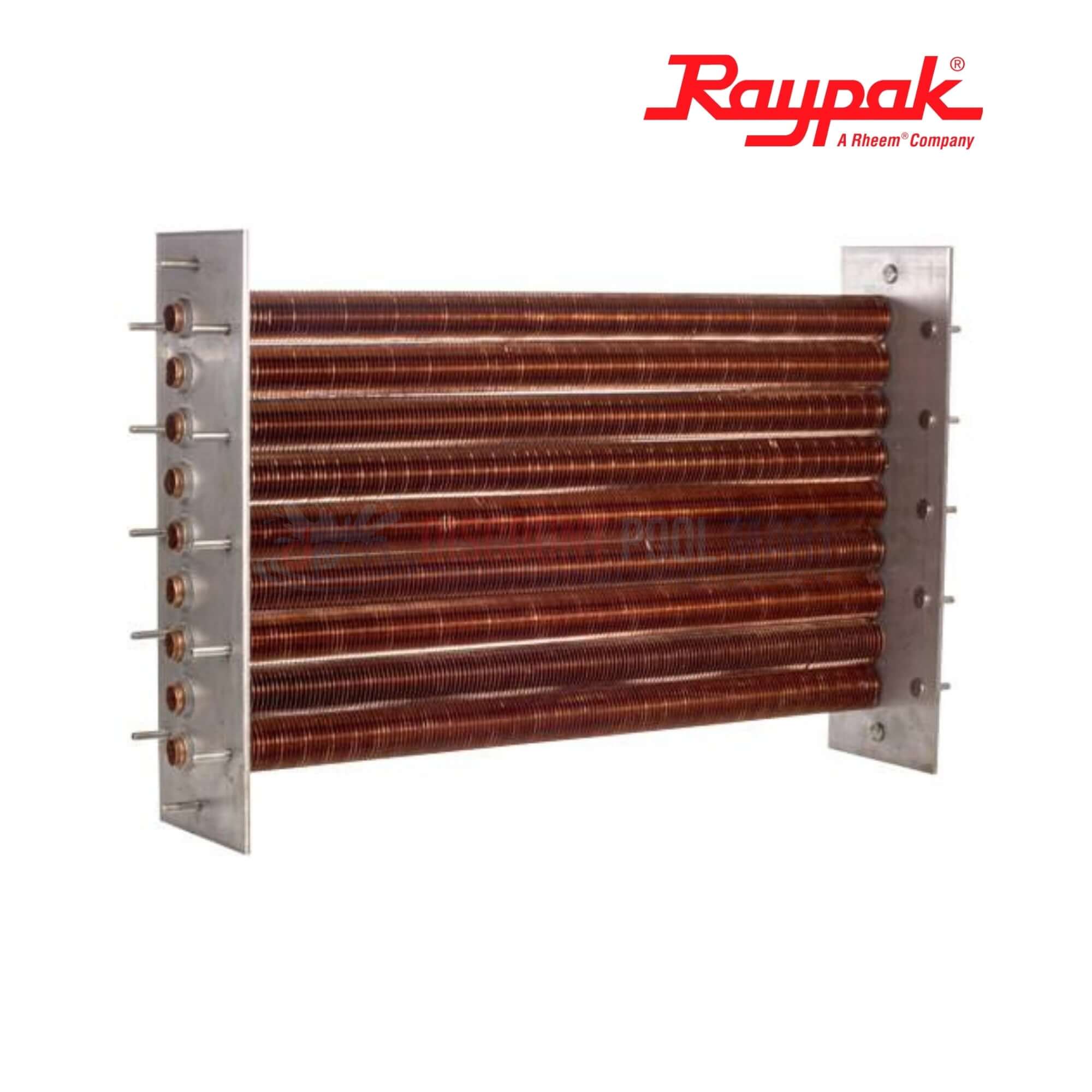

Copper Tubes with Polymer Header Compatibility: Designed specifically for 406A & 407A models with polymer (plastic) headers, ensuring correct fit and ideal thermal pathway.
-
Improved Thermal Efficiency: Fresh, clean copper tubes and properly sealed joints significantly enhance heat transfer, reduce hot spots, and restore peak heater performance.
-
Durable under Corrosive & Thermal Stress: Built to withstand scaling, high temperatures, and frequent heating/cooling cycles to extend heater life and maintain safety.
-
Drop-In Replacement for 406A/407A Heaters: Designed for straightforward installation—matching dimensions and mounting hardware—minimizing labor and helping you quickly get the heater returning water as expected.
- Raypak Digital 406A Heaters
- Raypak Digital 407A Heaters
