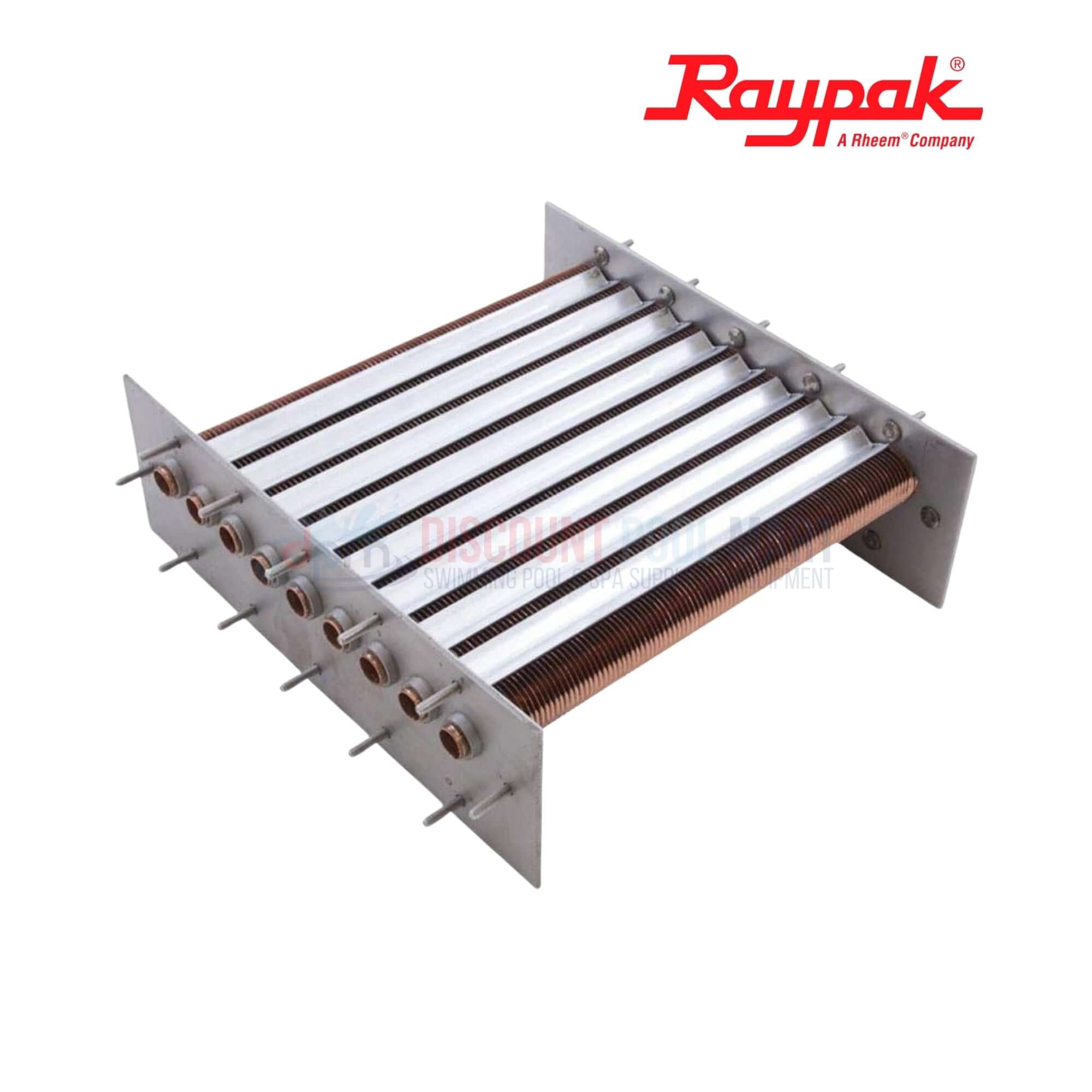

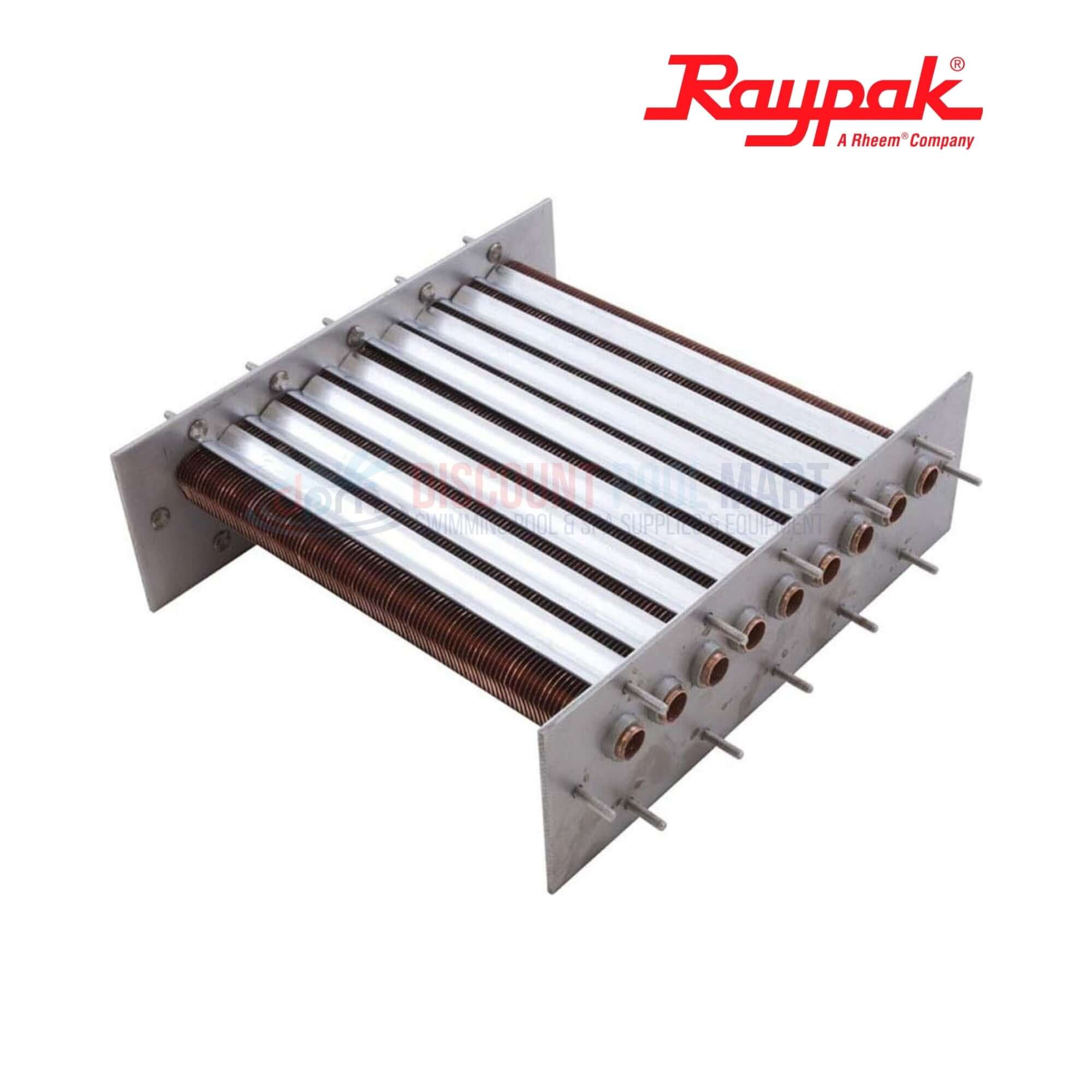

010059F | Raypak 206A/207A Copper Tube Bundle Heat Exchanger
Fits these models (2)
Pickup, delivery and shipping times are estimates, not guarantees.
Couldn't load pickup availability
Have a question about this part?
Ask about fit, specs or shipping and get an instant answer.
Goes with this part
CA P65 Warning: Cancer and reproductive harm. www.p65warnings.ca.gov
The Raypak 010059F Copper Tube Bundle is an OEM replacement heat exchanger assembly for Raypak 206A/207A atmospheric digital heaters and 207A/407A Low-NOx models that use polymer headers. This complete kit includes copper tubing, header gasket seals, bolts, baffles, and a flange nut kit—everything needed to restore full thermal efficiency. Designed for precise flow, proper sealing, and durable performance, it helps correct issues from corrosion, loss of heat transfer, or failing tubes and ensures reliable heating cycles season after season.
-
OEM Copper Tube Bundle for Polymer-Header Models: Built specifically for Raypak 206A and 207A heaters with plastic/polymer headers; engineered for exact compatibility with factory dimensions and fittings.
-

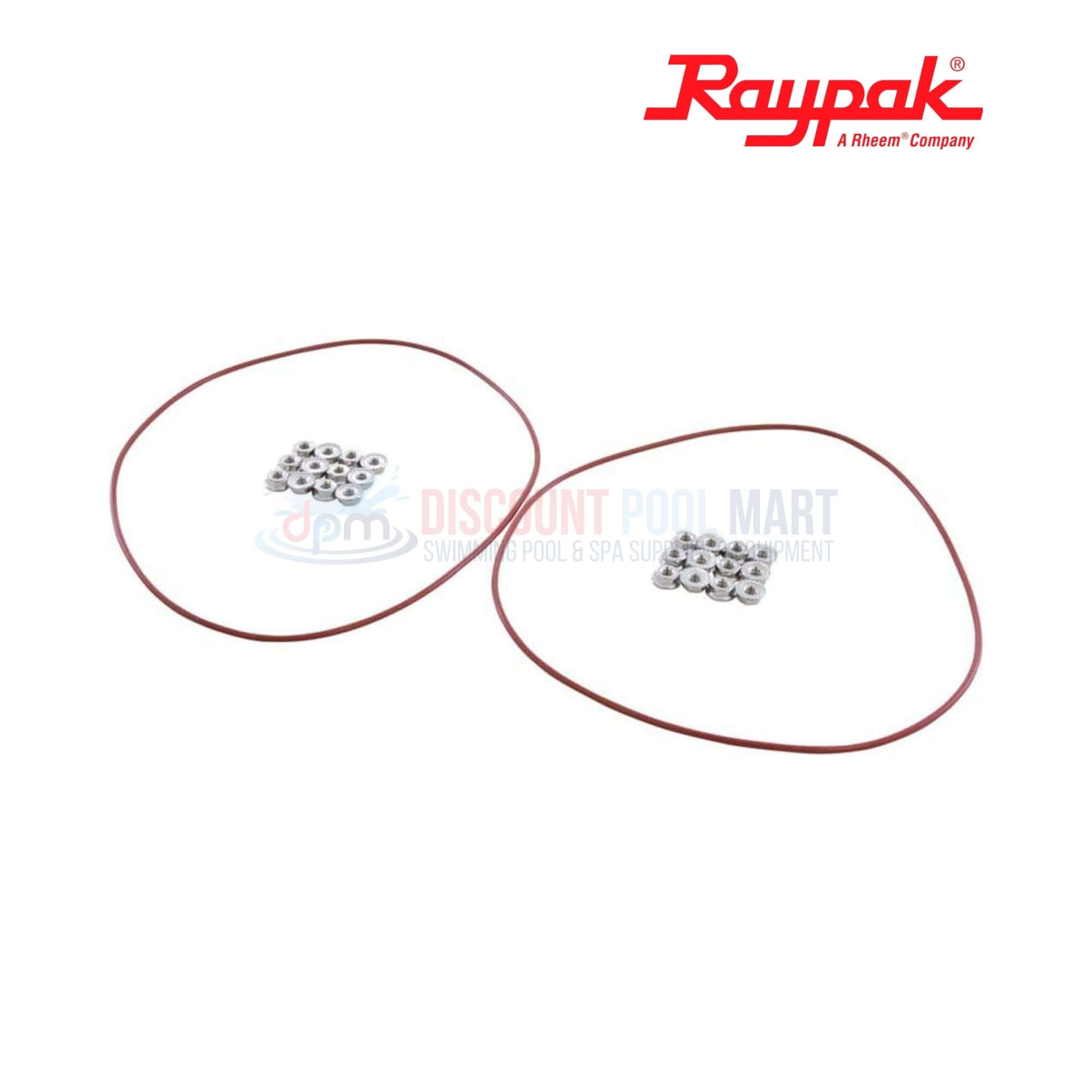

Complete All-In-One Kit: Comes with copper tubes, two header gaskets, flange nut bolt kit, and eight internal baffles—everything needed to rebuild the heat exchanger without sourcing extra parts.
-
Improved Heat Exchange & Efficiency: Fresh copper surfaces plus proper water flow restore fast, efficient thermal transfer, reducing heat-waste and helping maintain set temperatures more consistently.
-
Durable Under Repeated Heat Stress: Copper materials and robust construction endure corrosion, thermal cycling, and exposure to water chemistry—extending the lifespan of the heater’s firebox system.
-
Heavy-Duty and Properly Sized: Weighs approximately 29 lb with shipping dimensions around 21 × 19 × 7¾ in; designed for solid fit in the firebox space and to align with sensors and headers accurately.
- Raypak Digital 206A Heaters
- Raypak Digital 207A Heaters
