010058F | Raypak 406A/407A ASME Copper Tube Bundle Heat Exchanger
Fits these models (2)
Pickup, delivery and shipping times are estimates, not guarantees.
Couldn't load pickup availability
Have a question about this part?
Ask about fit, specs or shipping and get an instant answer.
Goes with this part
CA P65 Warning: Cancer and reproductive harm. www.p65warnings.ca.gov

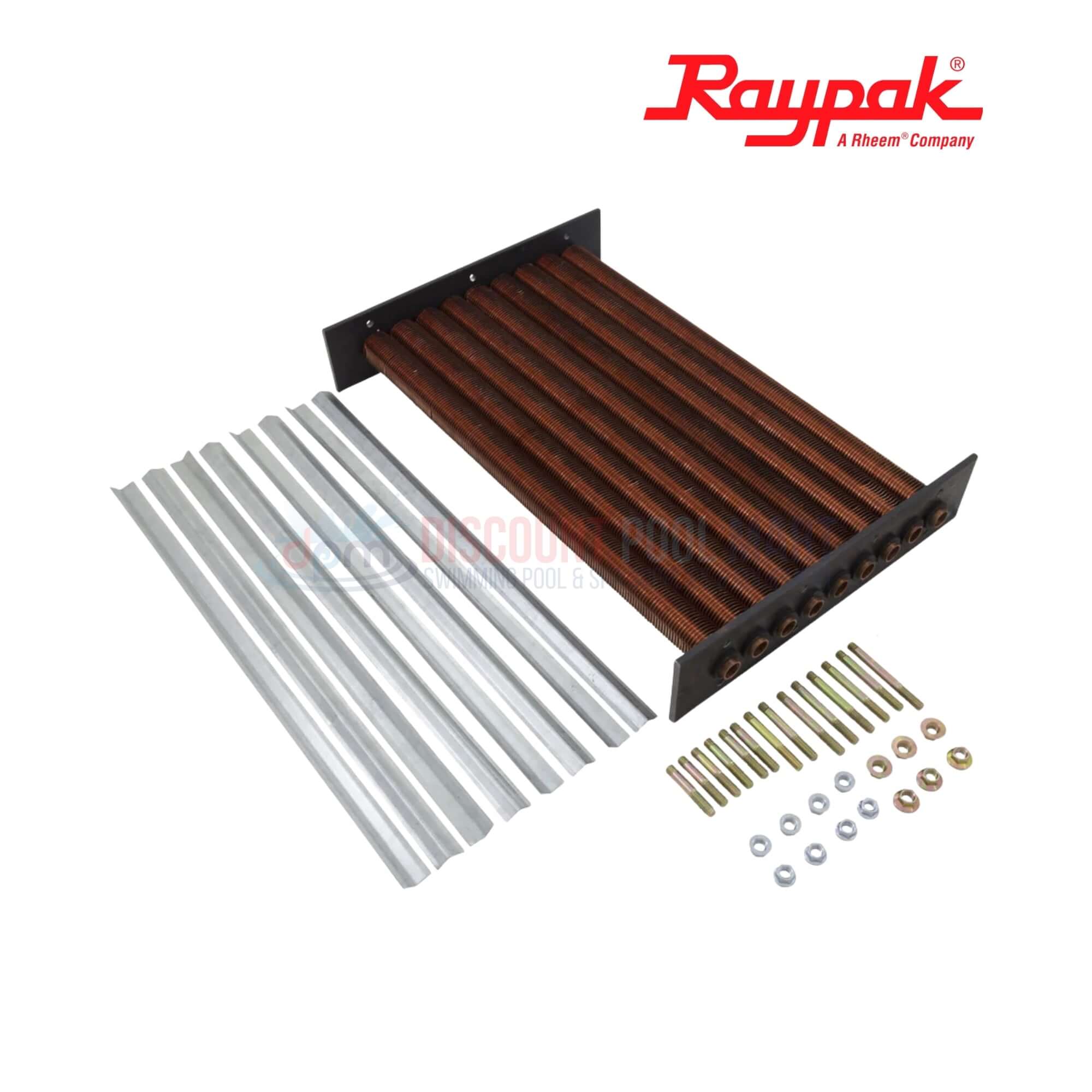

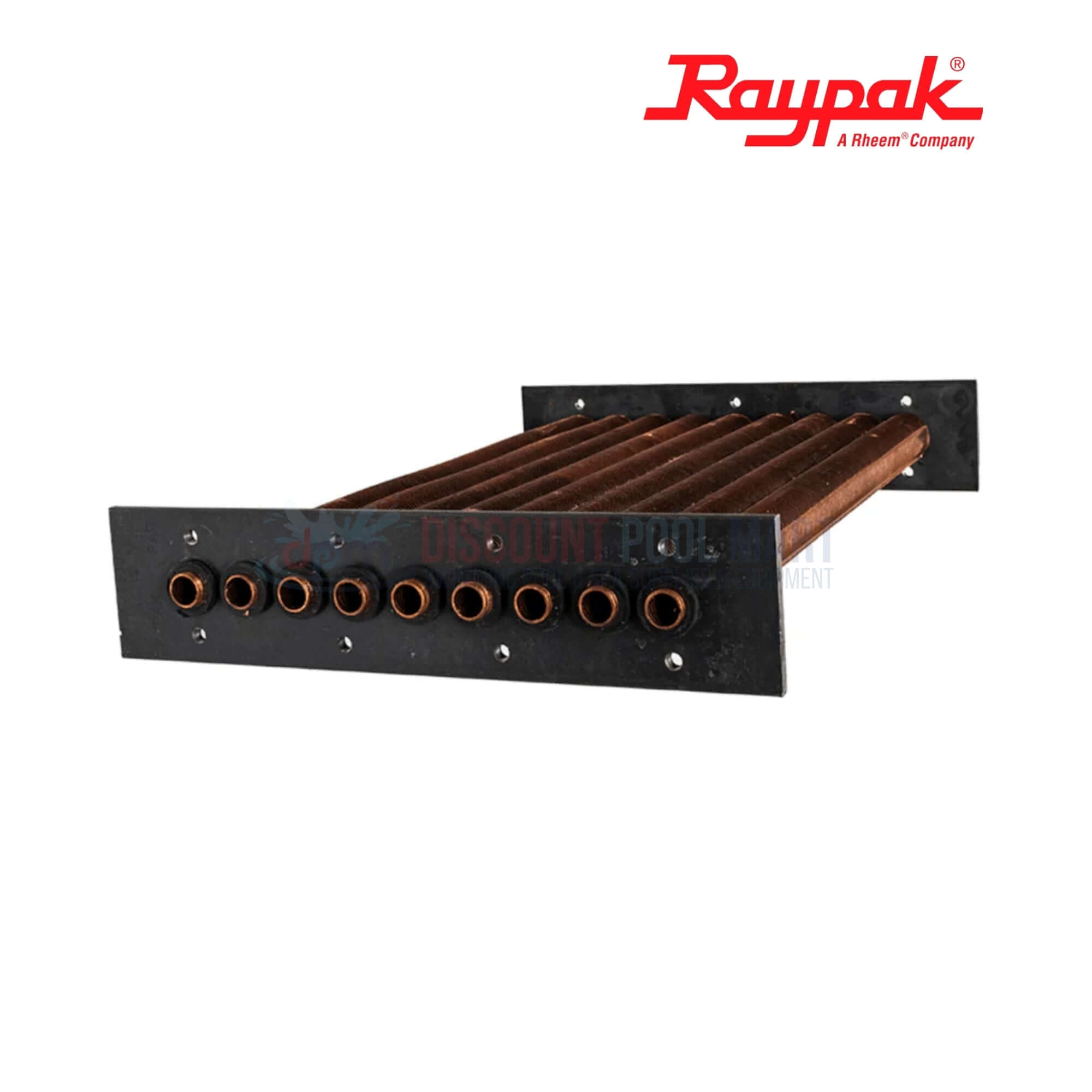

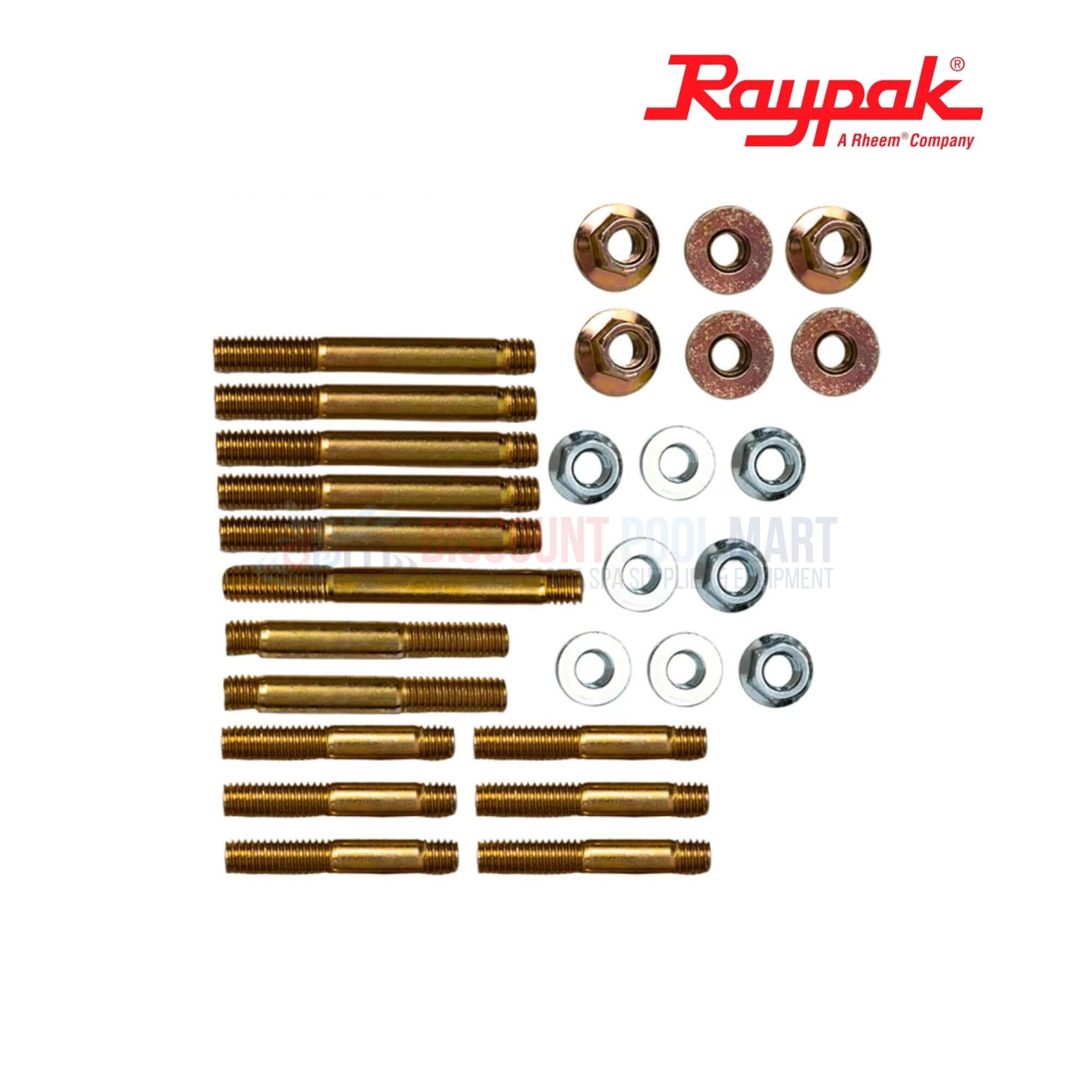

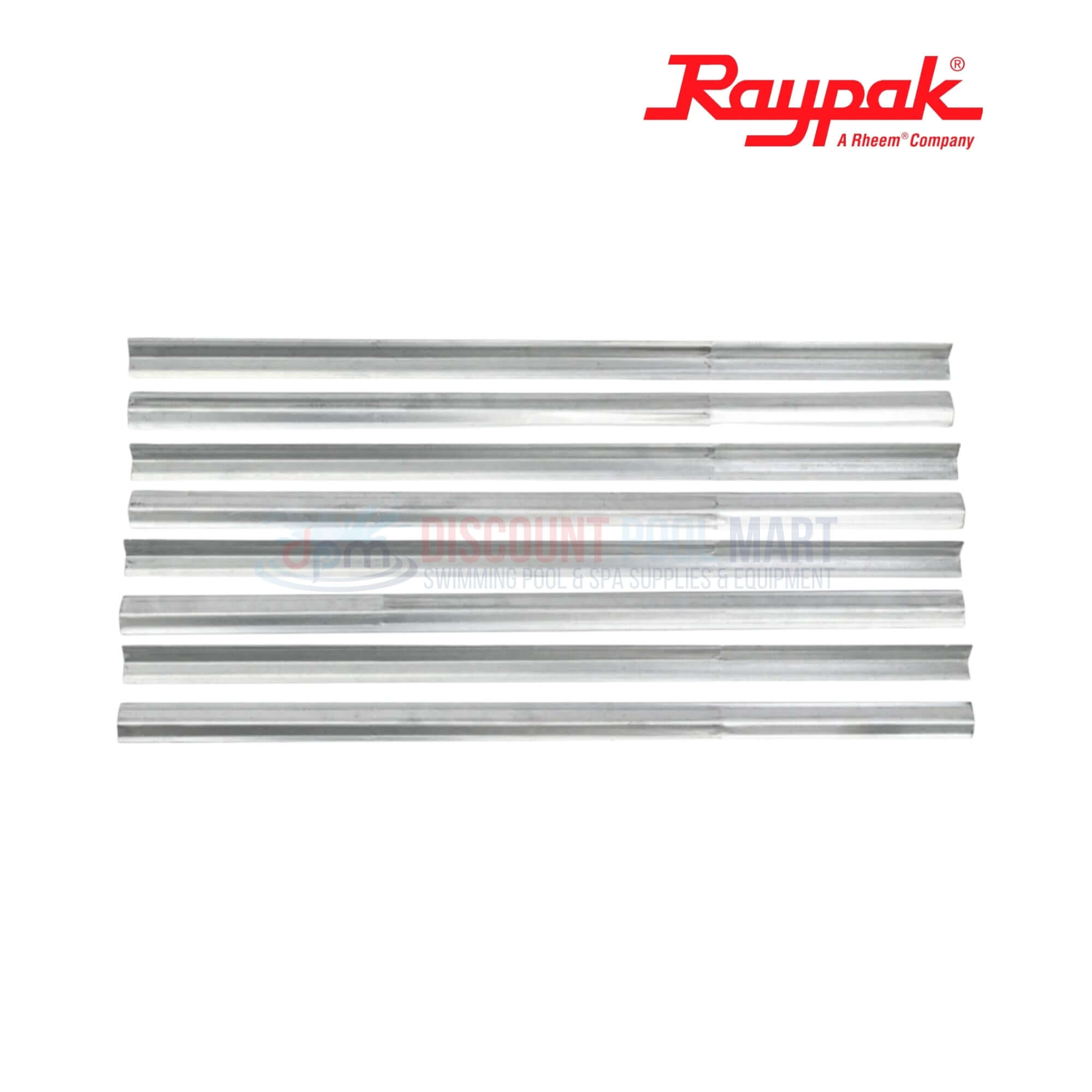

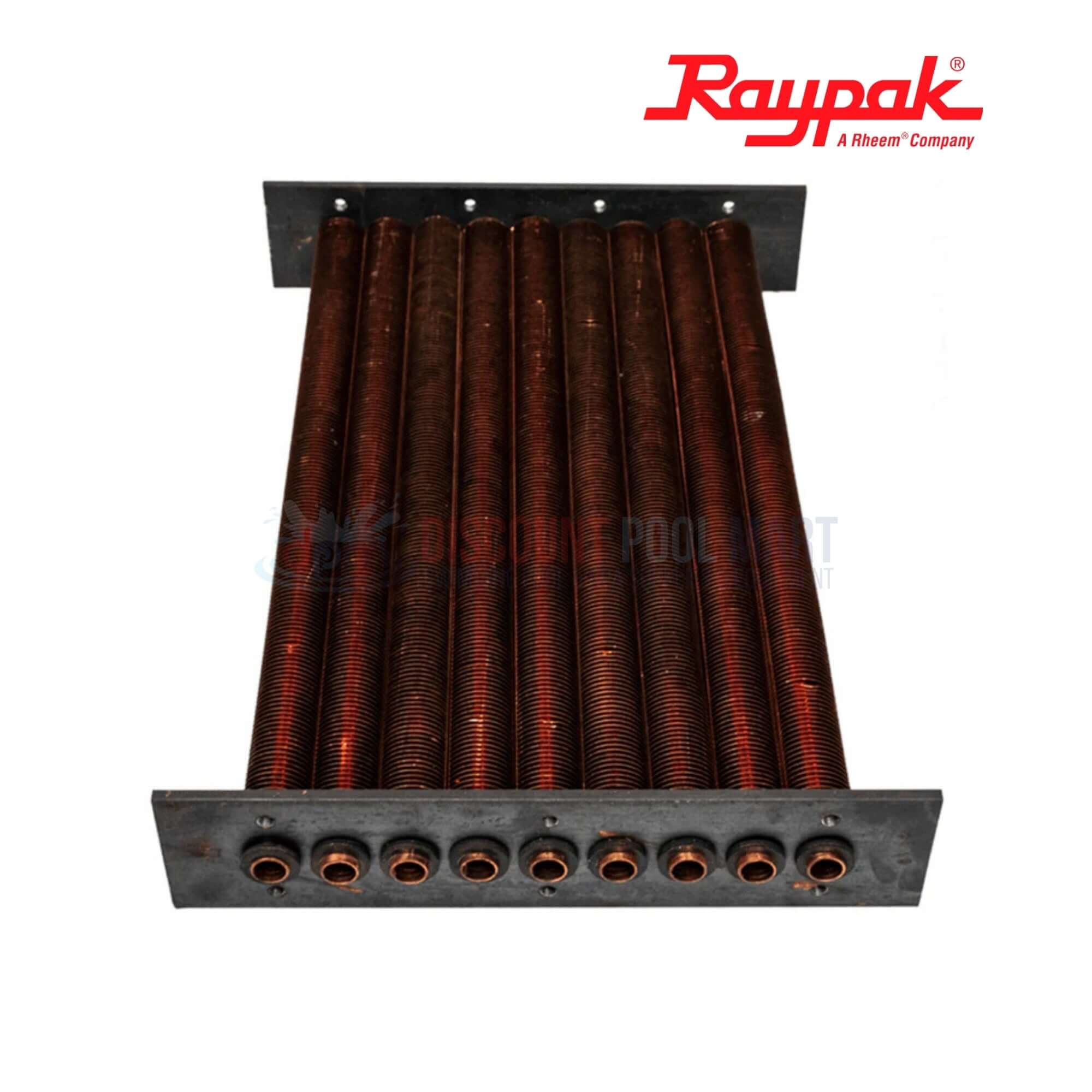

The Raypak 010058F Copper Tube Bundle is a full OEM ASME-certified heat exchanger assembly made for Raypak 406A and 407A pool heaters. This comprehensive bundle includes all nine copper tubes, a header gasket, stud-bolt kit, and a baffle—everything necessary to restore proper water flow, thermal transfer, and sealing in the heater’s firebox. Crafted with high-quality copper and precision engineered components, it is designed to withstand corrosion, thermal cycling, and environmental stress. Replacing a worn or damaged tube bundle with this kit helps maintain heater efficiency, safety, and extends service life.
-
Complete OEM Heat Exchanger Assembly: Includes nine copper tubes, header gasket, stud bolts, and baffle so you receive everything needed in one kit for a full replacement.
-
ASME-Certified Copper Construction: Built with copper tubes and ASME-rated components to endure high heat, pressure, and pool chemistry without sacrificing performance.
-
Model-Specific Compatibility: Precisely fitted for Raypak 406A (atmospheric) and 407A (Low-NOx digital) heater models, ensuring alignment with headers, sensors, and flow paths.
-
Restores Thermal Efficiency & Performance: Replacing aged or corroded tubes helps regain efficient heat transfer, avoids hot spots, and improves energy use, reducing fuel waste.
-
Durability Under Load & Corrosion: Designed for long life under repeated heat cycles and exposure to water, scale, and corrosive elements, helping prevent premature failure.
- Raypak Digital 406A Heaters
- Raypak Digital 407A Heaters
