009747F | Raypak 302A-902B Control Panel Window
Fits these models
Pickup, delivery and shipping times are estimates, not guarantees.
Couldn't load pickup availability
● 2 in stock30-day returns Secure checkout
Have a question about this part?
Ask about fit, specs or shipping and get an instant answer.
Goes with this part
CA P65 Warning: Cancer and reproductive harm. www.p65warnings.ca.gov

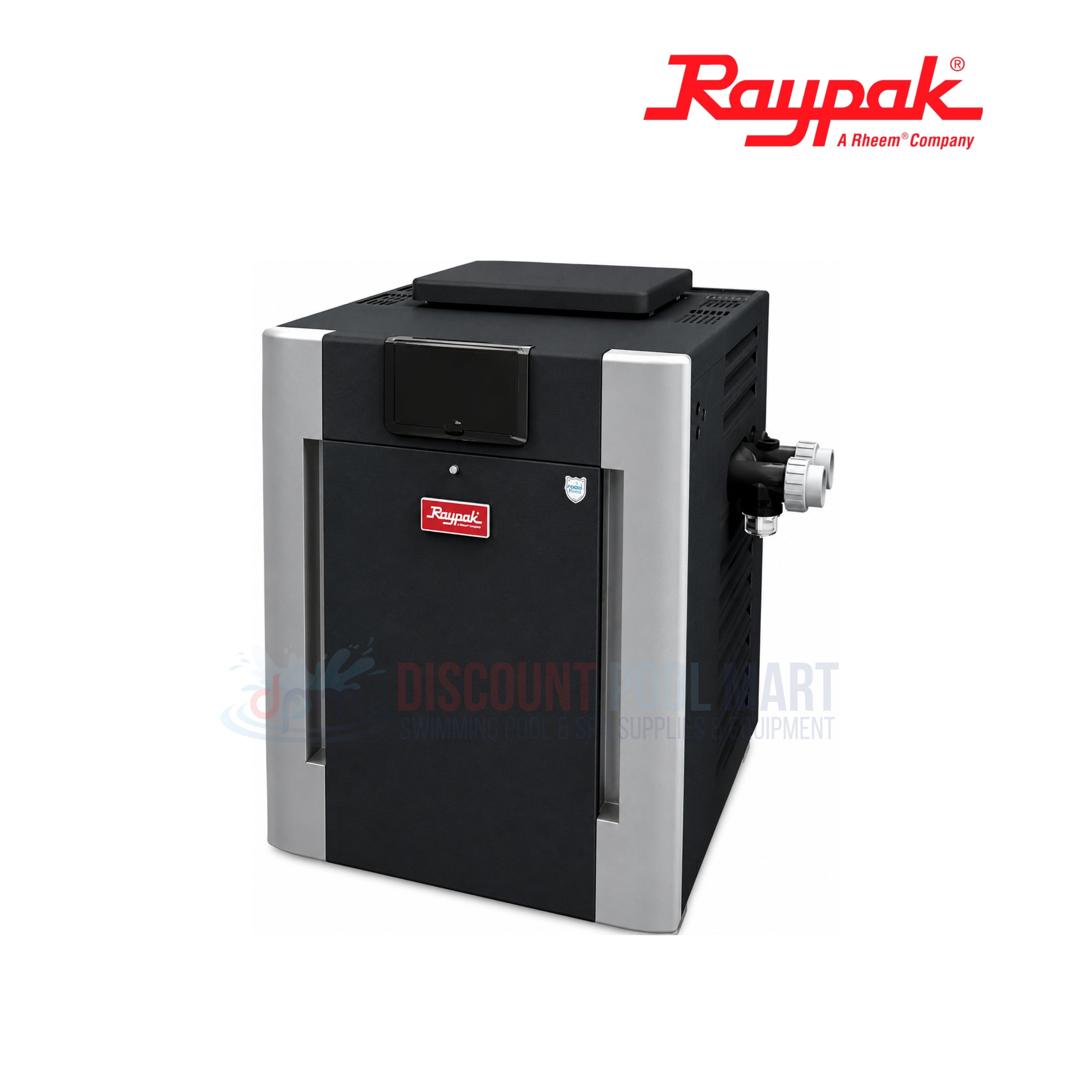

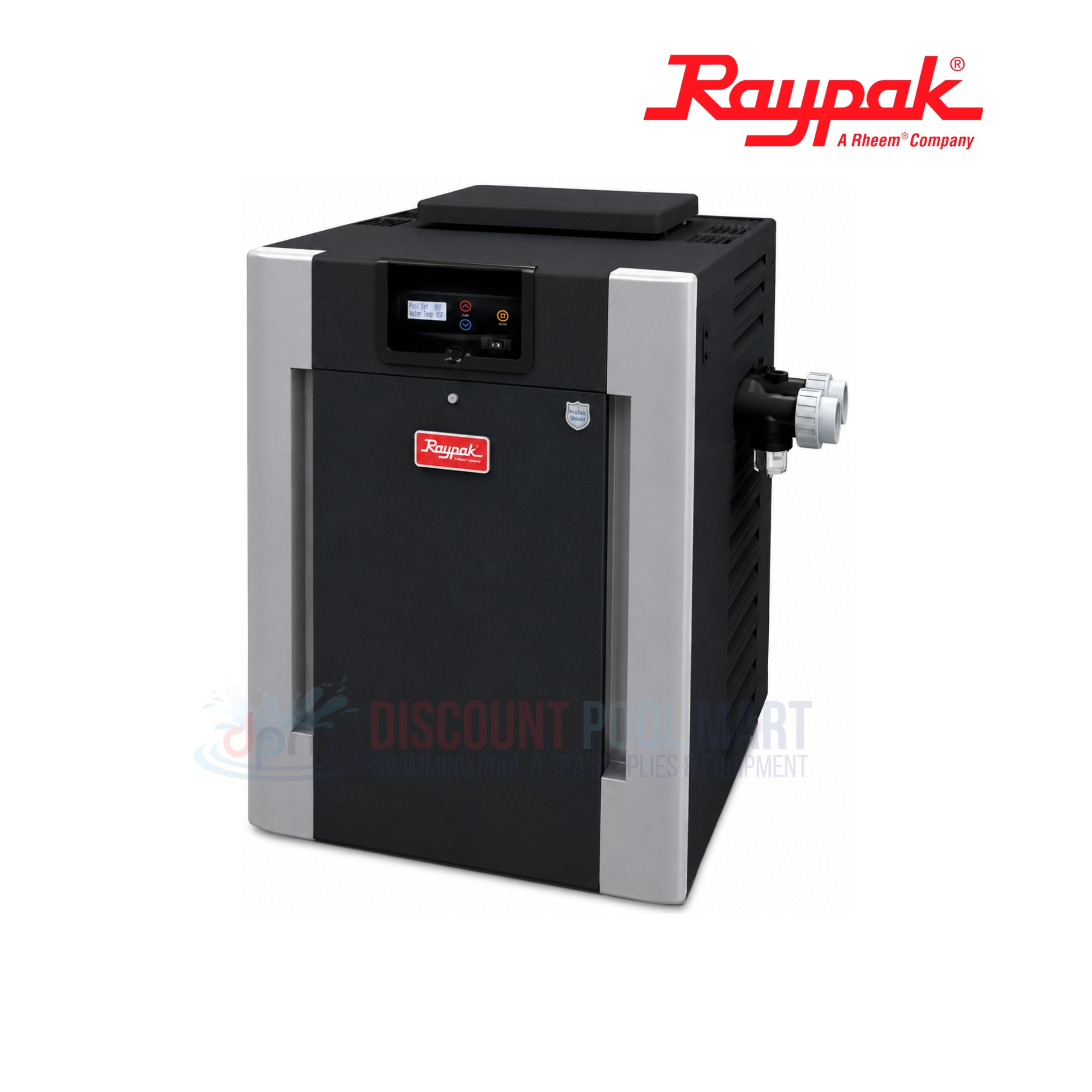

The Raypak 009747F Control Panel with Window is an OEM front panel assembly featuring a clear viewing window for the 302A through 902B Hi-Delta heater series. It provides both visual access to status lights and control electronics while protecting components from environmental exposure. When your original panel is scratched, cracked, or faded, replacing it with this factory-matched unit restores full functionality, appearance, and sealing integrity to the control interface.
-
Factory OEM Front Panel with Window: Designed specifically for 302A-902B Hi-Delta heaters, this panel replaces the original housing and includes a clear window for viewing LEDs or switches.
-
Restores Visual Access & Protection: The integrated window lets users read status indicators or control lights without opening the panel, while preserving protection against dust, moisture, and heat.
-
Precision Fit & Finish: Manufactured to Raypak’s original specifications to align with mounting points, gasket seals, and internal components—ensuring seamless drop-in installation.
-
Durable, UV-Resistant Materials: Built from rugged plastics engineered to resist warping, yellowing, or cracking from prolonged heat and sunlight exposure.
-
Essential for Safe & Clean Operation: A damaged or missing panel leaves electronics exposed; this replacement restores enclosure integrity and helps maintain heater safety and reliability.
- Raypak 302A-902B Heater Models
