Pentair UltraTemp 140 H/C 460958 Heat Pump Replacement Parts Diagram

Interactive parts diagram

42 parts. Tap a number on the diagram, or search by part number.

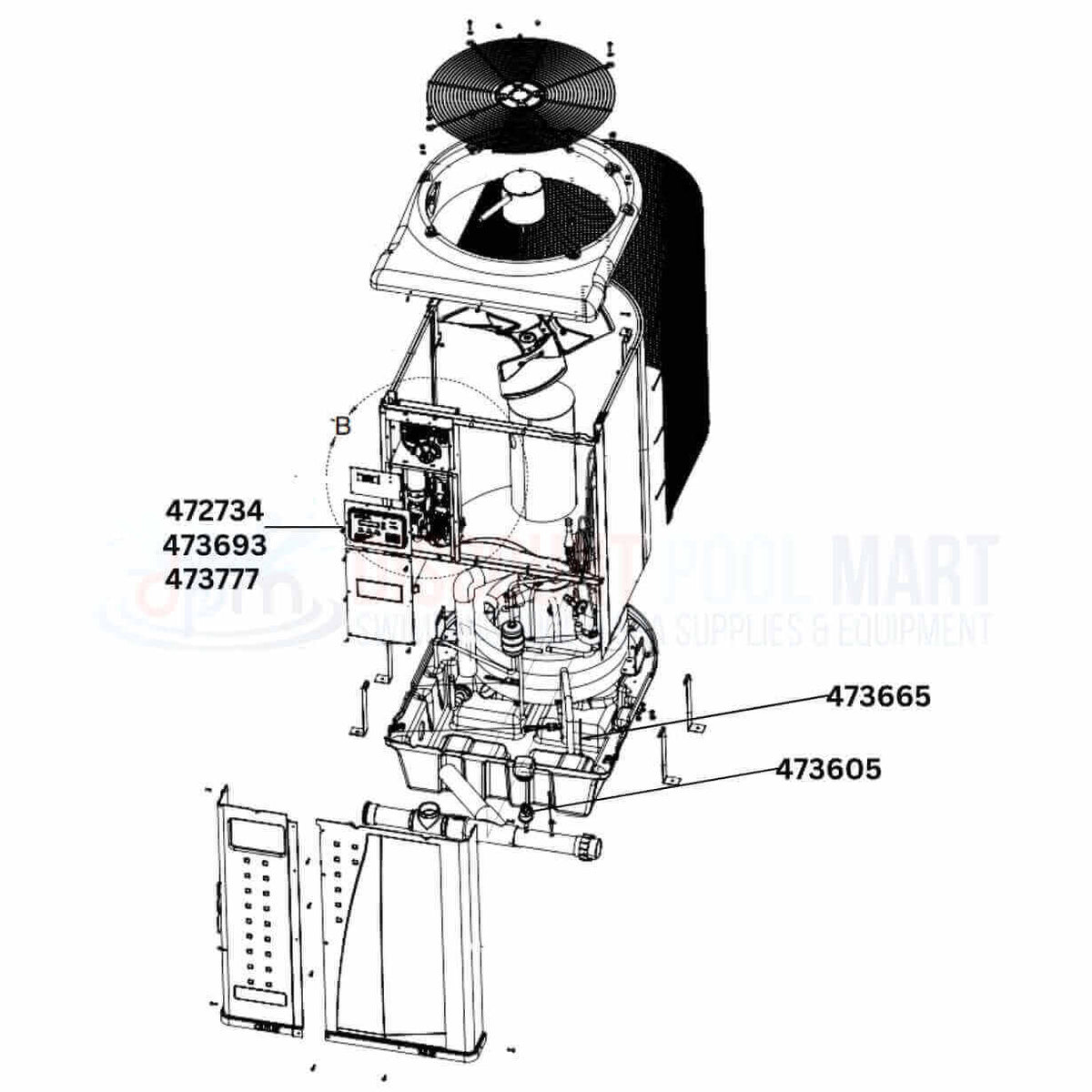

 – exploded view with numbered parts

Scroll or pinch to zoom · drag to move

    • Not sold online Pentair J-clip nut 470284Call us and we'll get it for you.
    • Not sold online Pentair 1/4-20 stainless acorn nut 473285Call us and we'll get it for you.
    • Not sold online Pentair U-clip nut 470281Call us and we'll get it for you.
    • Not sold online Pentair scroll compressor ZP83 (models 120, 120HC, 140, 140HC) 473734ZCall us and we'll get it for you.
    • Not sold online Pentair fender washer 473295Call us and we'll get it for you.
    • Not sold online Pentair bolt, 5/16-18 x 1 in. stainless 98219800Call us and we'll get it for you.
    • Not sold online Pentair drier (models 120HC, 140HC) 473139Call us and we'll get it for you.
    • Not sold online Pentair fan guard fastener kit 470441Call us and we'll get it for you.
    • Not sold online Pentair pump contactor, AutoHeat 473603Call us and we'll get it for you.
    • Not sold online Pentair fan relay 473150Call us and we'll get it for you.
    • Not sold online Pentair transformer 473155Call us and we'll get it for you.
    • Not sold online Pentair wire harness, terminal block - fan, compressor 473422Call us and we'll get it for you.
    • Not sold online Pentair wire harness, terminal block - sensors 473315Call us and we'll get it for you.
    • Not sold online Pentair capacitor (models 70, 90, 110, 120, 120HC, 140, 140HC) 473731Call us and we'll get it for you.
    • Not sold online Pentair heat pump contactor (single phase models after 2014; before 12/2014: 473149) 473778Call us and we'll get it for you.
    • Not sold online Pentair main wire harness, single phase models (before 12/2014: 473423) 475112Call us and we'll get it for you.
    • Not sold online Pentair front right panel, 36 in., almond 473742Call us and we'll get it for you.
    • Not sold online Pentair screw #10 x 3/4 in. pan head Phillips, almond head 470159Call us and we'll get it for you.
    • Not sold online Pentair screw #10 x 1 in. button head Torx, almond head 470161Call us and we'll get it for you.
    • Not sold online Pentair front left panel with decal, almond 473755Call us and we'll get it for you.
    • Not sold online Pentair heat pump top, almond 473773Call us and we'll get it for you.
    • Not sold online Pentair fan guard 473786Call us and we'll get it for you.
    • Not sold online Pentair #10-32 stainless acorn nut 470439Call us and we'll get it for you.
    • Not sold online Pentair fan motor with acorn nut kit (models 140, 140HC) 474323ZCall us and we'll get it for you.
    • Not sold online Pentair fan blade (models 140, 140HC) 474322Call us and we'll get it for you.
    • Not sold online Pentair tie down bracket 470137Call us and we'll get it for you.

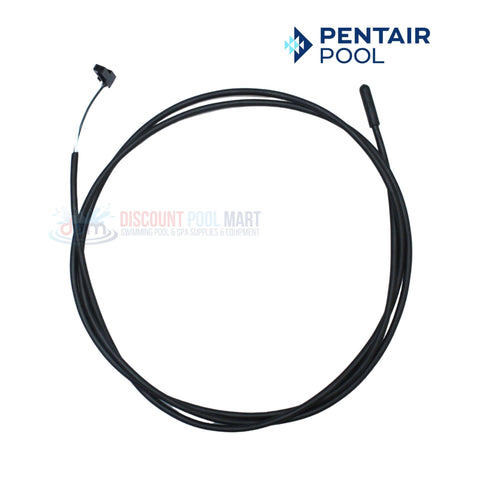

    • Not sold online Pentair water temperature thermistor probe 471566Call us and we'll get it for you.
    • Not sold online Pentair water pressure switch boot 473606Call us and we'll get it for you.
    • Not sold online Pentair titanium heat exchanger (units built after Jan 2017; before: 473992) 475193ZCall us and we'll get it for you.
    • Not sold online Pentair water manifold bypass kit (before Jan 2017: 473774Z manifold with 2 street elbows) 475176ZCall us and we'll get it for you.
    • Not sold online Pentair water bypass check valve R172305Call us and we'll get it for you.
    • Not sold online Pentair 2 in. PVC union 473381Call us and we'll get it for you.
    • Not sold online Pentair low pressure switch 473656Call us and we'll get it for you.
    • Not sold online Pentair high pressure switch 473744Call us and we'll get it for you.
    • Not sold online Pentair thermostatic expansion valve (models 140, 140HC) 474327Call us and we'll get it for you.
    • Not sold online Pentair titanium water coil tie down, right side (left side: 475195) 475194Call us and we'll get it for you.
    • Not sold online Pentair compressor blanket 475231ZCall us and we'll get it for you.

Don't see your part? Ask us and we'll find it.

Also fits your Pentair UltraTemp 140 H/C 460958 Heat Pump

Not shown on the diagram, but made for this pump.

Fit guide

UltraTemp 140 H/C (460958) parts

460958 is the UltraTemp 140 heat/cool model in almond (460959 is the black version). Item and part numbers come from Pentair's UltraTemp heat pump replacement parts list. Pick the 140HC or single-phase line where the list gives a choice.

Parts for the 140 H/C

Compressor scroll ZP83
473734Z
Fan motor
474323Z
Fan blade
474322
Expansion valve
474327
Drier
473139
Capacitor
473731
3 in. receiver not shown
474321

Built before or after the change?

Before

Contactor 473149 and main harness 473423 (single phase, before 12/2014). Heat exchanger 473992, bypass manifold 473774Z and coil tie down strap 473772 (before Jan 2017).

After

Contactor 473778 (single phase after 2014), main harness 475112. Heat exchanger 475193Z, bypass kit 475176Z, tie downs 475194 / 475195 (built after Jan 2017).

Heat/cool only not shown

Reversing valve
473135
Reversing solenoid
473432

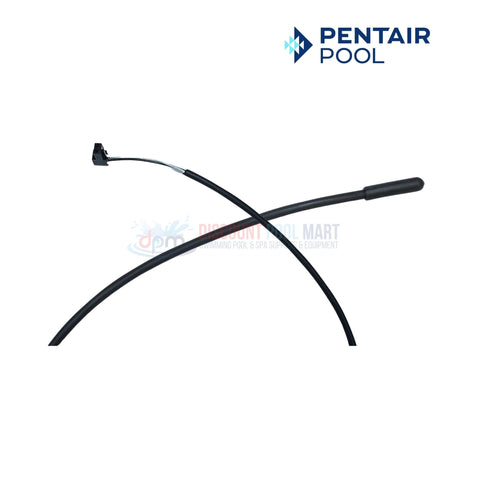

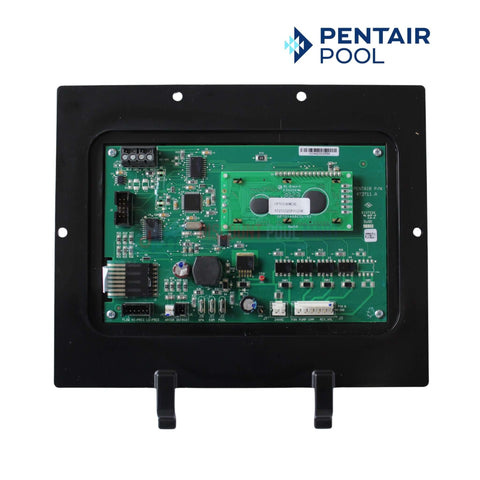

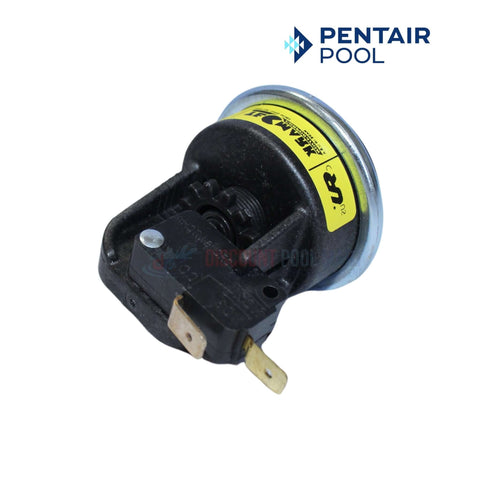

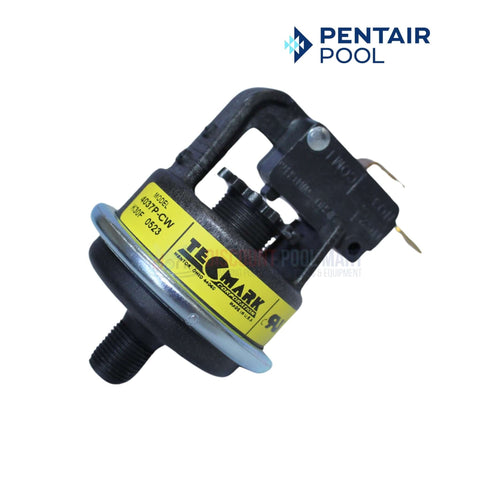

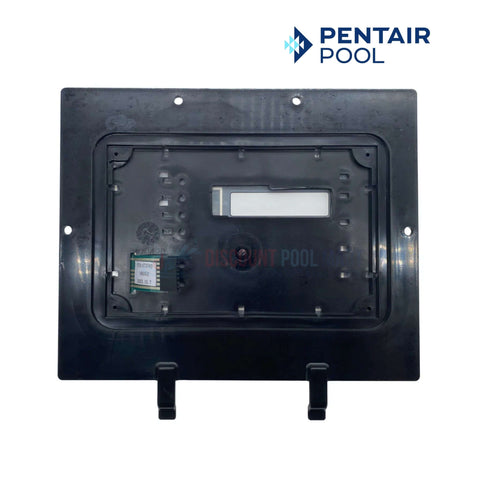

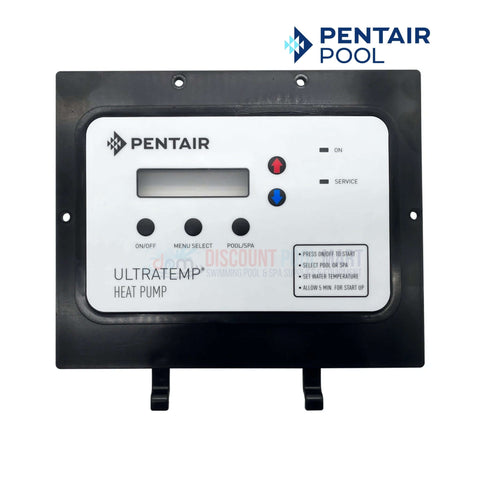

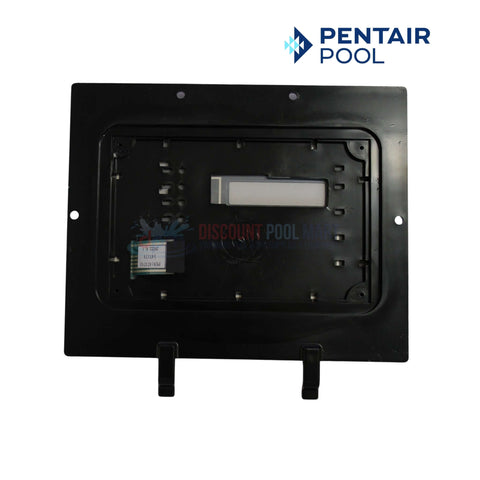

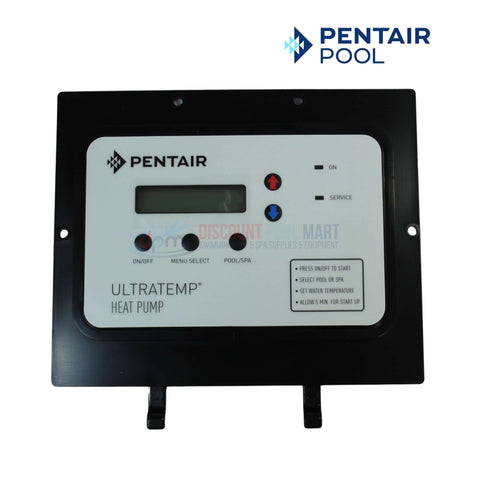

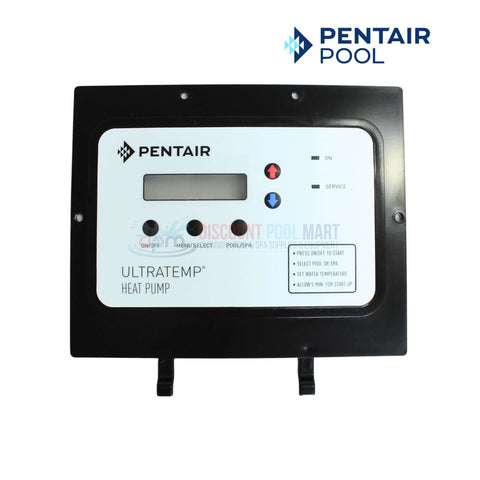

Control board, bezel and label kit
472734
