Pentair SuperFlo Pump Replacement Parts Diagram

Interactive parts diagram

24 parts · 10 with cheaper aftermarket options. Tap a number on the diagram, or search by part number.

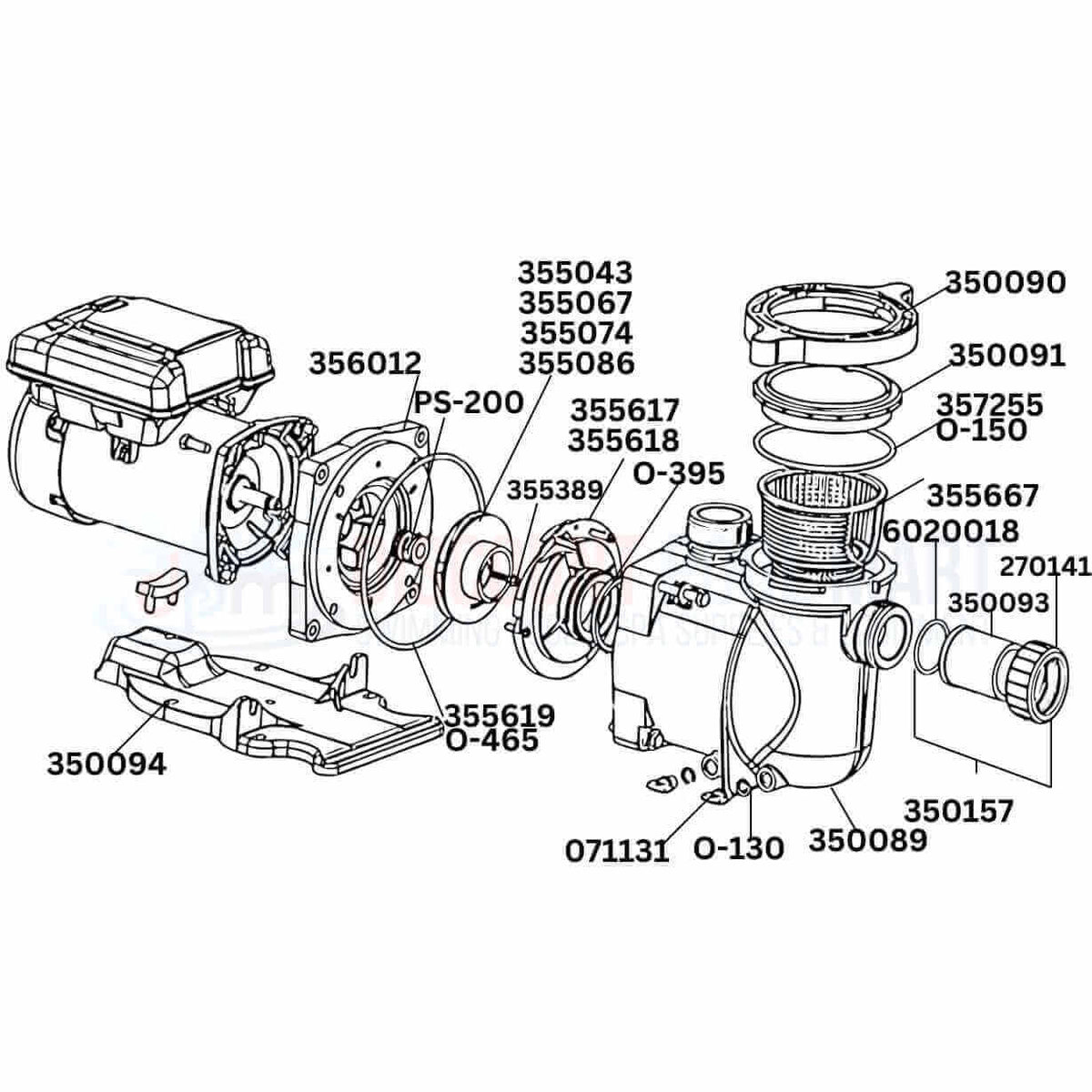

 – exploded view with numbered parts

Scroll or pinch to zoom · drag to move

  1. Horsepower

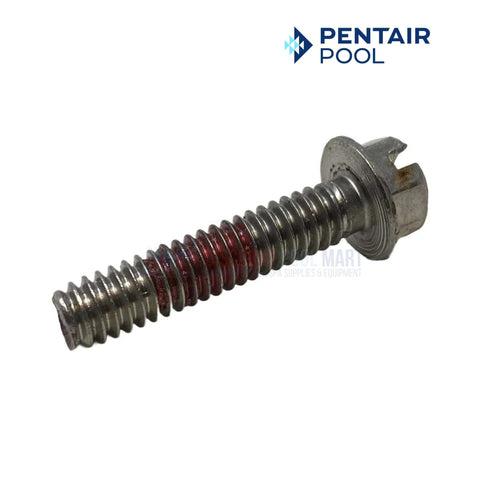

    • Not sold online Pentair hex head screw, 3/8"-16 x 2-1/4" (4 needed) 355621Call us and we'll get it for you.
    • Not sold online Pentair washer, 3/8", stainless (4 needed) 072184Call us and we'll get it for you.
    • Not sold online Pentair screw, #8-32 hex washer head (3 needed) 355334Call us and we'll get it for you.
  2. Horsepower
    • Not sold online Pentair hex head screw, 3/8"-16, stainless (4 needed) U30-74SSCall us and we'll get it for you.
  3. Horsepower

Don't see your part? Ask us and we'll find it.

Also fits your Pentair SuperFlo Pump

Not shown on the diagram, but made for this pump.

Fit guide

Which SuperFlo part fits your pump?

Find the horsepower on your pump's motor label. Part numbers come from Pentair's SuperFlo replacement parts list.

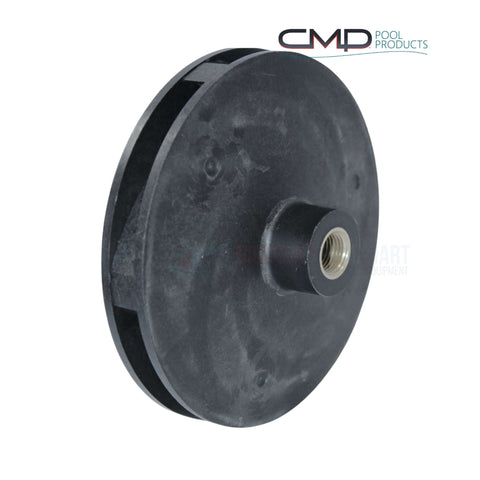

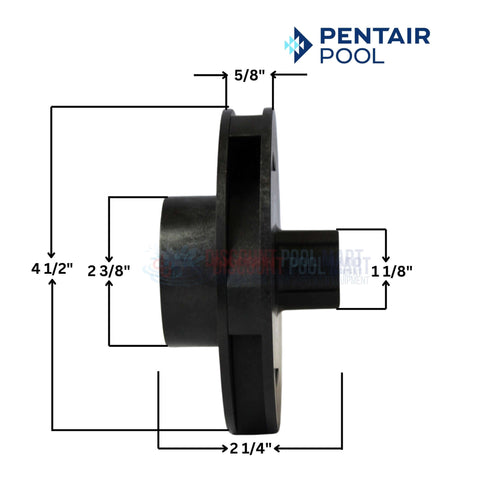

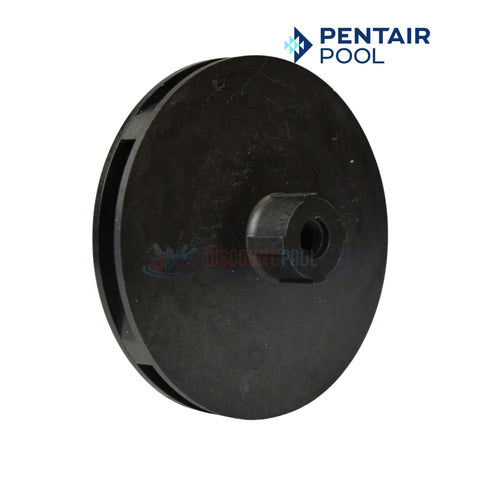

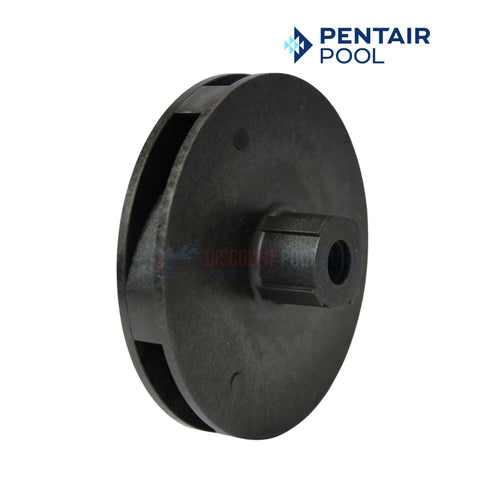

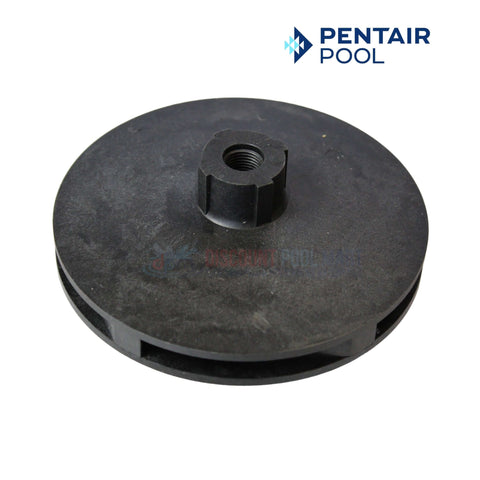

Impeller by horsepower

Diffuser by horsepower

½ – 1 HP
355617
1½ – 2 HP
355618
2½ HP
350170

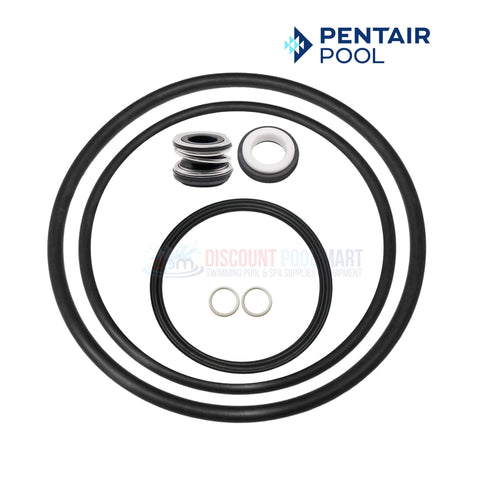

Seals & O-rings

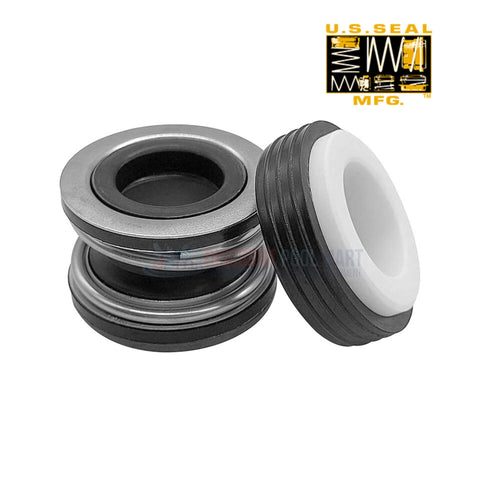

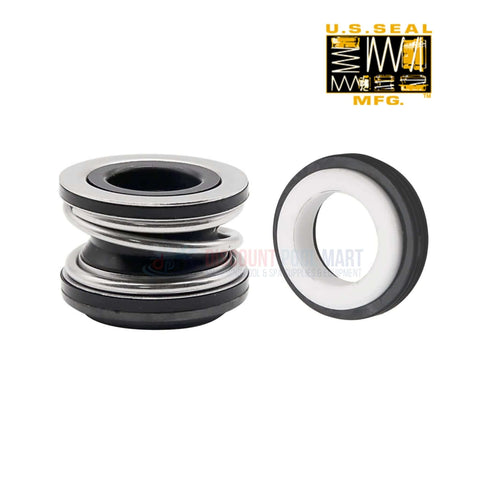

Shaft seal item 22
354545S U.S. Seal PS-200

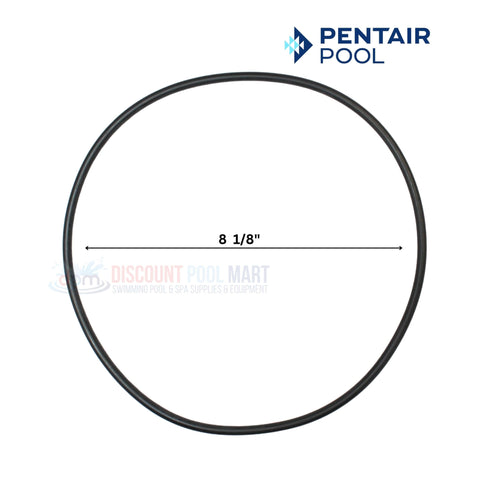

Seal plate O-ring item 14

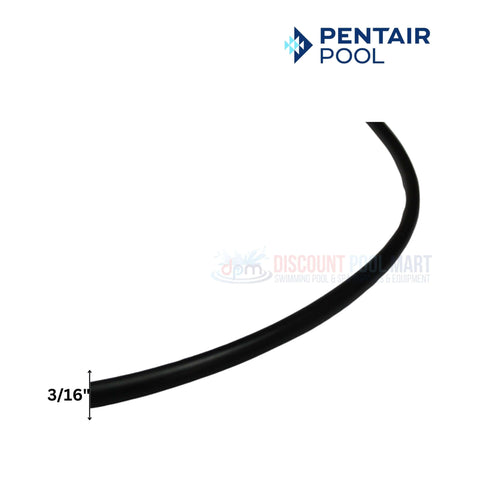

355619

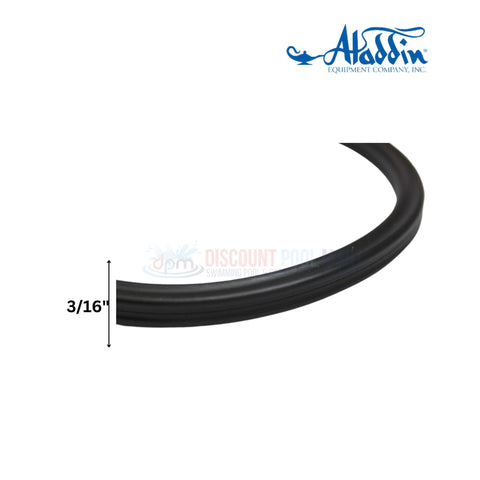

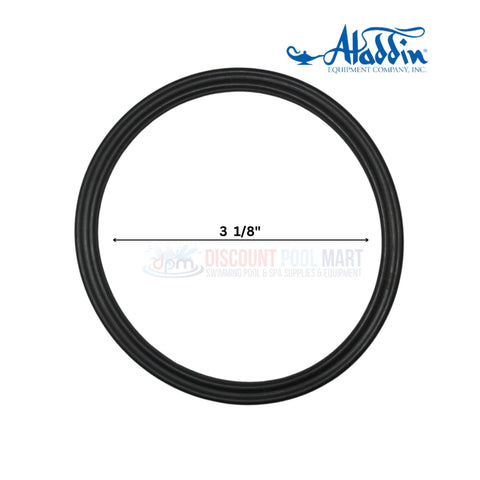

Diffuser seal item 16
355030 Aladdin O-395

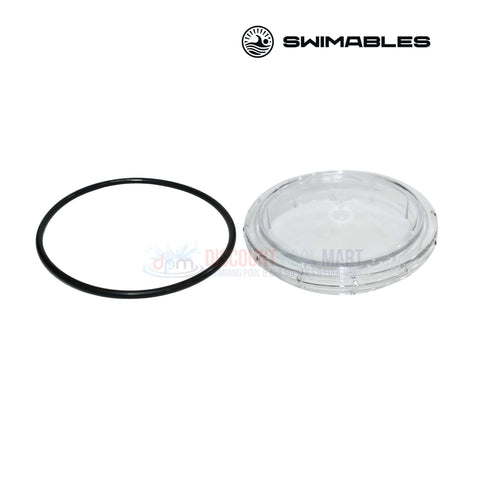

Lid O-ring item 6

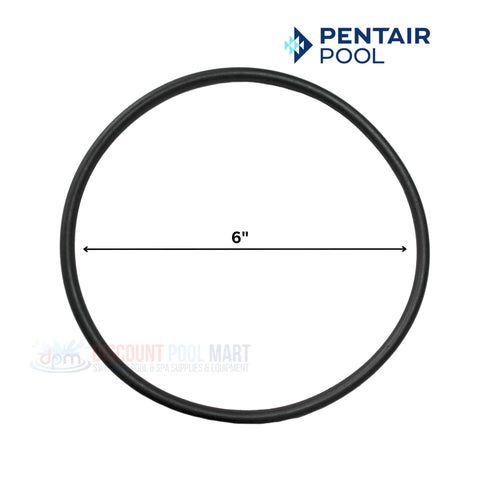

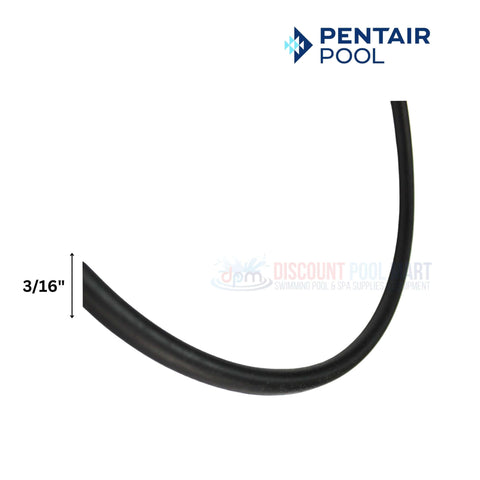

357255
Union O-ring item 15, 2 needed
6020018
