Pentair Purex SMBW 4000 Series SMBW 2060 / 4060 Filter Replacement Parts Diagram
Find your parts diagram
Sticker on the pump body (the part with the basket), not on the motor. Motor labels from Century, A.O. Smith or Regal won't match parts.
Label on the side of the tank near the base. Size is in sq ft, e.g. 420 sq ft = C4030 or CCP420.
Rating plate inside the front access panel. Note the BTU and gas type (NG or LP).
Molded into the body or printed on top. Robotic cleaners: on the power supply.
Still not sure? Call (855) 767-7665 and we'll find it for you.
Having a problem? Pick one to see the parts that usually fix it (optional)
-
Most common fix Pentair Brass Tee For Purex SMBW Filters | 1/4" | 71982$9.99
-

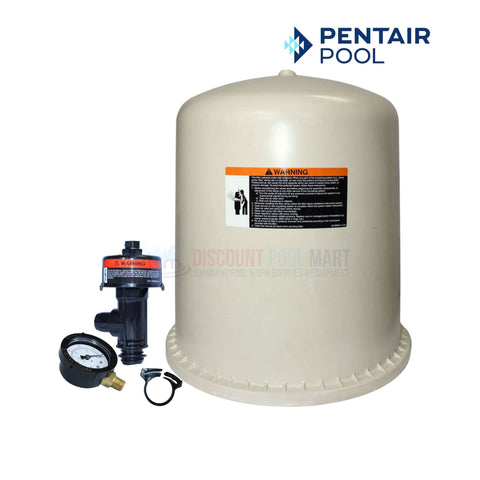

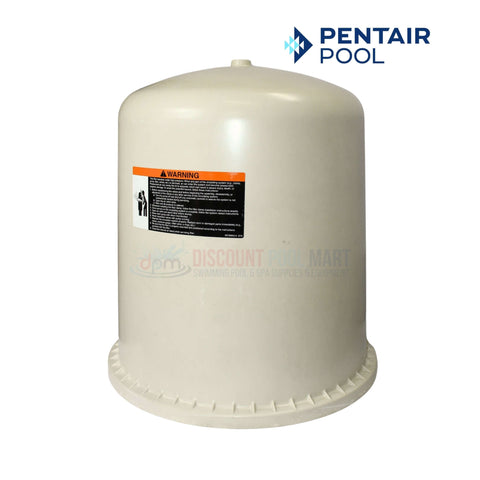

Most common fix 197137 | Pentair SM & SMBW 4060 Filters Tank Lid$529.99Notify me
-
Most common fix Pentair FNS Plus Filter Wing Nut | Tie Rod | 071404Z$0.99
-
$37.99Notify me
-
Most common fix 197020 | Pentair Purex SM & SMBW 4000 Filters Clamp Ring$369.99
-
$39.99
-
Most common fix DPM Air Relief Vent Screen Cap For SMBW Filters$6.99
-
Most common fix Pentair Purex 60 sq. ft DE Filter Unicel Replacement Grids | 8 Grids in Total | Made in USA | FG-1260$215.99
-
Most common fix 075279 | Pentair Purex Filters Vent Tube | 46"$14.99Notify me
-
Most common fix 073270Z | Pentair Purex Filters Manifold | 8 Hole$39.99
-
Most common fix CMP Manifold For Pentair Purex Filters | 8 Hole | 073270Z$39.99
-
Most common fix O-333 | Aladdin Pentair Purex 4000 Tank O-Ring | 071439$18.99
-
Most common fix Pentair Tapered Rotor Valve Seal For SM And SMBW DE Filters$25.99
-
Most common fix 197130 | Pentair Purex SMBW 4000 Series Filters Tank Bottom$479.99Notify me
-
$159.99
-
Most common fix Pentair Stainless Steel Hex Nut | 1/4 - 20$4.99
No parts match.
Pinch or scroll to zoom, drag to move. Tap a dot to see the part.
Recently viewed

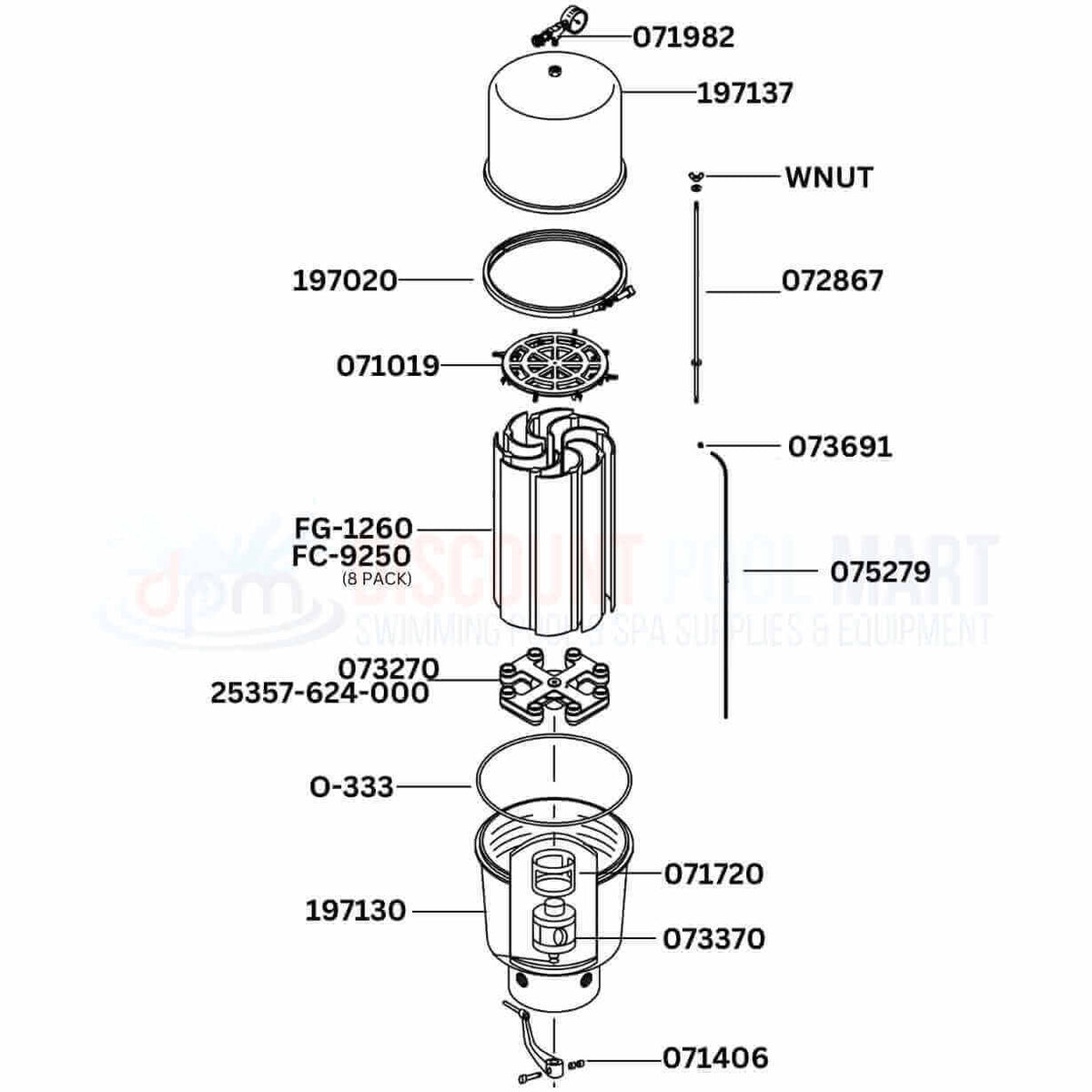

Pentair SMBW 2060 and 4060 Filter Diagram with Replacement Parts for 60 Sq Ft Systems
Use the interactive diagram above to locate the right replacement parts for your Pentair SMBW 2060 or 4060 filter, then explore each product listing for details and in-store availability.
Keep your grid assembly supported with the Pentair 8-Hole Manifold 073270Z, a key component for DE flow and stability.
Swap out damaged filter elements with Pentair 60 Sq Ft DE Filter Grids FG-1260, designed as a full set of 8 for optimal performance.
Restore internal valve operation using the Pentair Holding Wheel 071019Z for SM and SMBW 4000 Series filters.
Maintain air relief functionality with the Air Relief Vent Screen Cap 073691, ideal for keeping your vent line clear of debris.
Find complete Pentair SMBW 2060 and 4060 replacement parts in-store with diagram lookup and trusted local support at Discount Pool Mart.
