Find your parts diagram

Pentair Intelliflo3 VSF Pump Replacement Parts Diagram

Interactive parts diagram

35 parts · 1 with cheaper aftermarket options. Tap a number on the diagram, or search by part number.

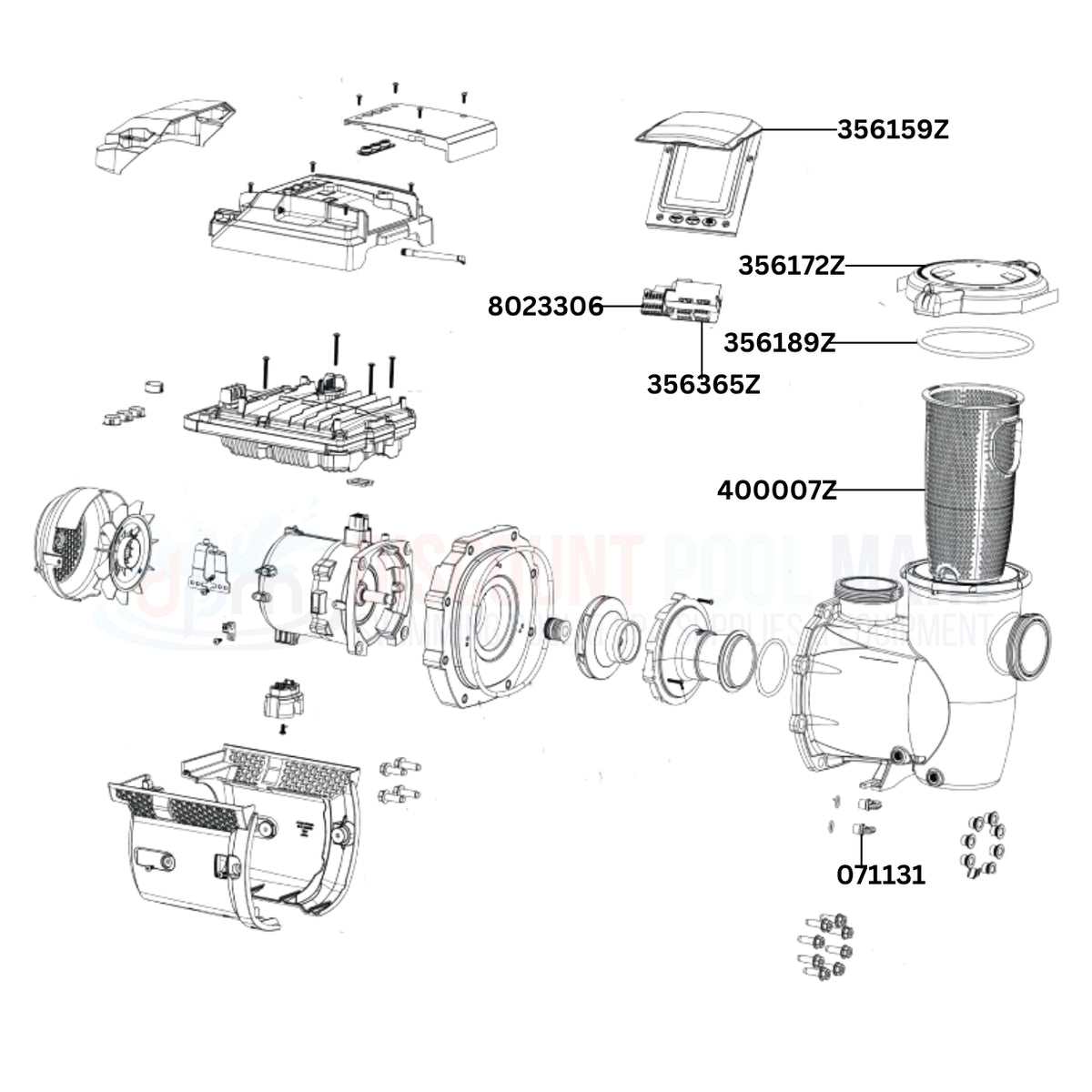

 – exploded view with numbered parts

Scroll or pinch to zoom · drag to move

    • Not sold online Pentair drive cover assembly, IntelliFlo3 VSF (almond 356214Z, black 356349Z) 356214ZCall us and we'll get it for you.
    • Not sold online Pentair field wiring compartment kit, IntelliFlo3 VSF (almond 356096Z, black 356337Z) 356096ZCall us and we'll get it for you.
    • Not sold online Pentair blank controller kit, IntelliFlo3 VSF (almond 356101Z, black 356338Z) 356101ZCall us and we'll get it for you.
    • Not sold online Pentair touchscreen lid, IntelliFlo3 VSF (almond 356099Z, black 356339Z) 356099ZCall us and we'll get it for you.
    • Not sold online Pentair antenna, IntelliFlo3 VSF 356226ZCall us and we'll get it for you.
    • Not sold online Pentair controller screw, IntelliFlo3 VSF (4 needed) 356215ZCall us and we'll get it for you.

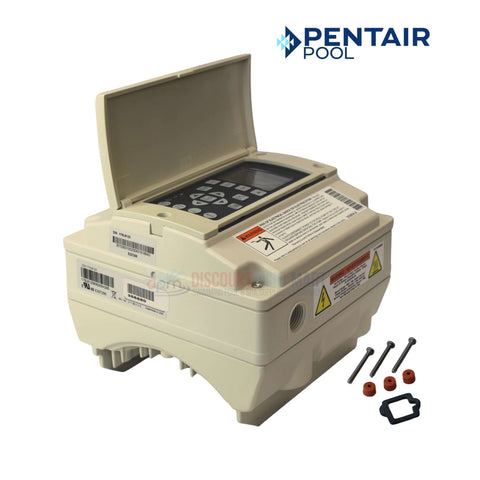

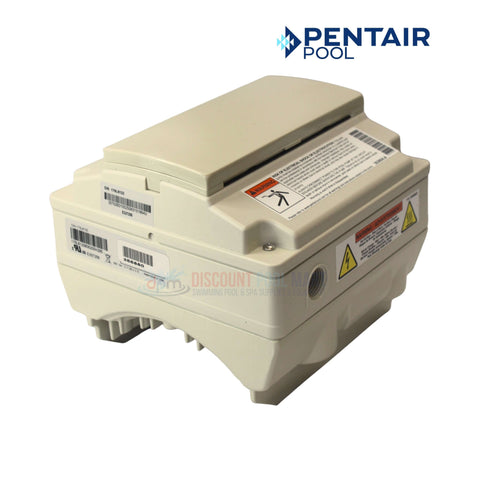

    • Not sold online Pentair drive and drive hardware kit, IntelliFlo3 VSF (356162Z 1.5 HP, 356163Z 3 HP) 356162Z / 356163ZCall us and we'll get it for you.
    • Not sold online Pentair drive hardware kit, IntelliFlo3 VSF 357865Call us and we'll get it for you.
    • Not sold online Pentair 7/8" plug, drive, IntelliFlo3 VSF (3 needed) 356219ZCall us and we'll get it for you.
    • Not sold online Pentair 1" bushing, low voltage, drive, IntelliFlo3 VSF 356320ZCall us and we'll get it for you.
    • Not sold online Pentair motor kit, IntelliFlo3 VSF (356164S 1.5 HP, 356165S 3 HP) 356164S / 356165SCall us and we'll get it for you.
    • Not sold online Pentair motor bracket kit, IntelliFlo3 VSF 356167ZCall us and we'll get it for you.
    • Not sold online Pentair motor foot kit, IntelliFlo3 VSF (almond 356149Z, black 356341Z) 356149ZCall us and we'll get it for you.
    • Not sold online Pentair motor shroud kit, IntelliFlo3 VSF (1.5 HP: almond 357867, black 357868; 3 HP: almond 357869, black 357870) 357867-357870Call us and we'll get it for you.
    • Not sold online Pentair motor fan kit, IntelliFlo3 VSF (356232Z 1.5 HP, 357866Z 3 HP) 356232Z / 357866ZCall us and we'll get it for you.
    • Not sold online Pentair bonding lug, IntelliFlo3 VSF 356166ZCall us and we'll get it for you.
    • Not sold online Pentair motor foot screw, IntelliFlo3 VSF 356221ZCall us and we'll get it for you.
    • Not sold online Pentair motor bolts, IntelliFlo3 VSF (4 needed) 074165ZCall us and we'll get it for you.
    • Not sold online Pentair seal plate kit, IntelliFlo3 VSF (1.5 HP: almond 356090Z, black 356333Z; 3 HP: almond 356091Z, black 356345Z) 356090Z / 356091ZCall us and we'll get it for you.
    • Not sold online Pentair seal plate O-ring, IntelliFlo3 VSF (356148Z 1.5 HP, 356173Z 3 HP) 356148Z / 356173ZCall us and we'll get it for you.
    • Not sold online Pentair shaft seal, IntelliFlo3 VSF (all models) 356210SCall us and we'll get it for you.
    • Not sold online Pentair impeller, IntelliFlo3 VSF (356176Z 1.5 HP, 356177Z 3 HP) 356176Z / 356177ZCall us and we'll get it for you.
    • Not sold online Pentair diffuser, IntelliFlo3 VSF (356155Z 1.5 HP, 356156Z 3 HP) 356155Z / 356156ZCall us and we'll get it for you.
    • Not sold online Pentair diffuser screws, IntelliFlo3 VSF (3 needed) 356213ZCall us and we'll get it for you.
    • Not sold online Pentair diffuser O-ring, IntelliFlo3 VSF 356190ZCall us and we'll get it for you.
    • Not sold online Pentair seal plate-to-strainer pot bolts, IntelliFlo3 VSF (6 needed on 1.5 HP, 8 on 3 HP) 074164ZCall us and we'll get it for you.

Don't see your part? Ask us and we'll find it.

Also fits your Pentair Intelliflo3 VSF Pump

Not shown on the diagram, but made for this pump.

Fit guide

Which IntelliFlo3 VSF part fits your pump?

Check the horsepower on your pump's data label: 1.5 HP or 3 HP. Many wet-end and motor parts differ by size. Part numbers come from Pentair's IntelliFlo3 VSF installation and maintenance guide.

Parts that differ by horsepower

Impeller
356176Z 1.5 HP · 356177Z 3 HP
Diffuser
356155Z 1.5 HP · 356156Z 3 HP
Seal plate O-ring
356148Z 1.5 HP · 356173Z 3 HP
Motor kit
356164S 1.5 HP · 356165S 3 HP
Drive kit
356162Z 1.5 HP · 356163Z 3 HP

Strainer pot & basket

Strainer pot kit 1.5 HP
356174Z almond, 356346Z black
Strainer pot kit 3 HP
356175Z almond, 356347Z black
Basket 1.5 HP
074162Z
Basket 3 HP
400007Z

Same on both sizes

Shaft seal
356210S
Lid O-ring
356189Z

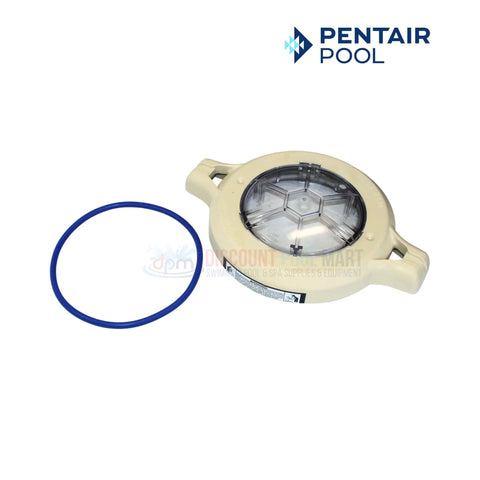

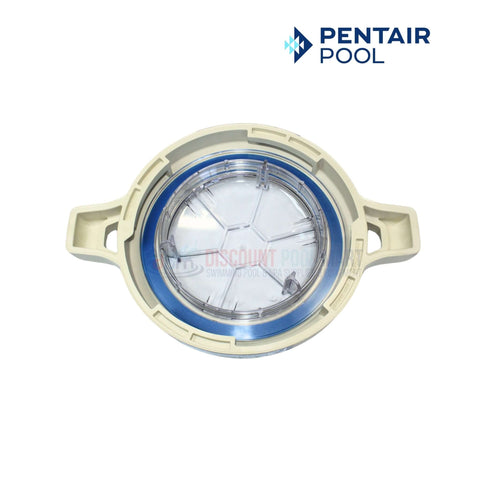

Lid assembly
356172Z almond, 356368Z black
Diffuser O-ring
356190Z
Drain plug
071131Z

Seal kit & unions

Seal kit 1.5 HP
357871
Seal kit 3 HP
357872
Union kit 1.5 HP
351157 O-ring 6020018
Union kit 3 HP
410028 2" / 2.5", 410029 3"
