Pentair IntelliBrite Architectural Series Spa Light Replacement Parts Diagram

Interactive parts diagram

5 parts. Tap a number on the diagram, or search by part number.

 – exploded view with numbered parts

Scroll or pinch to zoom · drag to move

    • Not sold online Pentair IntelliBrite Architectural lens kit (spa) 602176Call us and we'll get it for you.
    • Not sold online Pentair spa light lens gasket kit 79108600ZCall us and we'll get it for you.

Don't see your part? Ask us and we'll find it.

Fit guide

Which Architectural spa light part fits?

Part numbers come from the replacement parts pages of Pentair's IntelliBrite Architectural Series installation guide. 12 V and 120 V spa lights use the same parts.

Pool light or spa light?

Pool light

  • Face ring kit 79110600
  • Wire clamp kit 79111000
  • Lens kit 602168
  • Gasket 620400Z

Spa light

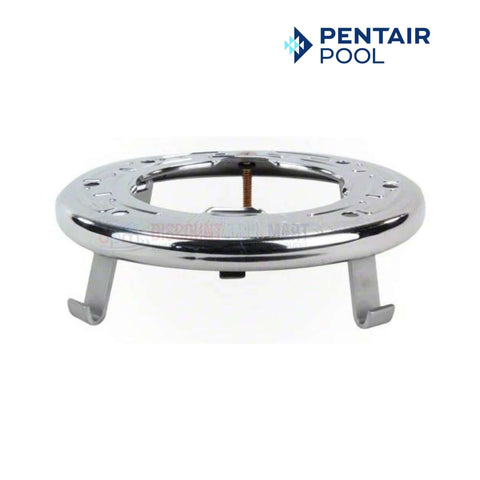

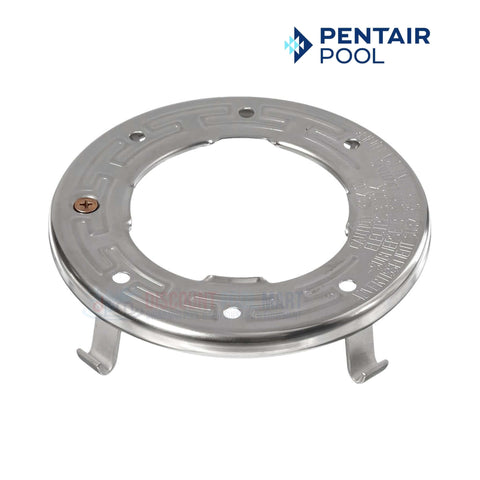

  • Face ring kit 79111600
  • Wire clamp kit 79210400
  • Lens kit 602176
  • Gasket kit 79108600Z

Both use pilot screw 79104800Z (brass) or 619355Z (stainless). Always fit a new gasket and wire clamp when reassembling.
