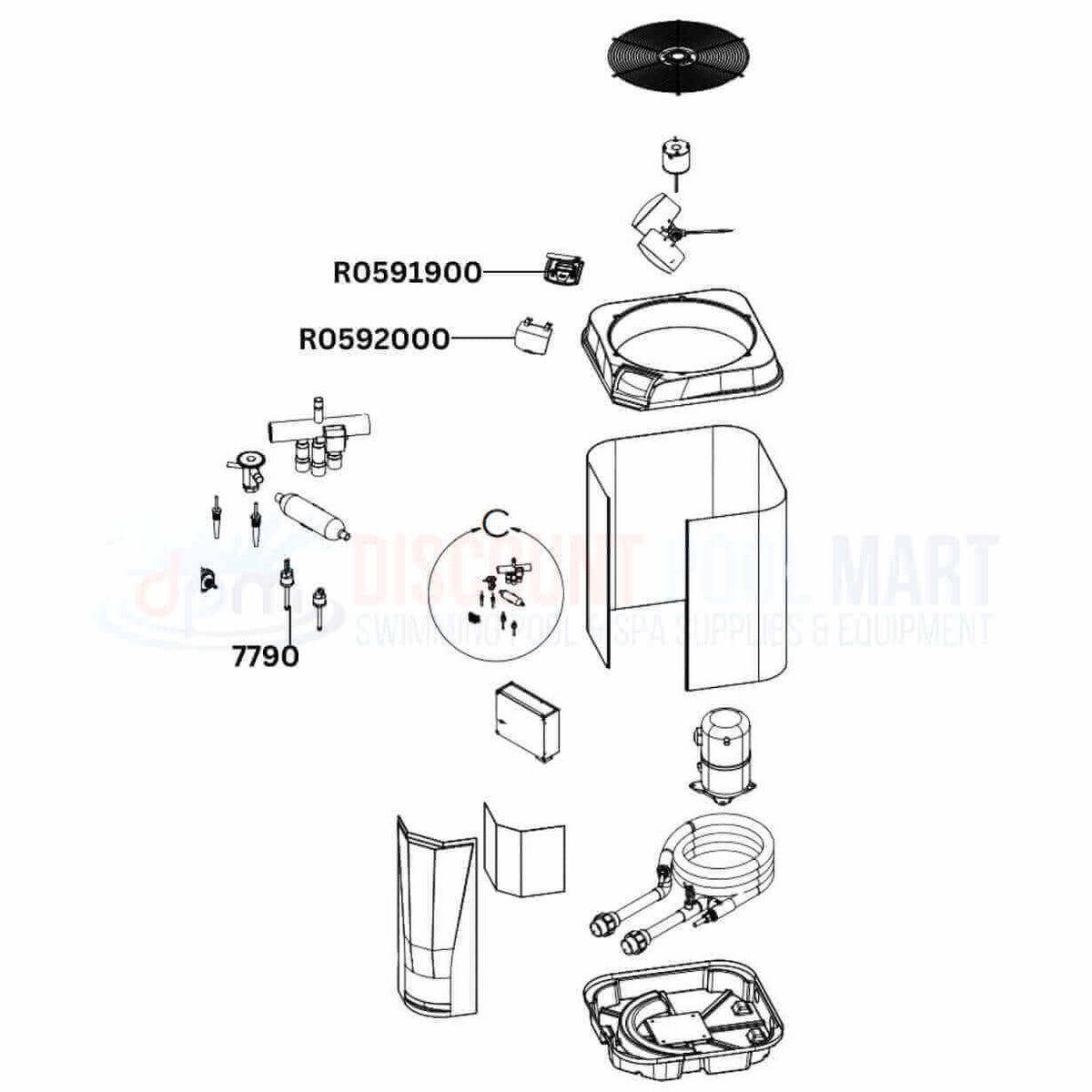

Jandy VersaTemp JRT3000R Heat Pump Replacement Parts Diagram

Interactive parts diagram

25 parts. Tap a number on the diagram, or search by part number.

 – exploded view with numbered parts

Scroll or pinch to zoom · drag to move

    • Not sold online Jandy fan grille R0933900Call us and we'll get it for you.
    • Not sold online Jandy fan motor R0934000Call us and we'll get it for you.
    • Not sold online Jandy fan blade R0934100Call us and we'll get it for you.
    • Not sold online Jandy fan top R0934200Call us and we'll get it for you.
    • Not sold online Jandy evaporator coil / guard, JRT3000R R0934400Call us and we'll get it for you.
    • Not sold online Jandy compressor, JRT3000R - CP compressor R0934700, LG compressor R1009800 (see label next to run capacitor; Canada: R0934701 / R1009801) R0934700Call us and we'll get it for you.
    • Not sold online Jandy base R0934800Call us and we'll get it for you.
    • Not sold online Jandy electrical box cover with hardware R0934900Call us and we'll get it for you.
    • Not sold online Jandy front panel, JRT3000R R0935100Call us and we'll get it for you.
    • Not sold online Jandy filter drier (bi-flow version: R0935300) R0935200Call us and we'll get it for you.
    • Not sold online Jandy thermal expansion valve, JRT3000R R0935500Call us and we'll get it for you.
    • Not sold online Jandy air temperature sensor R0935600Call us and we'll get it for you.
    • Not sold online Jandy high pressure switch R0935700Call us and we'll get it for you.
    • Not sold online Jandy low pressure switch R0935800Call us and we'll get it for you.
    • Not sold online Jandy water pressure switch R0935900Call us and we'll get it for you.
    • Not sold online Jandy reversing valve (optional) R0936000Call us and we'll get it for you.
    • Not sold online Jandy transformer R0936100Call us and we'll get it for you.
    • Not sold online Jandy power interface PCB R3009200Call us and we'll get it for you.
    • Not sold online Jandy fan capacitor R0936300Call us and we'll get it for you.
    • Not sold online Jandy run capacitor, 1 phase - JRT3000R with CP compressor R0936200, with LG compressor R1009900 R0936200Call us and we'll get it for you.
    • Not sold online Jandy contactor, 1 phase R0936400Call us and we'll get it for you.
    • Not sold online Jandy anchor bracket set R0936600Call us and we'll get it for you.

Don't see your part? Ask us and we'll find it.

Also fits your Jandy VersaTemp JRT3000R Heat Pump

Not shown on the diagram, but made for this pump.

Fit guide

Which VersaTemp part fits your JRT3000R?

Item and part numbers come from the Jandy VersaTemp JRT Series Heat Pump Installation and Operation Manual (H0744700), section 9. The drawing shows a JRT2000R; size parts for the JRT3000R are listed here.

JRT3000R size parts

Evaporator coil / guard
R0934400
Front panel
R0935100
Thermal expansion valve
R0935500
Condenser / heat exchanger not drawn; Fluidra 2026 catalog
R0936800

CP or LG compressor? Check the label next to the run capacitor

CP compressor

Compressor R0934700 (Canada R0934701), run capacitor R0936200, compressor plug R1009200.

LG compressor

Compressor R1009800 (Canada R1009801), run capacitor R1009900, compressor plug R1009201.

Shared parts

User interface
R0591900
Interface cover
R0592000
Water temperature sensor
7790
Universal union, buttress set not shown
R0472700
Schrader valves, 2 pack not shown
R0937100
Compressor blanket not shown
R0951700
