Pentair AmerLite Underwater Incandescent Pool Light Replacement Parts Diagram

Interactive parts diagram

7 parts. Tap a number on the diagram, or search by part number.

 – exploded view with numbered parts

Scroll or pinch to zoom · drag to move

    • Not sold online Pentair face ring, large plastic, SS only, grey (79212111 black) 79212165Call us and we'll get it for you.
    • Not sold online Pentair uni-tension wire clamp assembly 79111000Call us and we'll get it for you.
    • Not sold online Pentair gasket for 8-3/8" lens 79101600ZCall us and we'll get it for you.
    • Not sold online Pentair floodlamp, medium base (100W/300W 12V; 300W/400W/500W 120V) 79101800Call us and we'll get it for you.

Don't see your part? Ask us and we'll find it.

Also fits your Pentair AmerLite Underwater Incandescent Pool Light

Not shown on the diagram, but made for this pump.

Fit guide

Which AmerLite part fits?

Part numbers come from Pentair's AmerLite lights replacement parts list.

Floodlamp (item 8)

100 W, 12 V medium base
79101800
300 W, 12 V
79101900
300 W, 120 V
79107600
400 W, 120 V
79102200
500 W, 120 V
79102100

Lens and face ring

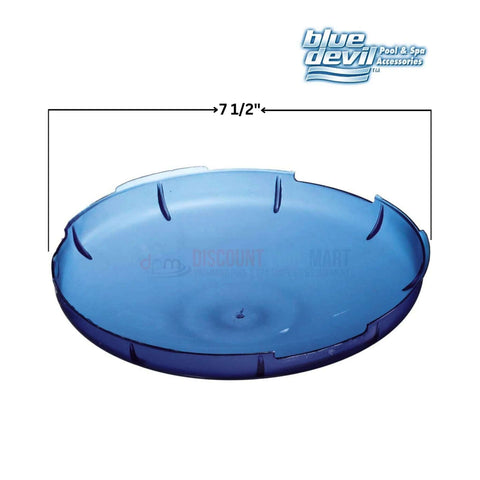

Lens, clear 8-3/8" tempered, item 6
79100100

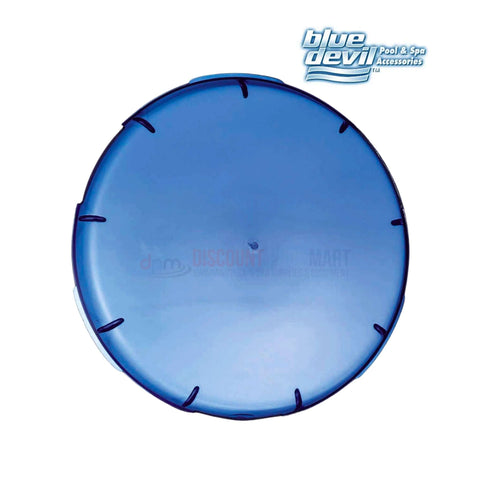

Lens, medium blue 8-3/8" tempered
79100200
Lens gasket item 7
79101600Z
Face ring assembly, SS item 4
79110600
Face ring, large plastic grey / black, item 2
79212165 / 79212111

Pilot screw (item 3)

Brass, captive gum washer
79104800Z
Stainless steel
619355Z
